Spacial SF external fixing side panels - 1200x400 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSet SF |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 13.5 kg |
Shipping & availability
When can NSY2SP124 be shipped?
NSY2SP124 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSY2SP124 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSY2SP124 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSY2SP124, subject to availability and destination.

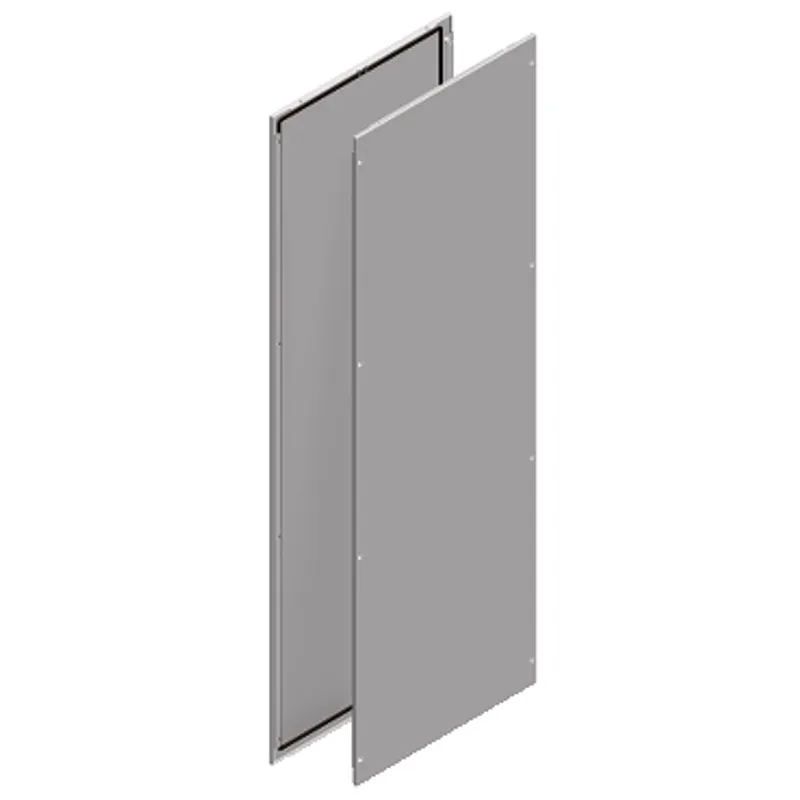

Side panel made from grey steel (RAL 7035) for Spacial SF enclosures The nominal width is 400mm The nominal height is 1200mm Fixed by screws of type captive from the outside of enclosure location on the sides of enclosure The kit is made up of fixing elements and 2 side panels Anti-corrosion protection is ensured by an epoxy-polyester powder coating The product is to be used for multi-purpose applications
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Side panel |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Sides of enclosure |
| Quantity per set | Set of 1 |
| Range compatibility | PanelSeT SF |
| Device composition | Fixing elements, 2 side panel |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws - screw type captive - from the outside of enclosure location |
| Height | Nominal: 1200 mm |
| Width | Nominal: 400 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 38.500 cm |
| Package 1 Length | 120.000 cm |
| Package 1 Weight | 13.500 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 78.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 122.000 cm |
| Package 2 Weight | 274.500 kg |
| Warranty | 18 months |
