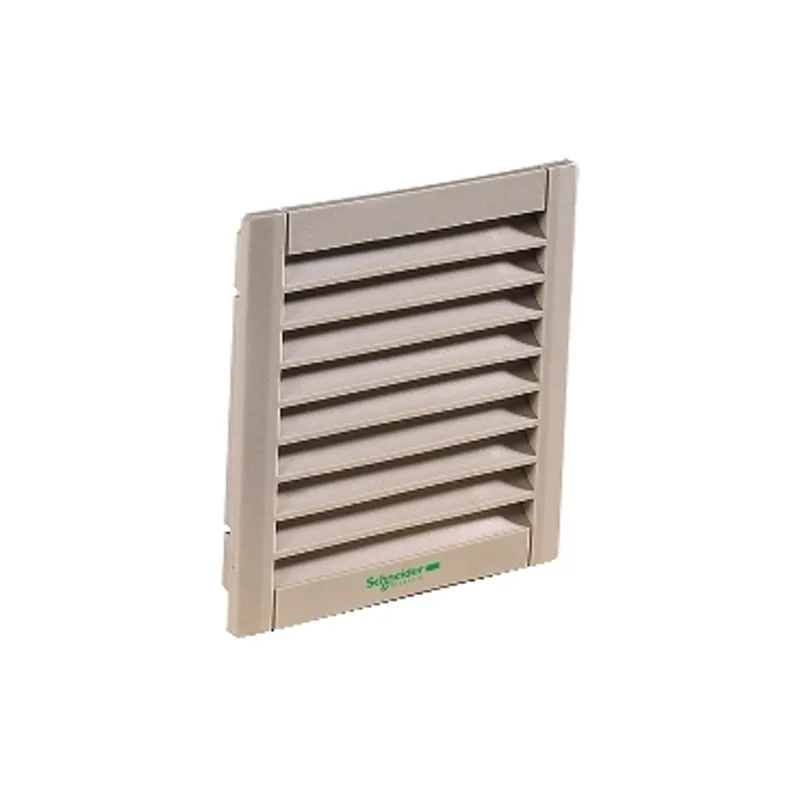

Outlet grille CEM 56
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CA |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 262 kg |
Shipping & availability
When can NSY17996 be shipped?
NSY17996 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSY17996 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSY17996 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSY17996, subject to availability and destination.
Outlet grille 150 x 150mm made from ABS (acrylonitrile butadiene-styrene) for ClimaSys CV EMC fan The kit is made of 1 outlet grille for front, 1 metal frame for covering the plastic element, 1 metal grille for attached to the frame and 1 gasket for between the perimeter of the grille and the enclosure The external width is 150mm Ingress protection rating (according to IEC 60529) is IP54 Fixing by screws or by clips Cut-out dimensions is 126,5 x 126,5mm Painted in outlet grille: grey (RAL 7035)
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | ClimaSys CV EMC fan |
| Product or component type | Outlet grille |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys EMC ventilation system |
| fixing mode | By screws, Clipped |
| Device composition | 1 outlet grille: front, 1 metal frame: covering the plastic element, 1 metal grille: attached to the frame, 1 gasket: between the perimeter of the grille and the enclosure |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Colour | Outlet grille: grey (RAL 7035) |
| Cut-out dimensions | 126.5 x 126.5 mm |
| Height | External: 150 mm |
| Width | External: 150 mm |
| Depth | External : 31 mm |
| IP degree of protection | IP54 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 15.500 cm |
| Package 1 Length | 16.000 cm |
| Package 1 Weight | 262.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 26.500 cm |
| Package 2 Width | 31.000 cm |
| Package 2 Length | 49.000 cm |
| Package 2 Weight | 6.550 kg |
| Unit Type of Package 3 | PAM |
| Number of Units in Package 3 | 525 |
| Package 3 Height | 108.000 cm |
| Package 3 Width | 100.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 150.550 kg |
| Warranty | 18 months |
