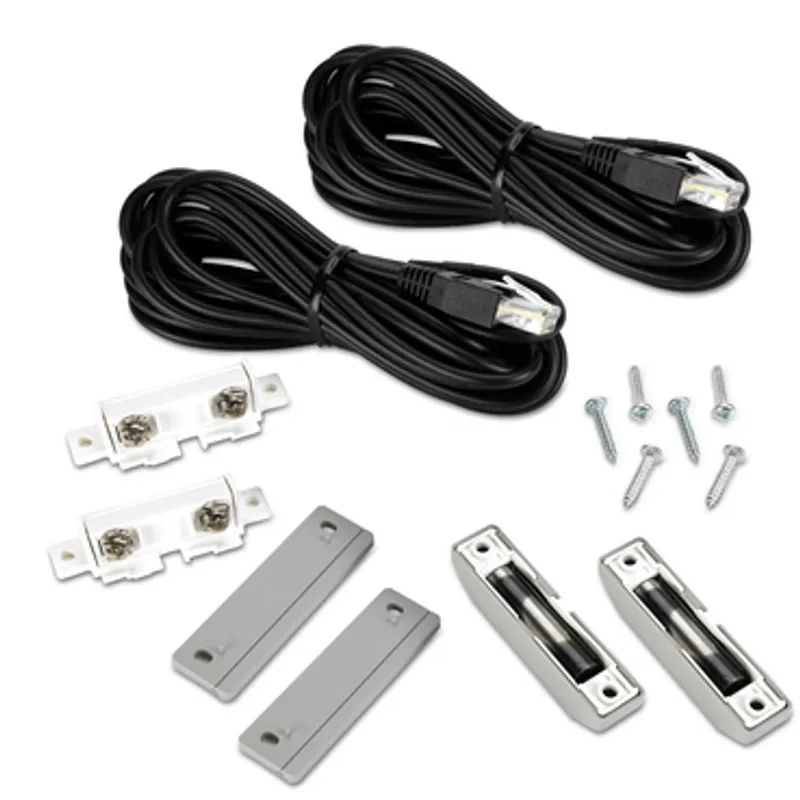

Wired, Sensor, NetBotz, 2 Door Switch Sensor, 12ft.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | NetBotz™ |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.37 kg |
Shipping & availability
When can NBES0303 be shipped?
NBES0303 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBES0303 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBES0303 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBES0303, subject to availability and destination.
Universal Sensor that monitors access to NetShelter SX Enclosures. Manage intentional or accidental access events that could pose a significant threat to the company's IT infrastructure Compatible with all current and legacy generation NetBotz appliances and pods includes 12 ft of cable length for flexible installation applications.
Specifications
Specifications
| Presentation | Universal Sensor that monitors access to NetShelter SX Enclosures. |
| Lead time | Usually Ships within 2 Weeks |
| Product or component type | Sensor |
| Range of product | Netbotz |
| Provided equipment | Cable ties |
| Product compatibility | 4 - 20 mA sensor, Rack sensor pod 150, Room sensor pod 155, Sensor pod 120, NetBotz USB camera pod, Pelco IP110-CHV9 |
| Display resolution | Up to 640x480 |
| Connections supported | Alarm beacon 1, PS/2 mini-DIN |
| Universal sensor supported | Door contact, Humidity, Smoke, Temperature |
| Number of universal sensor ports | 2 |
| Number of sensor pods supported | 0 |
| Number of universal sensors supported | 0 |
| Sensor humidity | 10…90 % +/- 5 % non-condensing RH |
| Number of supported camera | 4 for networked, 4 |
| Measurement range | 1.6...48.8 °C: +/- 1 °C, 35...120 °F: |
| Height | 1.9 cm |
| Width | 14.6 cm |
| Depth | 18.7 cm |
| Net weight | 0.37 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Number of port | 0 |
| Ambient air temperature for operation | 0…45 °C |
| Operating altitude | 0...10000 ft |
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -15…65 °C |
| Storage altitude | 0…15240 m |
| Storage Relative Humidity | 0…95 % |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.8 cm |
| Package 1 Width | 23.2 cm |
| Package 1 Length | 16.4 cm |
| Package 1 Weight | 0.489 kg |
| Warranty (in months) | 24 |
