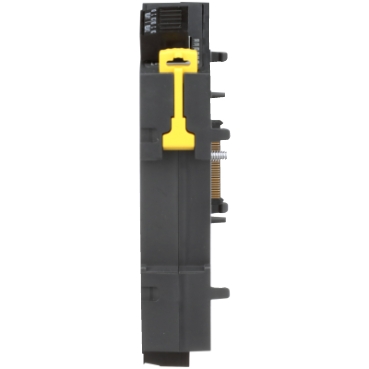

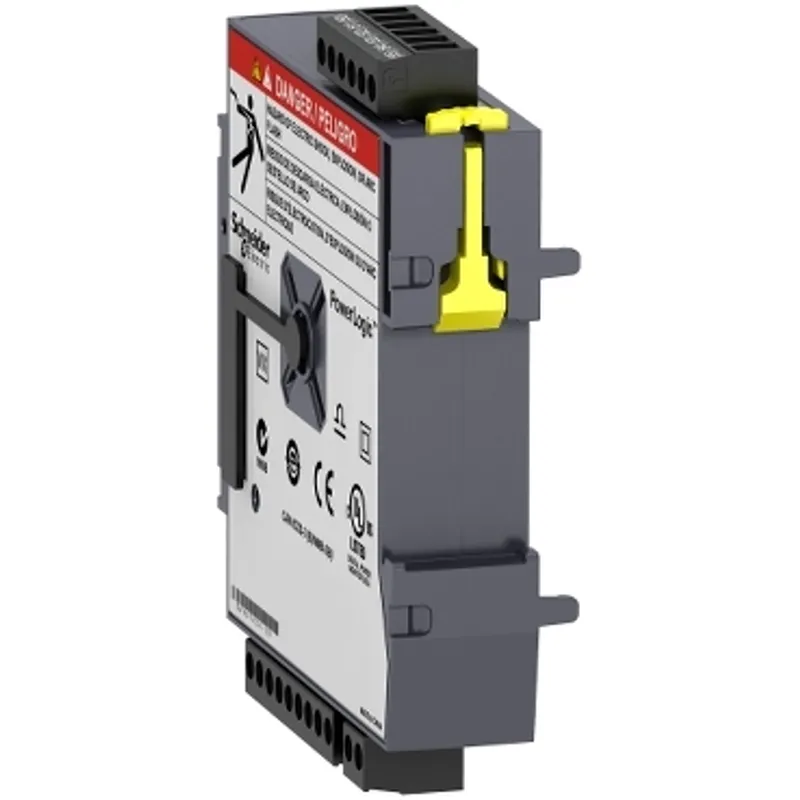

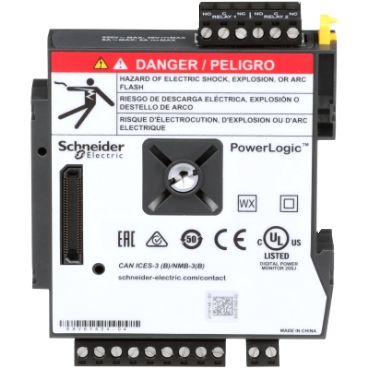

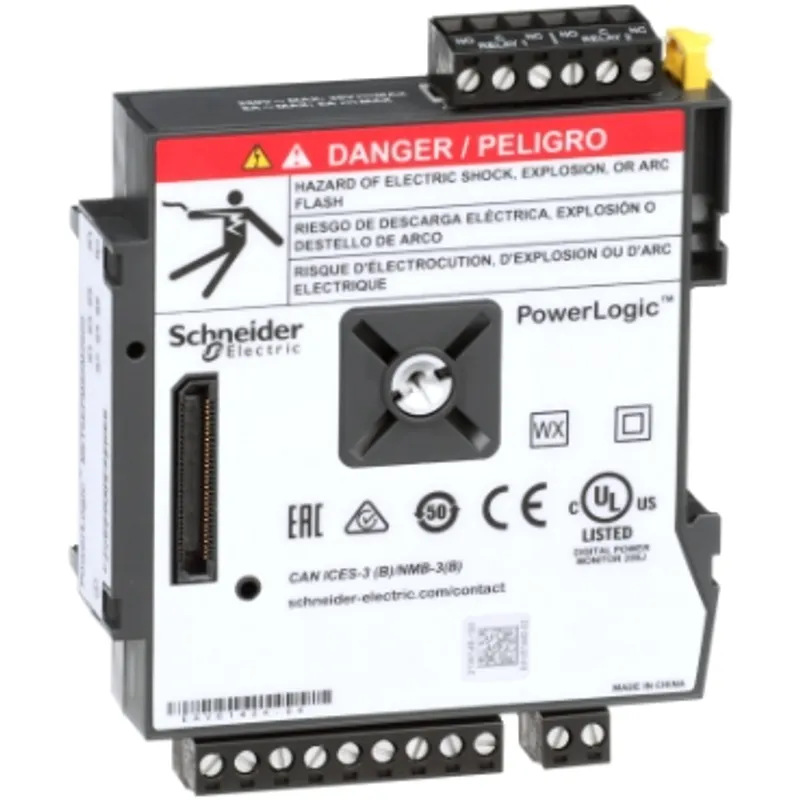

PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PowerLogic™ PM8000 Power Quality Meters |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.14 kg |
Shipping & availability
When can METSEPM89M2600 be shipped?
METSEPM89M2600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up METSEPM89M2600 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for METSEPM89M2600 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for METSEPM89M2600, subject to availability and destination.

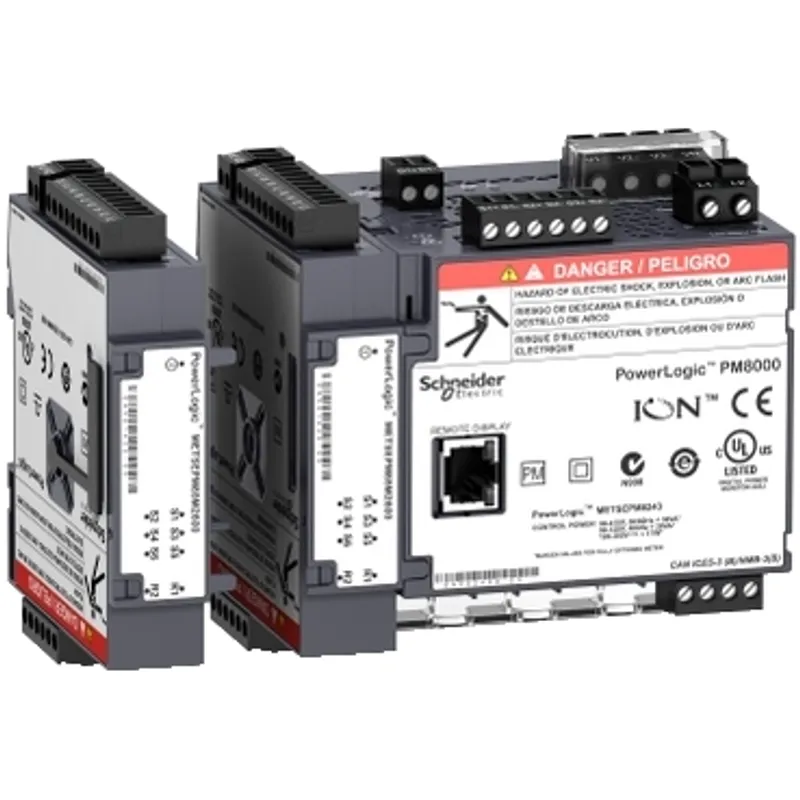

Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional digital inputs and relay outputs. This digital module provides 6 digital inputs that support 30VAC or 60VDC. The digital inputs can be excited by the provided wetting source or a user provided external source. Plus 4 relay outputs to provide status indication and to provide control operations. The relay outputs support loads up to 8A at 240VAC. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.
Specifications
Specifications
| Range | PowerLogic |
| Product or component type | I/O module |
| Device application | Optional expansion module |
| Range compatibility | PowerLogic PowerLogic PM8000, PowerLogic PowerLogic ION7400, PowerLogic PowerLogic ION9000 |
| Number of outputs | 2 form C relay output |
| Number of inputs | 6 digital |
| Width | 22 mm |
| Depth | 90.5 mm |
| Height | 90.5 mm |
| Net weight | 140 g |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| IP degree of protection | IP30 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.800 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 223.500 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.612 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 65.800 kg |
| Warranty (in months) | 18 |
