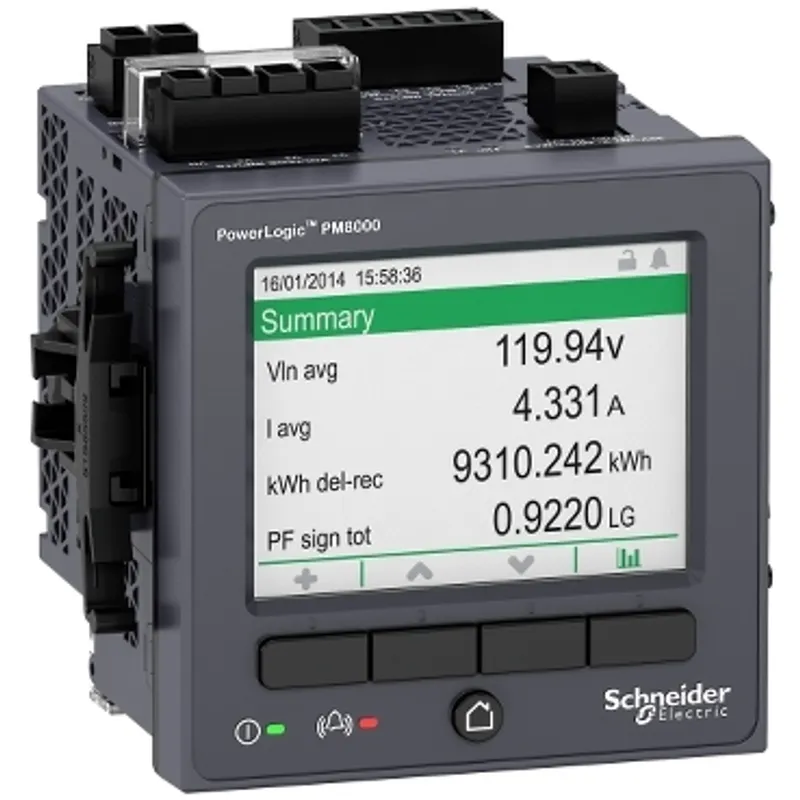

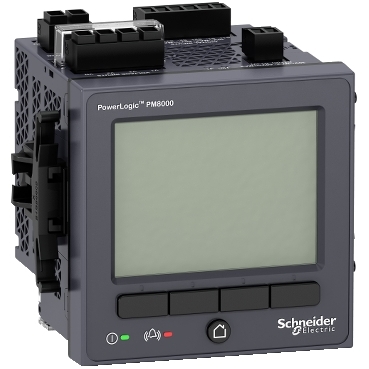

Power quality meter, PowerLogic PM8000, Advanced, integrated display, 512 MB, 512 s/c

Name: Power quality meter, PowerLogic PM8000, Advanced, integrated display, 512 MB, 512 s/c
Brand: Schneider Electric
SKU: METSEPM8340

MPN: METSEPM8340 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PowerLogic™ PM8000 Power Quality Meters
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.58 kg

Shipping & availability

When can METSEPM8340 be shipped?

METSEPM8340 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up METSEPM8340 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for METSEPM8340 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for METSEPM8340, subject to availability and destination.

Specifications

Range	PowerLogic
Product name	PowerLogic PM8000
Product or component type	Power meter
Device short name	PM8340
Market segment	Buildings large building cost management: billing: sub feeder, Buildings small building network management: main incomer, Buildings medium building network management: main incomer, Buildings large building network management: main incomer, Buildings large building network management: sub feeder, Buildings multi-site network management: main incomer, Buildings multi-site network management: sub feeder, Data center network management: main incomer, Data center small building network management: sub feeder, Healthcare large building network management: main incomer, Healthcare multi-site network management: sub feeder, Industry multi-site network management: main incomer, Industry network management: sub feeder, Utility network management: sub feeder
model type	Advanced
Power quality analysis	Conforming to EN 50160: 2010 compliance report, conforming to IEEE 519: 2014 compliance report, conforming to IEC 61000-4-30: class A power quality measurement, up to the 63rd harmonic, conforming to IEC 61000-4-15 harmonic distortion, conforming to EN 50160: 2010 waveform capture, conforming to IEEE 519: 2014 voltage sag and swell detection, programmablity (logic and math functions), conforming to IEC 62586 power quality monitoring, disturbance direction detection, conforming to IEC 61000-4-15 flicker, rapid voltage change
Device application	Power monitoring, WAGES metering
Type of measurement	Current per phase, rms, Voltage, Frequency total, Active and reactive power total, Apparent power total, Power factor total, Active and reactive power per phase, rms, Apparent power per phase, rms, Power factor per phase, rms
supply voltage	90...415 V AC 45...65 Hz +/- 10 %, 110...415 V DC +/- 10 %
Network frequency	50 Hz, 60 Hz
[In] rated current	1 A, 5 A, 10 A
Poles description	3P + N, 3P, 1P + N
Power consumption in VA	16 VA at 230 V AC
Display type	Colour TFT LCD
Display resolution	320 x 240 pixels QVGA
Sampling rate	512 samples/cycle
Measurement current	50…10000 mA
Analogue input type	Voltage (impedance 5 MOhm), Current (impedance 0.3 mOhm)
Measurement voltage	57…400 V AC 42...69 Hz between phase and neutral, 100…690 V AC 42...69 Hz between phases
Frequency measurement range	42…69 Hz
Number of inputs	3 digital 30 V AC, 3 digital 60 V DC
Measurement accuracy	Current +/- 0.1 %, Voltage +/- 0.1 %, Active energy +/- 0.2 %
Accuracy class	Class 0.2S active energy conforming to IEC 62053-22, Class 0.2 active energy conforming to ANSI C12.20, Class 0.2 active power conforming to IEC 61557-12, Class 0.5S reactive energy conforming to IEC 62053-24, Class 0.5 power factor conforming to IEC 61557-12, Class 0.2 voltage conforming to IEC 61557-12, Class 0.2 current conforming to IEC 61557-12
Number of outputs	1 pulse
Information displayed	Voltage, Current, Frequency, Power, Energy consumption, Harmonic distortion
Communication port protocol	Modbus RTU at 115 kbauds - 2-wire, ION at 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IP, Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s, RSTP 801.1d 2004
Communication port support	ETHERNET, Screw terminal block: RS485
Communication network type	IPv6 (internet protocol)
Data recording	Min/max of instantaneous values, Waveform logs, Sequence of event recording, Time stamping, Alarm logs, Trending/forecasting, Sag and swell logs, Harmonics logs, GPS synchronisation, Data logs, Event logs, 64 data recorders
Memory capacity	512 MB
Web services	Customizable home page, File upload/download via FTP, File upload/download via SFTP, Web server, Alarm notification by e-mail, Viewing of captured waveform (FTP), Viewing of captured waveform (web), HTTPS server
Communication service	SMTP e-mail notification, RSTP support, NTP time synchronization, DHCP, PTP time synchronization
Cybersecurity	Enable/disable communication ports, Password protection, Syslog protocol support, Robust security logs, Port hardening
Mounting mode	Flush-mounted
Mounting support	Framework
Installation category	III
Safety Construction	III400…690 V conforming to IEC 61010-1:ed. 3, III400…690 V conforming to EN 61010-1:ed. 3, III347…600 V conforming to UL 61010-1:ed. 3, III347…600 V conforming to CSA C22.2 No 61010-1:ed. 3
Standards	IEC 61557-12, IEC 62052-11, IEC 62053-24, IEC 62053-22, IEEE 1588, IEC 62586-2, IEC 61326-1
Product certifications	CE, CULus, N998
Width	96 mm
Depth	77.5 mm
Height	96 mm
Net weight	581 g
Electromagnetic compatibility	Electrostatic discharge conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4, Surge immunity test conforming to IEC 61000-4-5, Conducted RF disturbances conforming to IEC 61000-4-6, Magnetic field at power frequency conforming to IEC 61000-4-8, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11, Immunity to impulse waves conforming to IEC 61000-4-12, Conducted and radiated emissions (2...150 Hz) conforming to EN 55022, Conducted and radiated emissions conforming to EN 55011, Conducted and radiated emissions conforming to FCC part 15, Conducted and radiated emissions conforming to ICES-003, Conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579, Surge withstand conforming to IEEE C37.90.1
IP degree of protection	IP54 front: conforming to IEC 60529, IP30 body: conforming to IEC 60529
Relative humidity	5…95 %
Ambient air temperature for operation	-25…70 °C
Ambient air temperature for storage	-40…85 °C
Operating altitude	3000 m
Compatibility code	PM8240
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	13.900 cm
Package 1 Width	14.300 cm
Package 1 Length	18.900 cm
Package 1 Weight	858.000 g
Warranty (in months)	18
