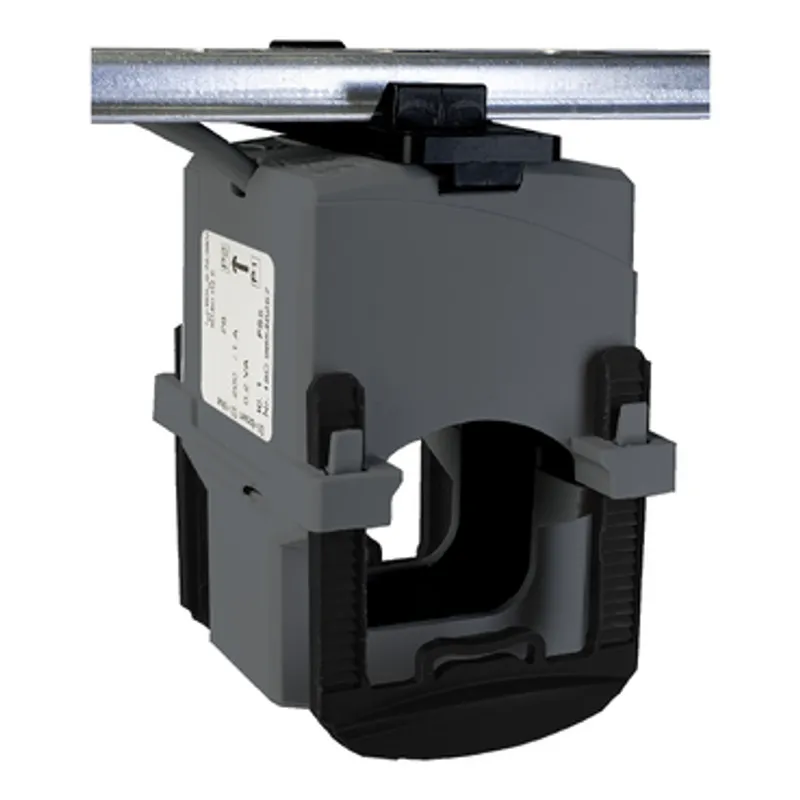

PowerLogic Split Core Current Transformer - Type HA, for cable - 0150A / 5A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PowerLogic™ Current Transformers |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.31 kg |
Shipping & availability
When can METSECT5HA015 be shipped?
METSECT5HA015 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up METSECT5HA015 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for METSECT5HA015 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for METSECT5HA015, subject to availability and destination.
This current transformer, standard for cable, has a line rated current of 150 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 18.4 mm. Burden and accuracy class as follows: class 1 maximum power: 1 VA.
Specifications
Specifications
| Range | PowerLogic |
| Product name | CT |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| Accuracy class | Class 1 at 1 VA |
| [In] rated current | 150 A |
| Current transformer type | Standard for cable, Split core |
| Current transformer ratio | 150/5 |
| [Ith] conventional free air thermal current | 180 A |
| Maximum safety factor | 5 |
| Permissible current | 9000 A during 1 s |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode | Clip-on |
| Width | Outside: 49 mm |
| Height | Outside: 80.1 mm |
| Depth | 59 mm |
| Diameter | 18.4 mm inner: |
| Electrical insulation class | Class E |
| Cable outer diameter | 18.4 mm |
| Connections - terminals | Cable 2 cable(s) 0.5…1.5 mm² 0.5 m |
| Standards | DIN EN 60044-1, DIN EN 61869-1, DIN EN 61869-2, VDE 0414 |
| Ambient air temperature for operation | -5…50 °C |
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.0 cm |
| Package 1 Width | 7.0 cm |
| Package 1 Length | 7.0 cm |
| Package 1 Weight | 310.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.216 kg |
| Warranty (in months) | 18 |
