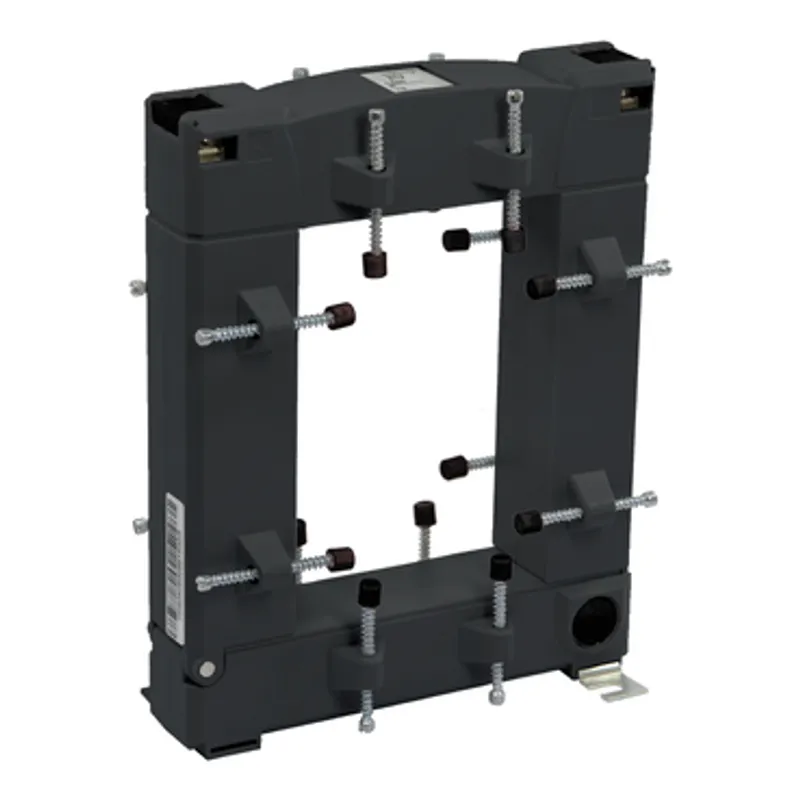

PowerLogic Split Core Current Transformer - Type GG, for bar - 0800A / 5A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PowerLogic™ Current Transformers |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.49 kg |
Shipping & availability
When can METSECT5GG080 be shipped?
METSECT5GG080 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up METSECT5GG080 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for METSECT5GG080 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for METSECT5GG080, subject to availability and destination.
This current transformer, standard for busbar, has a line rated current of 800 A and a secondary current rating of 5 A. This current transformer do have a 85 mm x 125 mm opening. Compatible with a single output for bar: 80 mm x 120 mm. Burden and accuracy class as follows: class 0.5 maximum power: 2.5 VA.
Specifications
Specifications
| Range | PowerLogic |
| Product name | CT |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 2.5 VA |
| [In] rated current | 800 A |
| Current transformer type | Standard for busbar, Split core |
| Current transformer ratio | 800/5 |
| [Ith] conventional free air thermal current | 800 A |
| Maximum safety factor | 5 |
| Permissible current | 48000 A during 1 s |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode | By screws |
| Mounting support | DIN rail, Fastened onto a surface with screws |
| Width | Outside: 155 mm, Inner: 85 mm |
| Height | Outside: 198.15 mm, Inner: 125 mm |
| Depth | 58 mm |
| Electrical insulation class | Class E |
| Opening of bars | 80 x 120 |
| Standards | VDE 0414, DIN 42600-2, DIN EN 61869-1, DIN EN 61869-2 |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.0 cm |
| Package 1 Width | 6.5 cm |
| Package 1 Length | 20.0 cm |
| Package 1 Weight | 1.486 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 12.37 kg |
| Warranty (in months) | 18 |
