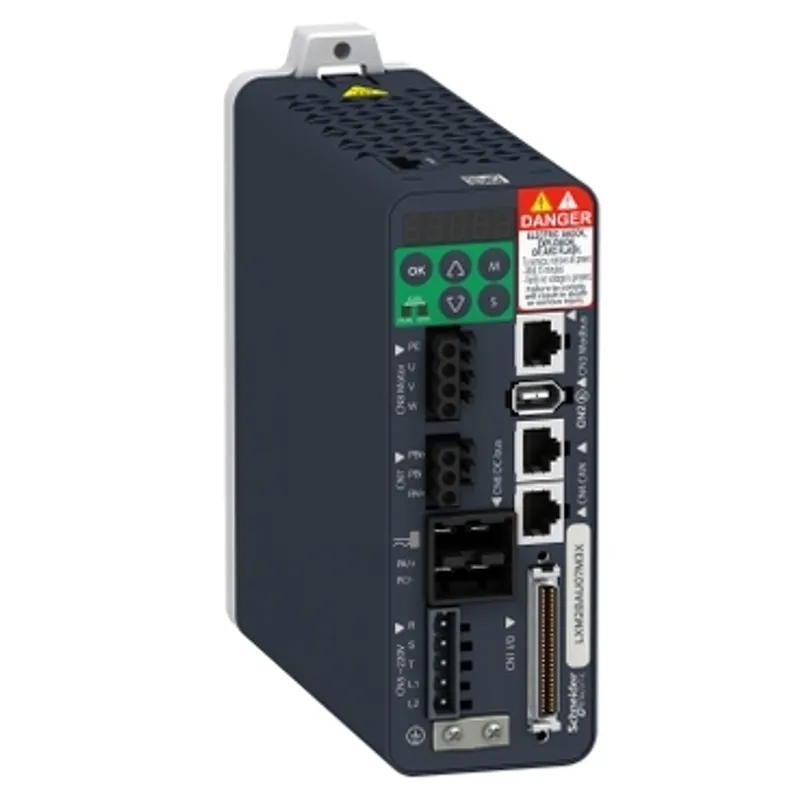

motion servo drive, Lexium 28, single and three phase, 200 to 240V, 50W

Name: motion servo drive, Lexium 28, single and three phase, 200 to 240V, 50W
Brand: Schneider Electric
SKU: LXM28AUA5M3X

MPN: LXM28AUA5M3X · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 28 & Motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1 kg

Shipping & availability

When can LXM28AUA5M3X be shipped?

LXM28AUA5M3X is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXM28AUA5M3X in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXM28AUA5M3X and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXM28AUA5M3X, subject to availability and destination.

Specifications

Range of product	Lexium 28
Device short name	LXM28A
Product or component type	Motion servo drive
Format of the drive	Compact housing
Line current	0.8 A 262.8 % at 220 V, single phase, 0.8 A 227 % at 220 V, three phase
Network number of phases	1, 3
[Us] rated supply voltage	200...240 V (- 10...15 %) for three phase, 200...240 V (- 20...15 %) for single phase
Supply voltage limits	200…255 V three phase, 170…255 V single phase
Supply frequency	50/60 Hz - 5...5 %
Network frequency	47.5...63 Hz
EMC filter	Without EMC filter
Continuous output current	0.64 A at 16 kHz
Output current 3s peak	2 A at 220 V
Continuous power	50 W at 220 V
Nominal power	0.05 kW at 220 V 16 kHz
Switching frequency	16 kHz
Overvoltage category	III
Maximum leakage current	1.3 mA
Output voltage	<= power supply voltage
Electrical isolation	Between power and control
Type of cable	Shielded motor cable (temperature: 0…55 °C) copper
Electrical connection	Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (L1-L2), Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (R, S, T), Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (U, V, W, PE), Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (PA/+, PBe)
Discrete input number	8 programmable (CN1), 1 pulse train input (PTI) (CN1), 2 fast capture (CN1), 1 safety function STO (CN9)
Discrete input voltage	24 V DC for logic
Discrete input logic	Positive or negative (CN1)
Discrete output number	5 logic output (CN1) at 12...24 V DC, 1 pulse train output (PTO) (CN1)
Discrete output voltage	12...24 V DC
Discrete output logic	Positive or negative (CN1)
Analogue input number	2
Absolute accuracy error	0.1 %
Analogue input type	V_REF voltage analog input: - 10...10 V, impedance: 10 kOhm, resolution: 14 bits, T_REF voltage analog input
Control signal type	Servo motor encoder feedback CN2
Protection type	Against reverse polarity: inputs signal, Against short-circuits: outputs signal, Overcurrent: motor, Overvoltage: motor, Undervoltage: motor, Overheating: motor, Overload: motor, Overspeed: motor
Safety function	STO (safe torque off), integrated
Safety level	SIL 2 conforming to IEC 61800-5-2: 2007, SIL 2 conforming to IEC 61508-1: 2010, PL d/category 3 conforming to ISO 13849-1: 2008, SIL 2 conforming to ISO 13849-1: 2009/AC, SIL 2 conforming to IEC 60204-1: 2006, SIL 2 conforming to IEC 60204-1: 2009/A1, SIL 2 conforming to IEC 60204-1: 2010/AC, SIL 2 conforming to IEC 62061: 2012
Communication interface	CANopen, integrated, CANmotion, integrated
Connector type	RJ45 (CN4) for CANopen, CANmotion
Method of access	Slave
Transmission rate	250 kbit/s for bus length of 100…250 m for CANopen, CANmotion, 500 kbit/s for bus length of 4…100 m for CANopen, CANmotion, 1 Mbit/s for bus length of 4 m for CANopen, CANmotion
Number of addresses	1…127 for CANopen, CANmotion
Physical interface	RS485 for Modbus Serial line slave
Status LED	1 LED (red) charge, 1 LED (green) RUN, 1 LED (red) error
Signalling function	Servo status and fault codes five 7-segment display units
Marking	CE, CULus
Type of cooling	Natural convection
Operating position	Vertical
Product compatibility	Servo motor BCH2 (40 mm, 1 motor stacks) at 50 W
Width	55 mm
Height	150 mm
Depth	146 mm
Net weight	1 kg
Supply voltage description	Single phase 220 V AC 50...60 Hz, Three phase 220 V AC 50...60 Hz
Drive voltage drop coefficient	1
Field weakening	False
Continuous output current 2	0.64 A
Output current 3s peak 2	2 A at 220 V
Switching frequency 2	16 kHz
Continuous output current 3	0.64 A
Output current 3s peak 3	2 A at 220 V
Switching frequency 3	16 kHz
Communication iinterface	Pulse train output, CANopen DS402, CANmotion, Pulse train input
Emc filter compatibility	Type 020, Type 022
Electromagnetic compatibility	Conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Standards	IEC 61800-5-1
Product certifications	CE, cULus
IP degree of protection	IP20
Vibration resistance	3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3
Shock resistance	10 gn, type I conforming to IEC 60721-3-3
Relative humidity	5…95 % without condensation
Ambient air temperature for operation	0…55 °C
Ambient air temperature for storage	-25…65 °C
Operating altitude	<= 1000 m without derating, > 1000...2000 m 1 % per 100 m
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.5 cm
Package 1 Width	23 cm
Package 1 Length	23.7 cm
Package 1 Weight	1.26 kg
Unit Type of Package 2	S03
Number of Units in Package 2	5
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	7.043 kg
Unit Type of Package 3	PAL
Number of Units in Package 3	40
Package 3 Height	60 cm
Package 3 Width	60 cm
Package 3 Length	80 cm
Package 3 Weight	55.12 kg
