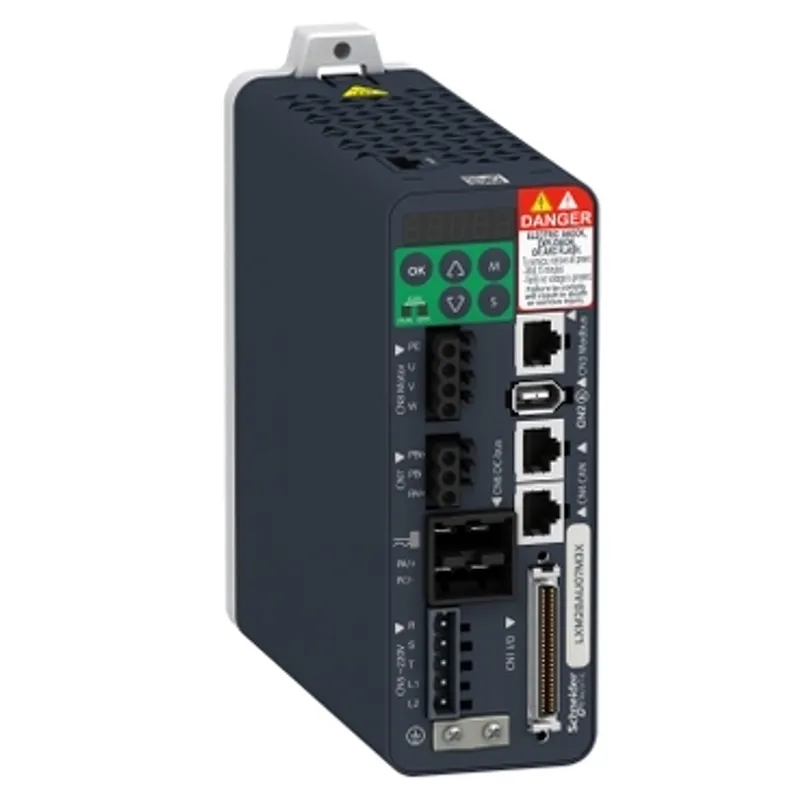

motion servo drive, Lexium 28, single and three phase, 200 to 240V, 100W
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lexium 28 & Motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1 kg |
Shipping & availability
When can LXM28AU01M3X be shipped?
LXM28AU01M3X is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LXM28AU01M3X in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LXM28AU01M3X and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXM28AU01M3X, subject to availability and destination.
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The motion servo drive without EMC filter, features a HMI interface 7-segment display with 5 buttons. Thanks to its open communication concept, Lexium 28 servo drive can be easily integrated into numerous different control system architectures. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 2.7A at 220V, a power of 100W/0.13HP and a continuous power of 100W at 220V. It is furnished with spring terminal for electrical connection and RJ45 connectors for CANopen, CANmotion integrated communication interfaces. Physical interface is RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (Width) x 146mm (Depth) x 150mm (Height). It weighs 1kg. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (40mm, 2 motor stacks) at 100W. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Specifications
Specifications
| Range of product | Lexium 28 |
| Device short name | LXM28A |
| Product or component type | Motion servo drive |
| Format of the drive | Compact housing |
| Line current | 1.2 A 239.2 % at 220 V, single phase, 1.2 A 212.7 % at 220 V, three phase |
| Network number of phases | 3, 1 |
| [Us] rated supply voltage | 200...240 V (- 10...15 %) for three phase, 200...240 V (- 20...15 %) for single phase |
| Supply voltage limits | 200…255 V three phase, 170…255 V single phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| EMC filter | Without EMC filter |
| Continuous output current | 0.9 A at 16 kHz |
| Output current 3s peak | 2.7 A at 220 V |
| Continuous power | 100 W at 220 V |
| Nominal power | 0.1 kW at 220 V 16 kHz |
| Switching frequency | 16 kHz |
| Overvoltage category | III |
| Maximum leakage current | 1.3 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Shielded motor cable (temperature: 0…55 °C) copper |
| Electrical connection | Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (L1-L2), Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (R, S, T), Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (U, V, W, PE), Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (PA/+, PBe) |
| Discrete input number | 8 programmable (CN1), 1 pulse train input (PTI) (CN1), 2 fast capture (CN1), 1 safety function STO (CN9) |
| Discrete input voltage | 24 V DC for logic |
| Discrete input logic | Positive or negative (CN1) |
| Discrete output number | 5 logic output (CN1) at 12...24 V DC, 1 pulse train output (PTO) (CN1) |
| Discrete output voltage | 12...24 V DC |
| Discrete output logic | Positive or negative (CN1) |
| Analogue input number | 2 |
| Absolute accuracy error | 0.1 % |
| Analogue input type | V_REF voltage analog input: - 10...10 V, impedance: 10 kOhm, resolution: 14 bits, T_REF voltage analog input |
| Control signal type | Servo motor encoder feedback CN2 |
| Protection type | Against reverse polarity: inputs signal, Against short-circuits: outputs signal, Overcurrent: motor, Overvoltage: motor, Undervoltage: motor, Overheating: motor, Overload: motor, Overspeed: motor |
| Safety function | STO (safe torque off), integrated |
| Safety level | SIL 2 conforming to IEC 61800-5-2: 2007, SIL 2 conforming to IEC 61508-1: 2010, PL d/category 3 conforming to ISO 13849-1: 2008, SIL 2 conforming to ISO 13849-1: 2009/AC, SIL 2 conforming to IEC 60204-1: 2006, SIL 2 conforming to IEC 60204-1: 2009/A1, SIL 2 conforming to IEC 60204-1: 2010/AC, SIL 2 conforming to IEC 62061: 2012 |
| Communication interface | CANopen, integrated, CANmotion, integrated |
| Connector type | RJ45 (CN4) for CANopen, CANmotion |
| Method of access | Slave |
| Transmission rate | 250 kbit/s for bus length of 100…250 m for CANopen, CANmotion, 500 kbit/s for bus length of 4…100 m for CANopen, CANmotion, 1 Mbit/s for bus length of 4 m for CANopen, CANmotion |
| Number of addresses | 1…127 for CANopen, CANmotion |
| Physical interface | RS485 for Modbus Serial line slave |
| Status LED | 1 LED (red) charge, 1 LED (green) RUN, 1 LED (red) error |
| Signalling function | Servo status and fault codes five 7-segment display units |
| Marking | CE, CULus |
| Type of cooling | Natural convection |
| Operating position | Vertical |
| Product compatibility | Servo motor BCH2 (40 mm, 2 motor stacks) at 100 W |
| Width | 55 mm |
| Height | 150 mm |
| Depth | 146 mm |
| Net weight | 1 kg |
| Supply voltage description | Single phase 220 V AC 50...60 Hz, Three phase 220 V AC 50...60 Hz |
| Drive voltage drop coefficient | 1 |
| Field weakening | False |
| Continuous output current 2 | 0.9 A |
| Output current 3s peak 2 | 2.7 A at 220 V |
| Switching frequency 2 | 16 kHz |
| Continuous output current 3 | 0.9 A |
| Output current 3s peak 3 | 2.7 A at 220 V |
| Switching frequency 3 | 16 kHz |
| Communication iinterface | Pulse train output, CANmotion, CANopen DS402, Pulse train input |
| Emc filter compatibility | Type 022, Type 020 |
| Electromagnetic compatibility | Conducted emission - test level: level 3 category C3 conforming to IEC 61800-3 |
| Standards | IEC 61800-5-1 |
| Product certifications | CE, cULus |
| IP degree of protection | IP20 |
| Vibration resistance | 3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3 |
| Shock resistance | 10 gn, type I conforming to IEC 60721-3-3 |
| Relative humidity | 5…95 % without condensation |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…65 °C |
| Operating altitude | <= 1000 m without derating, > 1000...2000 m 1 % per 100 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 23.000 cm |
| Package 1 Length | 23.500 cm |
| Package 1 Weight | 1.276 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.905 kg |
| Warranty (in months) | 18 |
