Terminal extensions, ComPacT NSX 100/160/250, straight, set of 4 parts
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ComPacT NSX, new generation |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.29 kg |
Shipping & availability
When can LV429264 be shipped?
LV429264 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV429264 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV429264 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV429264, subject to availability and destination.

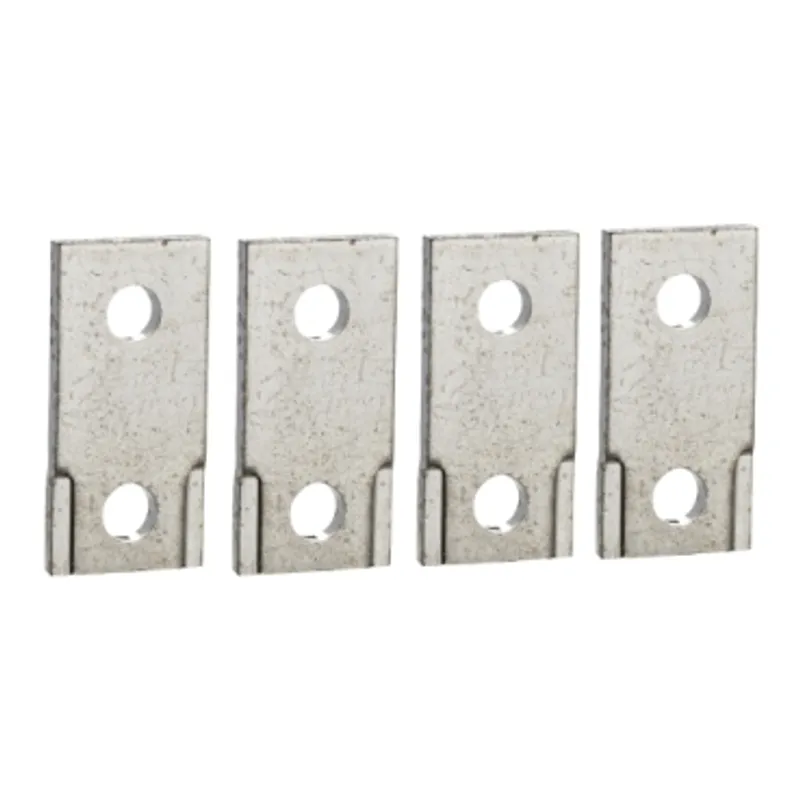

These accessories are straight terminal extensions for Compact NSX 100/160/250 and EasyPact CVS 100/160/250. These terminal extensions have anti-rotation ribs and can be attached to the standard terminals. The rated current is up to 250 A. These terminal extensions are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 4 parts.
Specifications
Specifications
| Product or component type | Terminal extension |
| Device short name | straight terminal extensions |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT ComPacT NSX100, ComPacT ComPacT NSX160, ComPacT ComPacT NSX250, ComPacT ComPacT NSX DC, ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC, EasyPact EasyPact CVS100, EasyPact EasyPact CVS160, EasyPact EasyPact CVS250, ComPact INS250, ComPact Compact INV100...250 |
| Poles description | 4P |
| Quantity per set | 4 |
| Mounting position | Straight |
| [In] rated current | 250 A |
| Connection pitch | 35 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.500 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 16.000 cm |
| Package 1 Weight | 291.900 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 11.000 cm |
| Package 2 Width | 20.000 cm |
| Package 2 Length | 35.000 cm |
| Package 2 Weight | 3.693 kg |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 40.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 18.220 kg |
| Warranty (in months) | 18 |
