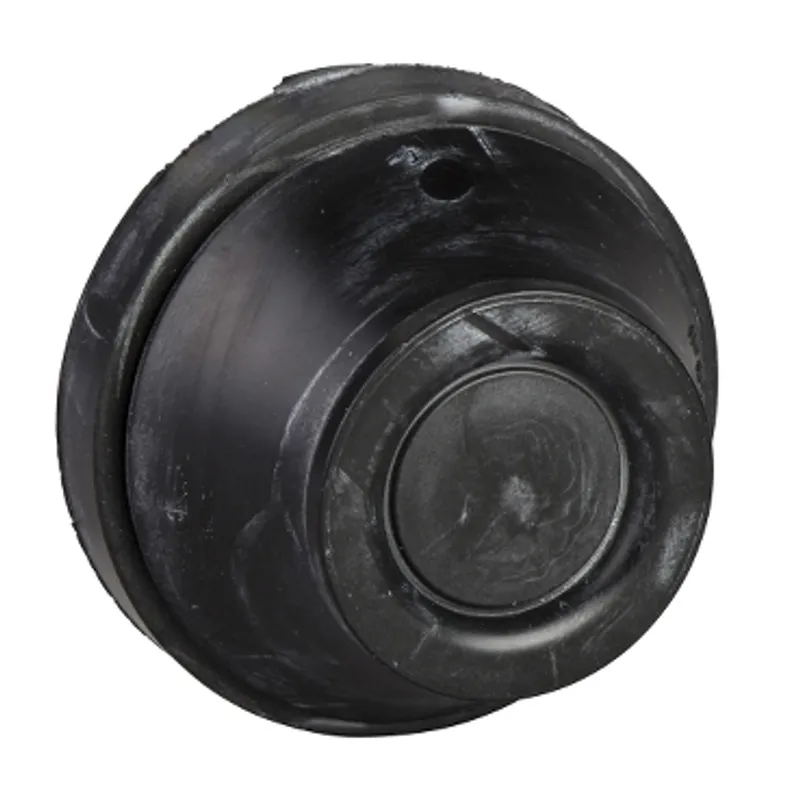

Thorsman TET 5-7 - grommet - black - diameter 5 to 7
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cabling and fixing for demanding professionals |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.6 kg |
Shipping & availability
When can IMT37320 be shipped?
IMT37320 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IMT37320 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IMT37320 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IMT37320, subject to availability and destination.
TET grommets are available in two different materials, Ethylene/propylene (EPDM) rubber and Chloroprene (CR) rubber. Both materials are weather and temperature resistant and can be used both indoors and outdoors. These grommets are intended for completely dust and watertight sealing of cables, conduits and pipes, for example in cars, aeroplanes, ships, electrical and hydraulic equipment. This device is a grommet and is black in color. The grommet is made of CR (chloroprene), making it resistant and durable. This device is sold in set of 50. The IP rating of this device is IP67 which is very high. This grommet is SVHC (substances of very high concern) free. It is mercury free.
Specifications
Specifications
| product range | Thorsman TET |
| product type | Grommet |
| colour | Black |
| quantity per package | Set of 50 |
| Material | CR (chloroprene) |
| Cable outer diameter | 5…7 mm |
| Drilling diameter | 16 mm |
| Height | 18 m |
| Width | 21 mm |
| Length | 21 mm |
| IP-Class | IP67 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 2.000 cm |
| Package 1 Length | 2.000 cm |
| Package 1 Weight | 3.600 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 2.000 cm |
| Package 2 Width | 14.000 cm |
| Package 2 Length | 15.000 cm |
| Package 2 Weight | 184.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 3000 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 11.460 kg |
