Home / Schneider Electric / DOL reversing combination starter,TeSys Deca Frame 2,GV2ME07 and LC2K06,1.6.-2.5A,24V DC

Available on request

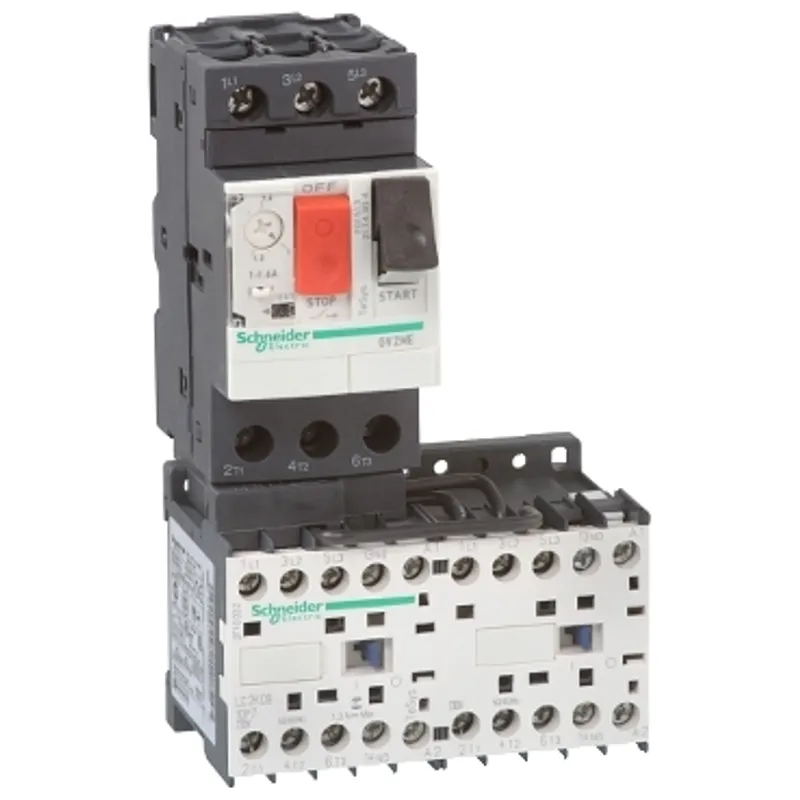

DOL reversing combination starter,TeSys Deca Frame 2,GV2ME07 and LC2K06,1.6.-2.5A,24V DC

Name: DOL reversing combination starter,TeSys Deca Frame 2,GV2ME07 and LC2K06,1.6.-2.5A,24V DC
Brand: Schneider Electric
SKU: GV2ME07K2BW3

MPN: GV2ME07K2BW3 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	TeSys K motor starters
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.46 kg

Shipping & availability

When can GV2ME07K2BW3 be shipped?

GV2ME07K2BW3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GV2ME07K2BW3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GV2ME07K2BW3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GV2ME07K2BW3, subject to availability and destination.

Specifications

Range	TeSys
Device short name	GV2ME
Product or component type	Motor starter
Motor starter type	Reversing
Poles description	3P
Utilisation category	AC-3, AC-3e
Motor power kW	0.75 kW at 400/415 V AC 50/60 Hz, 0.75 kW at 440 V AC 50/60 Hz, 1.1 kW at 440 V AC 50/60 Hz, 1.1 kW at 500 V AC 50/60 Hz
[Uc] control circuit voltage	24 V DC
thermal protection adjustment range	1.6…2.5 A
Magnetic tripping current	33.5 A
Device composition	1 combination block GV2AF01, 1 3-pole reversing contactor, 1 motor circuit breaker type GV2ME
Coordination type	Type 1
Breaking capacity	50 kA Iq at 400/415 V AC 50/60 Hz conforming to IEC 60947-4-1, 50 kA Iq at 440 V AC 50/60 Hz conforming to IEC 60947-4-1, 50 kA Iq at 500 V AC 50/60 Hz conforming to IEC 60947-4-1
Net weight	0.46 kg
Height	152 mm
Width	45 mm
Depth	87 mm
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	10.400 cm
Package 1 Width	13.100 cm
Package 1 Length	26.400 cm
Package 1 Weight	840.000 g
Warranty (in months)	18
