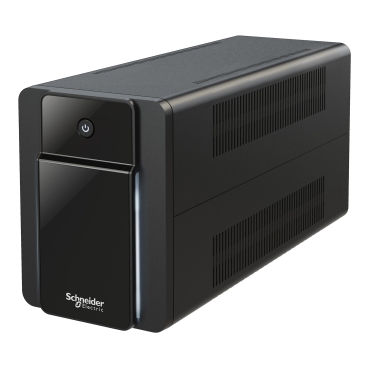

SE Back-UPS, 950VA, Tower, 230V, 6 x IEC C13 outlets, AVR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | APC Back-UPS |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 6.1 kg |
Shipping & availability
When can BXS950MI be shipped?
BXS950MI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BXS950MI in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BXS950MI and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BXS950MI, subject to availability and destination.
This Schneider Electric Back-UPS BXS950MI offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 950VA tower UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. Its dimensions are 16 x 12 x 35,5 cm and 6,1 kg. This UPS has a 2-year warranty and CE product certification.
Specifications
Specifications
| Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Cos phi | 0.54 |
| Input voltage limits | 140...300 V |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 520 W |
| rated power in VA | 950 VA |

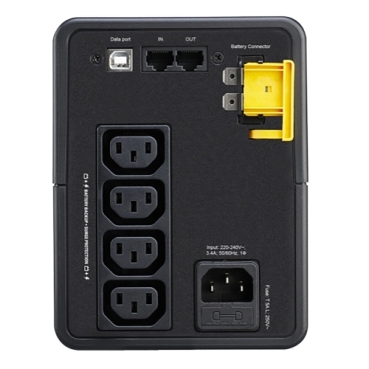

| Output connection type | 6 IEC 60320 C13 |
| USB Charging Port | None |
| Maximum configurable power in VA | 950 VA |
| Maximum configurable power in W | 520 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 00:01:00 480 W |
| Half load runtime | 00:06:30 240 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| Battery capacity | 9.0 Ah |
| Battery type | Lead-acid battery |
| Control panel | LED Status display with on line : on battery |
| UPS connectivity | None |
| Surge energy rate | 273 J |
| Cable length | 1.2 m |
| Number of cables | 1 |
| Colour | Black |
| Height | 160 mm |
| Width | 120 mm |
| Depth | 355 mm |
| Net weight | 6.1 kg |
| Mounting preference | No preference |
| Mounting mode | Tower |
| Two post mountable | 0 |
| USB compatible | Yes |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE, CB |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…40 °C |
| Storage altitude | 0…3000 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 40 dBA |
| Operating altitude | 0...3000 m |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery voltage | 12 V |
| Battery graph comments | Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery design life | 3…5 year(s) |
| Battery life | 3…5 year(s) |
| Replacement battery | RBC17 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 45.500 cm |
| Package 1 Width | 27.000 cm |
| Package 1 Length | 23.500 cm |
| Package 1 Weight | 7.300 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 49 |
| Package 2 Height | 219.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 360.900 kg |
| Warranty (in months) | 24 |
