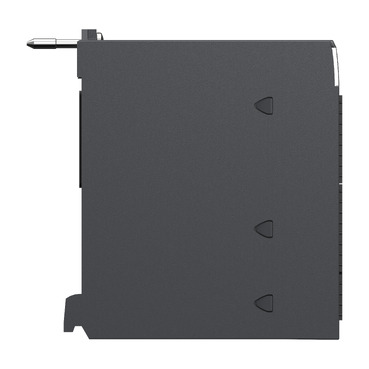

counter module, Modicon M340, high speed, 2 channels, hardened
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon X80 modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.11 kg |
Shipping & availability
When can BMXEHC0200H be shipped?
BMXEHC0200H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXEHC0200H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXEHC0200H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXEHC0200H, subject to availability and destination.
This counter module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This counter module for severe environments is equipped with 2 high speed channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This module has a weight of 0.112kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. The product must be installed on the rack and fixed with 2 screws. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
Specifications
Specifications
| Range of product | Modicon M340 automation platform |
| Product or component type | Counter module |
| Product specific application | For severe environments |
| Number of channels | 2 |
| Maximum counting frequency | 60000 Hz |
| Number of inputs | 6 |
| Input compatibility | 19.2…30 V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10...30 V totem pole |
| Input voltage | 24 V DC type 3 |
| Number of outputs | 2 |
| Output voltage | 24 V DC |
| Counter functions | Ratio count, Frequency meter, Down counting, 32-bit counter counting, Loop (modulo) counting, Measure time periods, Count events, Width modulation |
| Cycle time | 1 ms |
| Isolation voltage | 1500 V for 60 s |
| Input type | 3 auxiliary input, 3 high speed |
| Nominal input voltage | 19.2...30 V at 60 °C, 26.4 V at 70 °C |
| Nominal input current | 2 mA at 11 V |
| Voltage state 1 guaranteed | 11...30 V |
| Current state 1 guaranteed | >= 6 mA |
| Voltage state 0 guaranteed | < 5 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Discrete output logic | Positive or negative configurable |
| Maximum output current | 2 A per module, 0.5 A per output |
| Output voltage limits | 19.2...30 V |
| Maximum load current | 1 A per module, 0.5 A per output |
| Maximum leakage current | 0.1 mA at state 0 |
| Maximum voltage drop | <3 V at state 1 |
| Output overload protection | Integrated |
| Output short-circuit protection | 1.5 A integrated |
| Overlap time | 0.2 ms |
| Electrical connection | 1 connector with 10 pins for wiring auxiliary input and sensor power supply, 1 connector with 16 pins for wiring the sensors of counter 0, 1 connector with 16 pins for wiring the sensors of counter 1 |
| Current consumption | 200 mA at 3.3 V DC bus, 40 mA at 24 V DC rack, 80 mA at 24 V DC sensor |
| Module format | Standard |
| Net weight | 0.112 kg |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3, Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.500 cm |
| Package 1 Length | 11.800 cm |
| Package 1 Weight | 145.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.534 kg |
| Warranty (in months) | 18 |
