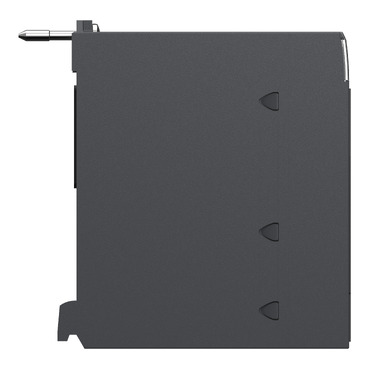

discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon X80 modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.15 kg |
Shipping & availability
When can BMXDRA1605 be shipped?
BMXDRA1605 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXDRA1605 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXDRA1605 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXDRA1605, subject to availability and destination.
This discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 normally open relay outputs and it is supplied with 24 to 240V AC/24 to 48V DC. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 2066927 hours of MTBF. This discrete module has a weight of 0.150kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Discrete output module |
| Discrete output number | 16 conforming to IEC 61131-2 |
| Discrete output type | Relay |
| Discrete output voltage | 24...48 V 19...60 V DC, 24...240 V 19…264 V AC |
| [Ith] conventional free air thermal current | 2 A |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3 W |
| Response time on output | < 8 ms activation, < 10 ms deactivation |
| Typical current consumption | 100 mA at 3.3 V DC, 95 mA at 24 V DC |
| MTBF reliability | 2100000 H |
| Output overload protection | Use 1 fast blow fuse per channel or group of channel |
| Output overvoltage protection | Use discharge diode on each output DC, Use RC circuit on each output AC, Use ZNO surge limiter on each output AC |
| Output short-circuit protection | Use 1 fast blow fuse per channel or group of channel |
| Minimum switching current | 1 mA 5 V DC |
| Electrical durability | AC-15: 100000 cycles at 240 VA 200 V (load factor 0.7), AC-15: 100000 cycles at 120 VA 200 V (load factor 0.35), AC-12: 100000 cycles at 200 VA 100 V, AC-12: 100000 cycles at 80 VA 48 V, AC-12: 100000 cycles at 50 VA 24 V, AC-15: 100000 cycles at 120 VA 100 V, AC-15: 100000 cycles at 120 VA 24 V, AC-15: 100000 cycles at 120 VA 48 V, DC-12: 100000 cycles at 24 W 24 V, DC-13: 100000 cycles at 10 W 24 V, DC-13: 100000 cycles at 10 W 48 V, AC-15: 300000 cycles at 72 VA 200 V (load factor 0.7), AC-15: 300000 cycles at 36 VA 200 V (load factor 0.35), AC-12: 300000 cycles at 200 VA 200 V, AC-12: 300000 cycles at 80 VA 100 V, AC-12: 300000 cycles at 50 VA 48 V, AC-15: 300000 cycles at 36 VA 100 V, AC-15: 300000 cycles at 72 VA 100 V, AC-15: 300000 cycles at 36 VA 48 V, AC-15: 300000 cycles at 72 VA 48 V, AC-15: 300000 cycles at 36 VA 24 V, AC-15: 300000 cycles at 72 VA 24 V, DC-13: 300000 cycles at 3 W 24 V, DC-13: 300000 cycles at 3 W 48 V, DC-13: 7000 cycles at 24 W 24 V, DC-13: 7000 cycles at 24 W 48 V, DC-12: 50000 cycles at 24 W 48 V |
| Status LED | 1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O |
| Net weight | 0.15 kg |
| IP degree of protection | IP20 |
| Dielectric strength | 2000 V AC at 50/60 Hz 1 min |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Standard version |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.300 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 179.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.960 kg |
| Warranty (in months) | 18 |
