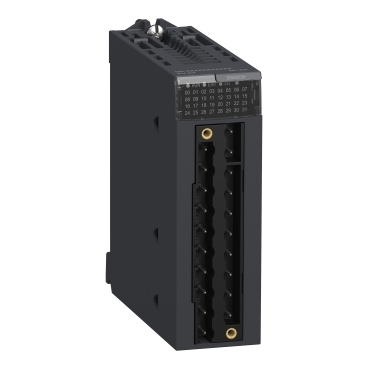

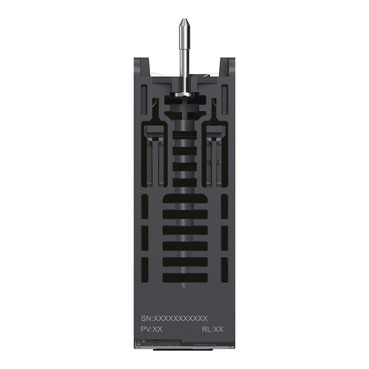

Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24 to 125V DC, for severe environments
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon X80 modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.17 kg |
Shipping & availability
When can BMXDRA0815H be shipped?
BMXDRA0815H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXDRA0815H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXDRA0815H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXDRA0815H, subject to availability and destination.
This discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 normally open isolated relay outputs and it is supplied with 24 to 240V AC/24 to 125V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 3223310 hours of MTBF. This discrete module has a weight of 0.210kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Relay discrete output module |
| Product specific application | For severe environments |
| Discrete output number | 8 conforming to IEC 61131-2 |
| Discrete output logic | Positive |
| Discrete output voltage | 24...240 V 19...264 V AC, 24...125 V 5...150 V DC |
| Electrical connection | 20 ways terminal block |
| Network frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz |
| Sensor power supply | 5...150 V, 19...264 V |
| [Ith] conventional free air thermal current | 3 A |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3.6 W |
| Response time on output | <= 10 ms activation, <= 13 ms deactivation |
| Typical current consumption | 40 mA at 3.3 V DC, 101 mA at 24 V DC |
| MTBF reliability | 3200000 H |
| Protection type | External short-circuit protection, External overload protection, External overvoltage protection, inductive AC network, External overvoltage protection, inductive DC network |
| Output overload protection | Use 1 fast blow fuse per channel or group of channel |
| Output overvoltage protection | Use discharge diode on each output DC, Use RC circuit on each output AC, Use ZNO surge limiter on each output AC |
| Output short-circuit protection | Use 1 fast blow fuse per channel or group of channel |
| Minimum switching current | 1 mA 5 V DC |
| Electrical durability | AC-12: 200000 cycles at 48 VA 24 V at -25…60 °C, AC-12: 200000 cycles at 28.8 VA 24 V at 70 °C, AC-12: 300000 cycles at 48 VA 48 V at -25…60 °C, AC-12: 300000 cycles at 28.8 VA 48 V at 70 °C, AC-12: 150000 cycles at 96 VA 48 V at -25…60 °C, AC-12: 150000 cycles at 57.6 VA 48 V at 70 °C, AC-12: 300000 cycles at 110 VA 100...120 V at -25…60 °C, AC-12: 300000 cycles at 66 VA 100...120 V at 70 °C, AC-12: 150000 cycles at 220 VA 100...120 V at -25…60 °C, AC-12: 150000 cycles at 132 VA 100...120 V at 70 °C, AC-12: 300000 cycles at 220 VA 200...250 V at -25…60 °C, AC-12: 300000 cycles at 132 VA 200...250 V at 70 °C, AC-12: 150000 cycles at 500 VA 200...250 V at -25…60 °C, AC-12: 150000 cycles at 300 VA 200...250 V at 70 °C, AC-15: 700000 cycles at 10 VA 24 V at -25…60 °C (load factor 0.4), AC-15: 700000 cycles at 6 VA 24 V at 70 °C (load factor 0.4), AC-15: 500000 cycles at 24 VA 24 V at -25…60 °C (load factor 0.4), AC-15: 500000 cycles at 14.4 VA 24 V at 70 °C (load factor 0.4), AC-15: 200000 cycles at 48 VA 24 V at -25…60 °C (load factor 0.4), AC-15: 200000 cycles at 28.8 VA 24 V at 70 °C (load factor 0.4), AC-15: 700000 cycles at 10 VA 48 V at -25…60 °C (load factor 0.4), AC-15: 700000 cycles at 6 VA 48 V at 70 °C (load factor 0.4), AC-15: 500000 cycles at 24 VA 48 V at -25…60 °C (load factor 0.4), AC-15: 500000 cycles at 14.4 VA 48 V at 70 °C (load factor 0.4), AC-15: 300000 cycles at 48 VA 48 V at -25…60 °C (load factor 0.4), AC-15: 300000 cycles at 28.8 VA 48 V at 70 °C (load factor 0.4), AC-15: 100000 cycles at 96 VA 48 V at -25…60 °C (load factor 0.4), AC-15: 100000 cycles at 57.6 VA 48 V at 70 °C (load factor 0.4), AC-15: 1000000 cycles at 10 VA 100...120 V at -25…60 °C (load factor 0.4), AC-15: 1000000 cycles at 6 VA 100...120 V at 70 °C (load factor 0.4), AC-15: 300000 cycles at 50 VA 100...120 V at -25…60 °C (load factor 0.4), AC-15: 300000 cycles at 30 VA 100...120 V at 70 °C (load factor 0.4), AC-15: 200000 cycles at 110 VA 100...120 V at -25…60 °C (load factor 0.4), AC-15: 200000 cycles at 66 VA 100...120 V at 70 °C (load factor 0.4), AC-15: 70000 cycles at 220 VA 100...120 V at -25…60 °C (load factor 0.4), AC-15: 70000 cycles at 132 VA 100...120 V at 70 °C (load factor 0.4), AC-15: 1000000 cycles at 10 VA 200...250 V at -25…60 °C (load factor 0.4), AC-15: 1000000 cycles at 6 VA 200...250 V at 70 °C (load factor 0.4), AC-15: 500000 cycles at 50 VA 200...250 V at -25…60 °C (load factor 0.4), AC-15: 500000 cycles at 30 VA 200...250 V at 70 °C (load factor 0.4), AC-15: 200000 cycles at 110 VA 200...250 V at -25…60 °C (load factor 0.4), AC-15: 200000 cycles at 66 VA 200...250 V at 70 °C (load factor 0.4), AC-15: 150000 cycles at 220 VA 200...250 V at -25…60 °C (load factor 0.4), AC-15: 150000 cycles at 132 VA 200...250 V at 70 °C (load factor 0.4), DC-12: 200000 cycles at 24 W 24 V at -25…60 °C, DC-12: 200000 cycles at 14.4 W 24 V at 70 °C, DC-12: 150000 cycles at 48 W 24 V at -25…60 °C, DC-12: 150000 cycles at 28.8 W 24 V at 70 °C, DC-12: 150000 cycles at 40 W 48...60 V at -25…60 °C, DC-12: 150000 cycles at 24 W 48...60 V at 70 °C, DC-12: 100000 cycles at 45 W 100...125 V at -25…60 °C, DC-12: 60000 cycles at 45 W 100...125 V at 70 °C, DC-13: 100000 cycles at 10 W 24 V at -25…60 °C, DC-13: 100000 cycles at 6 W 24 V at 70 °C, DC-13: 60000 cycles at 24 W 24 V at -25…60 °C, DC-13: 60000 cycles at 14.4 W 24 V at 70 °C, DC-13: 40000 cycles at 48 W 24 V at -25…60 °C, DC-13: 40000 cycles at 28.8 W 24 V at 70 °C, DC-13: 40000 cycles at 40 W 48...60 V at -25…60 °C, DC-13: 40000 cycles at 24 W 48...60 V at 70 °C, DC-13: 100000 cycles at 15 W 100...125 V at -25…60 °C, DC-13: 40000 cycles at 15 W 100...125 V at 70 °C |
| Status LED | 1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O |
| Net weight | 0.169 kg |
| IP degree of protection | IP20 |
| Environmental characteristic | Gas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2 |
| Dielectric strength | 1780 V AC at 50/60 Hz 1 min |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 0…95 % at 60 °C without condensation |
| Protective treatment | Conformal coating |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.600 cm |
| Package 1 Length | 12.300 cm |
| Package 1 Weight | 209.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.442 kg |
| Warranty (in months) | 18 |
