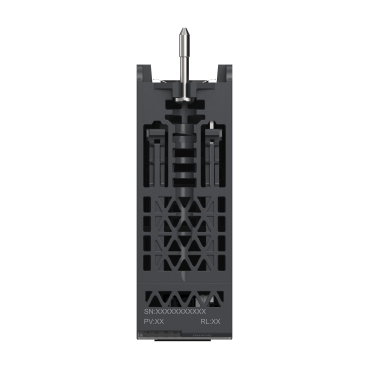

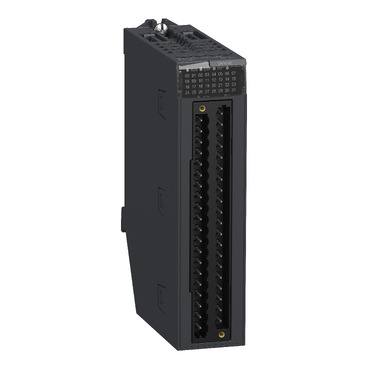

Discrete input module, Modicon X80, 16 isolated inputs, 100 to 120V AC

This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 isolated input channels and it is supplied with 100 to 120V AC. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 970000 hours of MTBF. This analog module has a weight of 0.157kg and dimensions of 32x131x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 1 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
