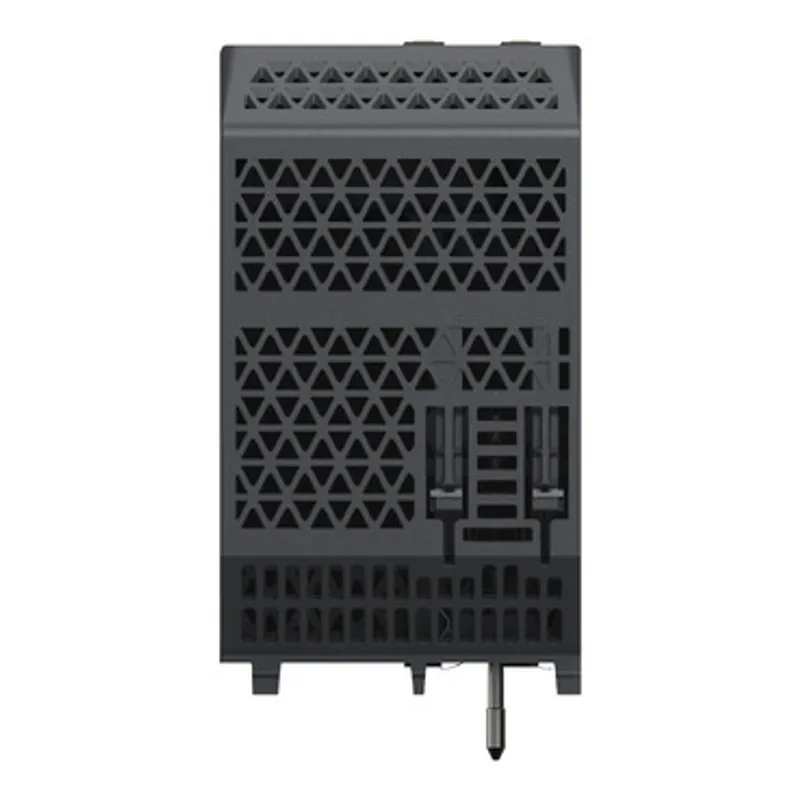

redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon X80 modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.81 kg |
Shipping & availability
When can BMXCPS4022H be shipped?
BMXCPS4022H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXCPS4022H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXCPS4022H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXCPS4022H, subject to availability and destination.

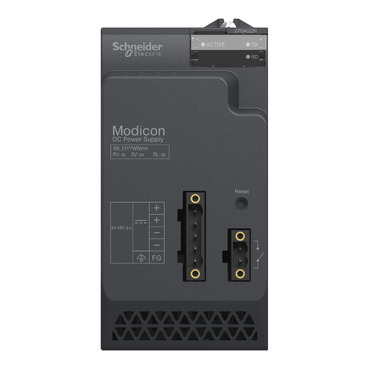

This power supply for severe environments is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This redundant power supply module has a primary voltage of 24V to 48V DC for severe environments. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.81kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. The product must be installed on the rack and fixed with 2 screws. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Power supply module |
| backplane compatibility | All backplane |
| Product specific application | For severe environments |
| advanced diagnostics available via network | Temperature sensing, Uptime duration, Redundancy test, Remaining lifetime, Redundancy information |
| Primary voltage | 24...48 V |
| Supply circuit type | DC |
| Secondary power | 18 W 3.3 V DC at -25…70 °C I/O module logic power supply, 40 W 24 V DC at -25…70 °C I/O module power supply and processor if 3.3 V not loaded |
| Primary voltage limit | 18...62.4 V |
| Input current | 1.9 A 24 V, 1 A 48 V |
| Inrush current | 60 A 48 V, 60 A 24 V |
| I²t on activation | 1 A².s 24 V, 3 A².s 48 V |
| It on activation | 0.3 A.s 24 V, 0.4 A.s 48 V |
| MTBF reliability | 752000 H |
| Protection type | Internal fuse not accessible for primary circuit, Overload protection for secondary circuit, Overvoltage protection for secondary circuit, Short-circuit protection for secondary circuit |
| Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply, 1.67 A 24 V DC I/O module power supply and processor |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) presence of voltages (OK), 1 LED (green) redundancy OK, 1 LED (green) power supply status |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay, 1 connector 5 pin(s)line supply, protective earth |
| Maximum cable distance between devices | 10 m, 15 m |
| Insulation resistance | >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary |
| Net weight | 0.81 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/ground, 1500 V primary/secondary |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3, Hazardous location class I division 2 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| Protective treatment | Conformal coating |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 17.800 cm |
| Package 1 Length | 25.000 cm |
| Package 1 Weight | 675.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.712 kg |
| Warranty (in months) | 18 |
