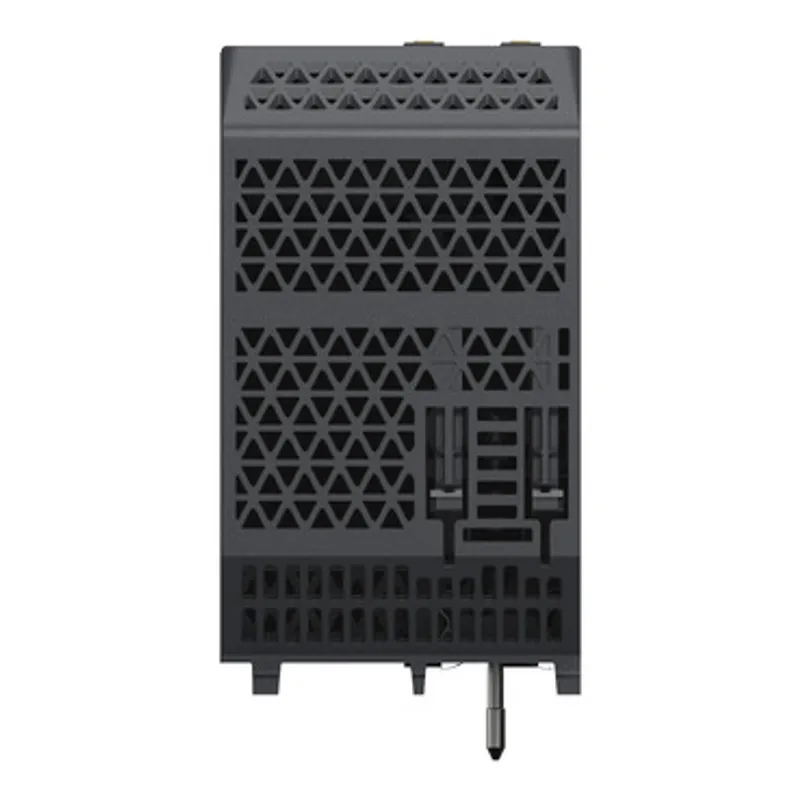

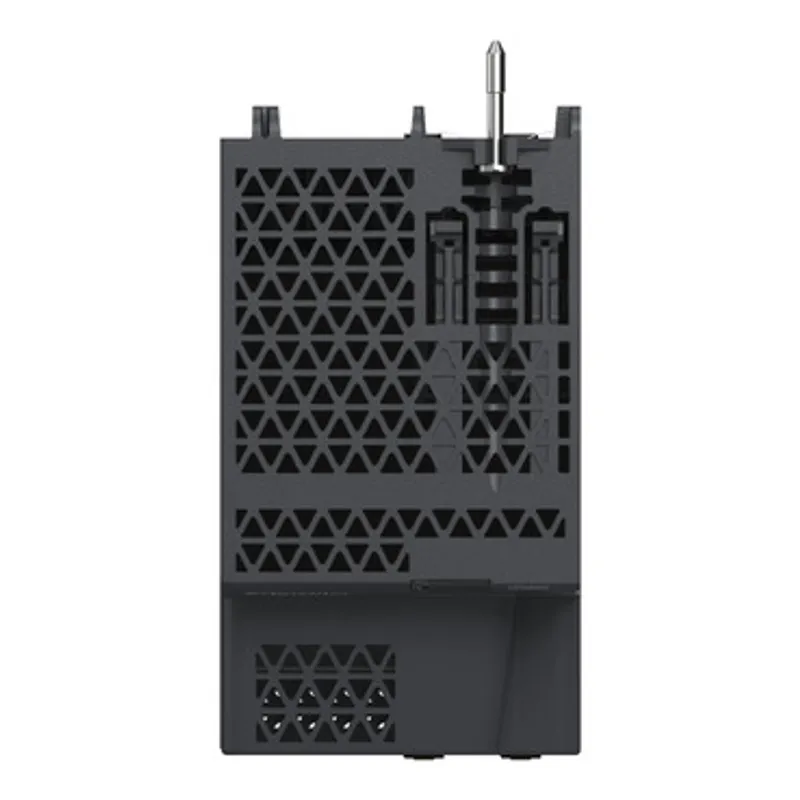

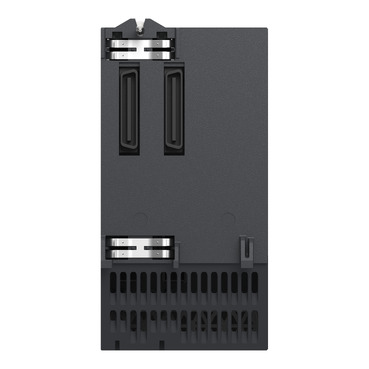

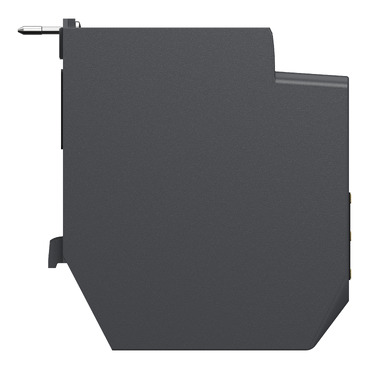

power supply module, Modicon X80, 100 to 240V AC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon X80 modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.51 kg |
Shipping & availability
When can BMXCPS4002 be shipped?
BMXCPS4002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXCPS4002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXCPS4002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXCPS4002, subject to availability and destination.
This power supply is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.51kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. The product must be installed on the rack and fixed with 2 screws. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Power supply module |
| backplane compatibility | All backplane |
| advanced diagnostics available via network | Temperature sensing, Redundancy test, Uptime duration, Redundancy information, Remaining lifetime |
| Primary voltage | 100...240 V |
| Supply circuit type | AC |
| Secondary power | 18 W 3.3 V DC at 0…60 °C I/O module logic power supply, 40 W 24 V DC at 0…60 °C I/O module power supply and processor if 3.3 V not loaded |
| Primary voltage limit | 85...264 V |
| Network frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz |
| Apparent power | 0.13 kVA |
| Input current | 0.55 A 240 V, 1.01 A 115 V |
| Inrush current | 30 A 120 V, 60 A 240 V |
| I²t on activation | 1 A².s 115 V, 4 A².s 230 V |
| It on activation | 0.1 A.s 115 V, 0.15 A.s 230 V |
| MTBF reliability | 792000 H |
| Protection type | Internal fuse not accessible for primary circuit, Overload protection for secondary circuit, Overvoltage protection for secondary circuit, Short-circuit protection for secondary circuit |
| Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply, 1.67 A 24 V DC I/O module power supply and processor |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) presence of voltages (OK), 1 LED (green) redundancy OK, 1 LED (green) power supply status |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay, 1 connector 5 pin(s)line supply, protective earth |
| Insulation resistance | >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary |
| Net weight | 0.51 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor, 2300 V primary/secondary sensor power supply, 1500 V primary/ground, 500 V 24 V sensor output/ground |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Environmental characteristic | 3C3 conforming to IEC 60721-3-3, 3C4 conforming to IEC 60721-3-3 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | TC, Conformal coating Humiseal 1A33 |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.800 cm |
| Package 1 Width | 18.300 cm |
| Package 1 Length | 25.300 cm |
| Package 1 Weight | 614.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.420 kg |
| Warranty (in months) | 18 |
