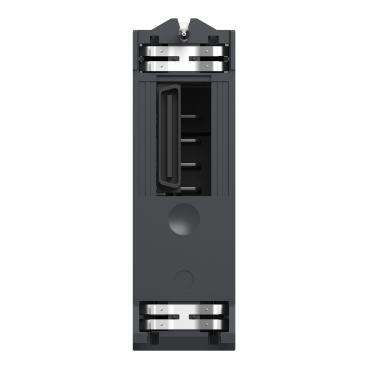

Analog isolated high level output module, Modicon X80, 2 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon X80 modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.14 kg |
Shipping & availability
When can BMXAMO0210 be shipped?
BMXAMO0210 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXAMO0210 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXAMO0210 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXAMO0210, subject to availability and destination.
This analog isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 2 output channels. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Analog output module |
| Electrical connection | 20 ways 1 connector |
| Isolation between channels | Isolated |
| Measurement error | <= 0.2 % of full scale 0...60 °C, 0.1 % of full scale 25 °C |
| Temperature drift | 30 ppm/°C |
| Recalibration | Factory calibrated |
| Minimum crosstalk attenuation | 90 dB |
| Common mode rejection | 100 dB |
| Isolation voltage | 1400 V DC between channels and ground, 1400 V DC between channels and bus, 750 V DC between channels |
| Detection type | Open circuit 0...20 mA, Open circuit 4...20 mA, Short circuit +/- 10 V |
| Load impedance ohmic | <= 600 Ohm 0...20 mA, <= 600 Ohm 4...20 mA, >= 1000 Ohm +/- 10 V |
| Output level | High level |
| Analogue output number | 2 |
| Analogue output type | Current: 0...20 mA, Current: 4...20 mA, Voltage: +/- 10 V |
| Analogue output resolution | 15 bits + sign |
| Supply | Internal power supply via rack |
| Conversion time | <= 1 ms |
| Maximum conversion value | +/- 11.25 V +/- 10 V, 0...24 mA 0...20 mA, 0...24 mA 4...20 mA |
| Fallback mode | Predefined, Configurable |
| MTBF reliability | 1300000 H |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O |
| Net weight | 0.144 kg |
| Power consumption in W | 2.1 W 24 V DC typical, 2.8 W 24 V DC maximum, 0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum |
| Current consumption | 150 mA at 3.3 V DC, 110 mA at 24 V DC |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE, RCM, CSA, EAC, Merchant Navy, UL |
| Standards | IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Protective treatment | Standard version |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 173.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.901 kg |
| Warranty (in months) | 18 |
