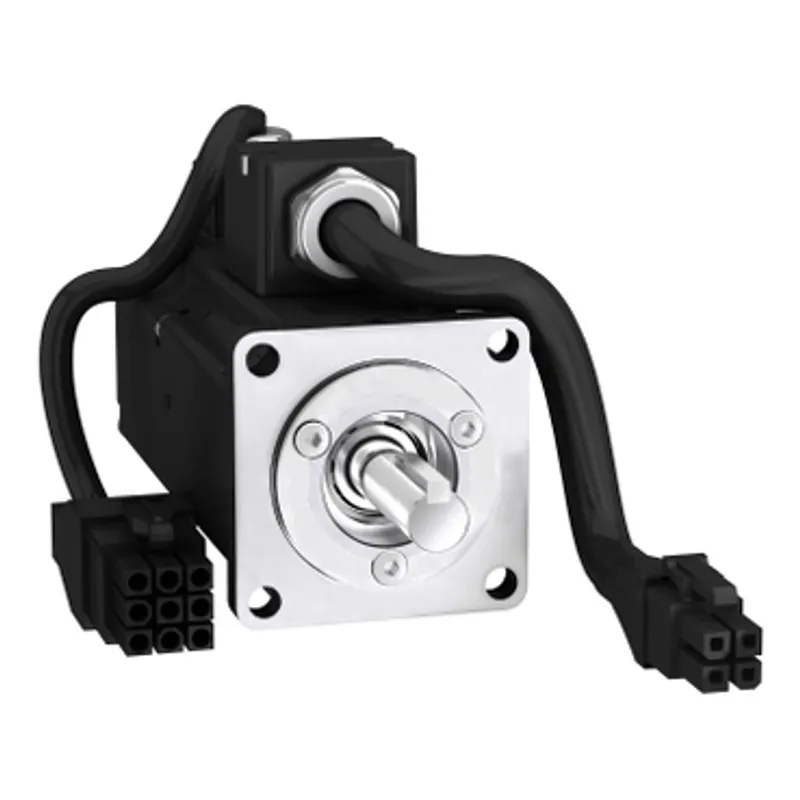

servo motor BCH, Lexium 28, 40mm, 50W, 0.055kg.cm², with oil seal, with key, brake, leads connection

Name: servo motor BCH, Lexium 28, 40mm, 50W, 0.055kg.cm², with oil seal, with key, brake, leads connection
Brand: Schneider Electric
SKU: BCH2MBA533CF5C

MPN: BCH2MBA533CF5C · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 28 & Motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.6 kg

Shipping & availability

When can BCH2MBA533CF5C be shipped?

BCH2MBA533CF5C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BCH2MBA533CF5C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BCH2MBA533CF5C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BCH2MBA533CF5C, subject to availability and destination.

Specifications

Range compatibility	Lexium 28
Device short name	BCH2
Product or component type	Servo motor
Maximum mechanical speed	5000 rpm
[Us] rated supply voltage	220 V, 110 V
Network number of phases	1
Continuous stall current	0.54 A
Continuous stall torque	0.16 N.m for LXM26D at 0.64 A, 220 V, single phase, 0.16 N.m for LXM26D at 0.64 A, 220 V, three phase, 0.16 N.m for LXM28 at 0.64 A, 220 V, single phase, 0.16 N.m for LXM28 at 0.64 A, 220 V, three phase, 0.16 N.m for LXM28 at 1.2 A, 110 V, single phase
Continuous power	50 W
Peak stall torque	0.48 N.m for LXM26D at 0.64 A, 220 V, single phase, 0.48 N.m for LXM26D at 0.64 A, 220 V, three phase, 0.48 N.m for LXM28... at 0.64 A, 220 V, single phase, 0.48 N.m for LXM28... at 0.64 A, 220 V, three phase, 0.48 N.m for LXM28... at 1.2 A, 110 V, single phase
Nominal output power	50 W for LXM26D at 0.64 A, 220 V, single phase, 50 W for LXM26D at 0.64 A, 220 V, three phase, 50 W for LXM28... at 0.64 A, 220 V, single phase, 50 W for LXM28... at 0.64 A, 220 V, three phase, 50 W for LXM28... at 1.2 A, 110 V, single phase
Nominal torque	0.16 N.m for LXM26D at 0.64 A, 220 V, single phase, 0.16 N.m for LXM26D at 0.64 A, 220 V, three phase, 0.16 N.m for LXM28... at 0.64 A, 220 V, single phase, 0.16 N.m for LXM28... at 0.64 A, 220 V, three phase, 0.16 N.m for LXM28... at 1.2 A, 110 V, single phase
Nominal speed	3000 rpm for LXM26D at 0.64 A, 220 V, single phase, 3000 rpm for LXM26D at 0.64 A, 220 V, three phase, 3000 rpm for LXM28... at 0.64 A, 220 V, single phase, 3000 rpm for LXM28... at 0.64 A, 220 V, three phase, 3000 rpm for LXM28... at 1.2 A, 110 V, single phase
Maximum current Irms	1.77 A for LXM28... at 0.05 kW, 220 V, 1.77 A for LXM28... at 0.05 kW, 110 V
Maximum permanent current	0.59 A
Product compatibility	LXM26D servo drive motor at 0.05 kW, 220 V, single phase, LXM26D servo drive motor at 0.05 kW, 220 V, three phase, LXM28... servo drive motor at 0.05 kW, 220 V, single phase, LXM28... servo drive motor at 0.05 kW, 220 V, three phase, LXM28... servo drive motor at 0.05 kW, 110 V, single phase
Shaft end	Keyed
Shaft diameter	8 mm
Shaft length	25 mm
Key width	3 mm
Feedback type	20 bits single turn absolute encoder
Holding brake	With
Holding torque	0.32 N.m built-in
Mounting support	Asian standard flange
Motor flange size	40 mm
Electrical connection	Free lead
Torque constant	0.3 N.m/A at 20 °C
Back emf constant	18 V/krpm at 20 °C
Number of motor poles	4.0
Rotor inertia	0.055 kg.cm²
Stator resistance	31 Ohm at 20 °C
Stator inductance	24.7 mH at 20 °C
Stator electrical time constant	0.8 ms at 20 °C
Maximum radial force Fr	85 N at 3000 rpm
Maximum axial force Fa	40 N
Brake pull-in power	4.35 W
Type of cooling	Natural convection
Length	112 mm
Number of motor stacks	1
Centring collar diameter	30 mm
Centring collar depth	3 mm
Number of mounting holes	4
Mounting holes diameter	4.5 mm
Circle diameter of the mounting holes	46 mm
Distance shaft shoulder-flange	3 mm
Net weight	0.6 kg
Sizing reference	BCH2
Accuracy error [angular]	0.044 °
Temperature copper hot	135 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Inertia	0.045 kg.cm² of brake, 0.055 kg.cm² of motor
IP degree of protection	IP50 IM V3, IP65 IM B5, IM V1
Ambient air temperature for operation	0…40 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.000 cm
Package 1 Width	13.200 cm
Package 1 Length	24.500 cm
Package 1 Weight	883.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	3
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.155 kg
Warranty (in months)	18
