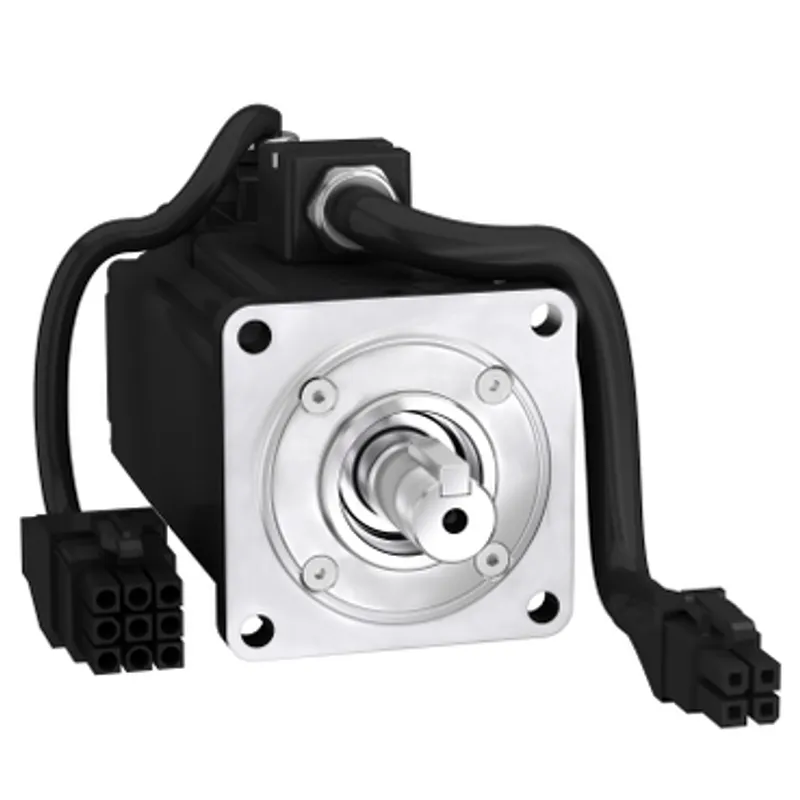

servo motor BCH, Lexium 28, 60mm, 400W, 0.28kg.cmÂ², without oil seal, smooth, brake, leads connection

Name: servo motor BCH, Lexium 28, 60mm, 400W, 0.28kg.cmÂ², without oil seal, smooth, brake, leads connection
Brand: Schneider Electric
SKU: BCH2LD0430CF5C

MPN: BCH2LD0430CF5C · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 28 & Motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	2 kg

Shipping & availability

When can BCH2LD0430CF5C be shipped?

BCH2LD0430CF5C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BCH2LD0430CF5C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BCH2LD0430CF5C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BCH2LD0430CF5C, subject to availability and destination.

Specifications

Range compatibility	Lexium 28
Device short name	BCH2
Product or component type	Servo motor
Maximum mechanical speed	5000 rpm
[Us] rated supply voltage	220 V, 110 V
Network number of phases	1
Continuous stall current	2.19 A
Continuous stall torque	1.27 N.m for LXM28 at 2.6 A, 220 V, single phase, 1.27 N.m for LXM28 at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28 at 5.7 A, 110 V, single phase
Continuous power	400 W
Peak stall torque	3.81 N.m for LXM28... at 2.6 A, 220 V, single phase, 3.81 N.m for LXM28... at 2.6 A, 220 V, three phase, 3.81 N.m for LXM28... at 5.7 A, 110 V, single phase
Nominal output power	400 W for LXM28... at 2.6 A, 220 V, single phase, 400 W for LXM28... at 2.6 A, 220 V, three phase, 400 W for LXM28... at 5.7 A, 110 V, single phase
Nominal torque	1.27 N.m for LXM28... at 2.6 A, 220 V, single phase, 1.27 N.m for LXM28... at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28... at 5.7 A, 110 V, single phase
Nominal speed	3000 rpm for LXM28... at 2.6 A, 220 V, single phase, 3000 rpm for LXM28... at 2.6 A, 220 V, three phase, 3000 rpm for LXM28... at 5.7 A, 110 V, single phase
Maximum current Irms	7.76 A for LXM28... at 0.4 kW, 220 V, 7.76 A for LXM28... at 0.4 kW, 110 V
Maximum permanent current	2.5 A
Product compatibility	LXM28... servo drive motor at 0.4 kW, 220 V, single phase, LXM28... servo drive motor at 0.4 kW, 220 V, three phase, LXM28... servo drive motor at 0.4 kW, 110 V, single phase
Shaft end	Smooth shaft
Shaft diameter	14 mm
Shaft length	30 mm
Feedback type	20 bits single turn absolute encoder
Holding brake	With
Holding torque	1.3 N.m built-in
Mounting support	Asian standard flange
Motor flange size	60 mm
Electrical connection	Free lead
Torque constant	0.58 N.m/A at 20 °C
Back emf constant	35 V/krpm at 20 °C
Number of motor poles	4.0
Rotor inertia	0.28 kg.cm²
Stator resistance	5.2 Ohm at 20 °C
Stator inductance	12.0 mH at 20 °C
Stator electrical time constant	2.31 ms at 20 °C
Maximum radial force Fr	200 N at 3000 rpm
Maximum axial force Fa	70 N
Brake pull-in power	11.2 W
Type of cooling	Natural convection
Length	165 mm
Number of motor stacks	2
Centring collar diameter	50 mm
Centring collar depth	5.5 mm
Number of mounting holes	4
Mounting holes diameter	5.5 mm
Circle diameter of the mounting holes	70 mm
Distance shaft shoulder-flange	5.5 mm
Net weight	2 kg
Sizing reference	BCH2
Accuracy error [angular]	0.044 °
Temperature copper hot	135 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Inertia	0.27 kg.cm² of brake, 0.28 kg.cm² of motor
IP degree of protection	IP54 IM B5, IM V1, IP50 IM V3
Ambient air temperature for operation	0…40 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.2 cm
Package 1 Width	14.5 cm
Package 1 Length	26.5 cm
Package 1 Weight	2.33 kg
Unit Type of Package 2	S03
Number of Units in Package 2	5
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	12.123 kg
Unit Type of Package 3	P06
Number of Units in Package 3	40
Package 3 Height	80 cm
Package 3 Width	60 cm
Package 3 Length	72 cm
Package 3 Weight	103.984 kg
Warranty (in months)	18
