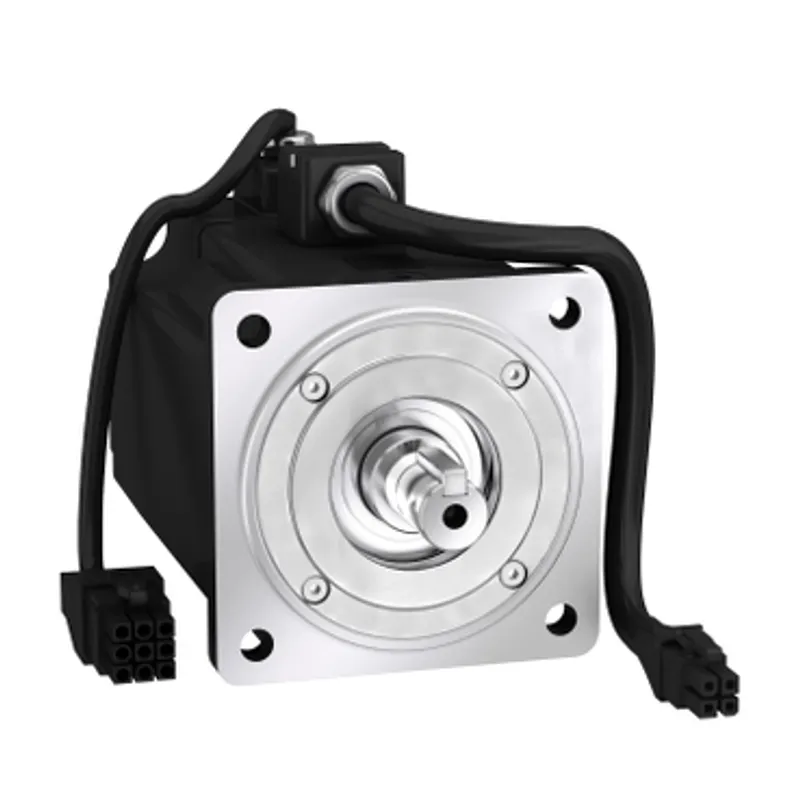

servo motor BCH, Lexium 28, 80mm, 750W, 1.54kg.cm², with oil seal, smooth, leads connection

Name: servo motor BCH, Lexium 28, 80mm, 750W, 1.54kg.cm², with oil seal, smooth, leads connection
Brand: Schneider Electric
SKU: BCH2HF0732CA5C

MPN: BCH2HF0732CA5C · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 28 & Motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	2.9 kg

Shipping & availability

When can BCH2HF0732CA5C be shipped?

BCH2HF0732CA5C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BCH2HF0732CA5C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BCH2HF0732CA5C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BCH2HF0732CA5C, subject to availability and destination.

Specifications

Range compatibility	Lexium 28
Device short name	BCH2
Product or component type	Servo motor
Maximum mechanical speed	5000 rpm
[Us] rated supply voltage	220 V, 110 V
Network number of phases	1
Continuous stall current	4.01 A
Continuous stall torque	2.39 N.m for LXM28 at 4.5 A, 220 V, single phase, 2.39 N.m for LXM28 at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28 at 9 A, 110 V, single phase
Continuous power	750 W
Peak stall torque	7.16 N.m for LXM28... at 4.5 A, 220 V, single phase, 7.16 N.m for LXM28... at 4.5 A, 220 V, three phase, 7.16 N.m for LXM28... at 9 A, 110 V, single phase
Nominal output power	750 W for LXM28... at 4.5 A, 220 V, single phase, 750 W for LXM28... at 4.5 A, 220 V, three phase, 750 W for LXM28... at 9 A, 110 V, single phase
Nominal torque	2.39 N.m for LXM28... at 4.5 A, 220 V, single phase, 2.39 N.m for LXM28... at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28... at 9 A, 110 V, single phase
Nominal speed	3000 rpm for LXM28... at 4.5 A, 220 V, single phase, 3000 rpm for LXM28... at 4.5 A, 220 V, three phase, 3000 rpm for LXM28... at 9 A, 110 V, single phase
Maximum current Irms	13.23 A for LXM28... at 0.75 kW, 220 V, 13.23 A for LXM28... at 0.75 kW, 110 V
Maximum permanent current	4.29 A
Product compatibility	LXM28... servo drive motor at 0.75 kW, 220 V, single phase, LXM28... servo drive motor at 0.75 kW, 220 V, three phase, LXM28... servo drive motor at 0.75 kW, 110 V, single phase
Shaft end	Smooth shaft
Shaft diameter	19 mm
Shaft length	35 mm
Feedback type	20 bits single turn absolute encoder
Holding brake	Without
Mounting support	Asian standard flange
Motor flange size	80 mm
Electrical connection	Free lead
Torque constant	0.6 N.m/A at 20 °C
Back emf constant	36 V/krpm at 20 °C
Number of motor poles	4.0
Rotor inertia	1.54 kg.cm²
Stator resistance	1.5 Ohm at 20 °C
Stator inductance	6.1 mH at 20 °C
Stator electrical time constant	4.07 ms at 20 °C
Maximum radial force Fr	332 N at 3000 rpm
Maximum axial force Fa	115 N
Brake pull-in power	10.2 W
Type of cooling	Natural convection
Length	138 mm
Number of motor stacks	2
Centring collar diameter	70 mm
Centring collar depth	4 mm
Number of mounting holes	4
Mounting holes diameter	6.6 mm
Circle diameter of the mounting holes	90 mm
Distance shaft shoulder-flange	4 mm
Net weight	2.9 kg
Sizing reference	BCH2
Accuracy error [angular]	0.044 °
Temperature copper hot	135 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Inertia	0.0 kg.cm² of brake, 1.53 kg.cm² of motor
IP degree of protection	IP50 IM V3, IP65 IM B5, IM V1
Ambient air temperature for operation	-20…40 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	13.8 cm
Package 1 Width	17.5 cm
Package 1 Length	29.6 cm
Package 1 Weight	3.475 kg
Unit Type of Package 2	S03
Number of Units in Package 2	2
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	7.54 kg
Warranty (in months)	18
