Variable speed drive, Altivar Process ATV600, ATV680 Low Harmonic System, 900/710kW, 480V, IP23

Name: Variable speed drive, Altivar Process ATV600, ATV680 Low Harmonic System, 900/710kW, 480V, IP23
Brand: Schneider Electric
SKU: ATV680C80T4X1

MPN: ATV680C80T4X1 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Altivar Process ATV600
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1950 kg

Shipping & availability

When can ATV680C80T4X1 be shipped?

ATV680C80T4X1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ATV680C80T4X1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ATV680C80T4X1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATV680C80T4X1, subject to availability and destination.

Specifications

Range of product	Altivar Process ATV600
Product specific application	Process and utilities
Product or component type	Variable speed drive
Device short name	ATV680
Product destination	Asynchronous motors, Synchronous motors
Provided equipment	Enclosure PanelSeT SFN, Graphical operating panel in the enclosure door, Main switch, Semiconductor fuses, Clean power filter with EMC filter, Active infeed converter module, Frequency inverter, Terminal block main supply, Terminal block motor
Colour of enclosure	Light grey (RAL 7035)
IP degree of protection	IP23 conforming to IEC 61800-5-1
Communication port protocol	EtherNet/IP, Modbus TCP, Modbus serial
Type of cooling	Forced convection
Supply frequency	50/60 Hz +/- 5 %
[Us] rated supply voltage	480 V +/- 10 %
Network number of phases	3 phases
Output voltage	<= power supply voltage
Permissible temporary current boost	1.1 x In during 60 s (normal duty), 1.5 x In during 60 s (heavy duty)
Speed drive output frequency	0.1…500 Hz
Speed accuracy	V/f mode: slip frequency, VC without feedback: 0.3 x slip frequency
Continuous output current	1420 A at 2.5 kHz for normal duty, 1140 A at 2.5 kHz for heavy duty
Energy efficiency ratio	0.965
Power dissipation in W	32580 W, total (normal duty), 24580 W, total (heavy duty), 3780 W, control part (normal duty), 2780 W, control part (heavy duty)
Volume of cooling air	5800 m3/h for power, 700 m3/h for control
Noise level	78 dB conforming to 86/188/EEC - physical agents (noise) directive
Motor power kW	900 kW for normal duty, 710 kW for heavy duty
Prospective line Isc	50 kA for 100 ms
Motor recommanded cable cross section	5 x (3 x 240 mm²) (normal duty), 6 x (3 x 185 mm²) (normal duty), 4 x (3 x 240 mm²) (heavy duty), 5 x (3 x 185 mm²) (heavy duty), 6 x (3 x 120 mm²) (heavy duty)
Option card	Slot A: communication module, Profibus DP V1, Slot A: communication module, PROFINET, Slot A: communication module, DeviceNet, Slot A: communication module, Modbus TCP/EtherNet/IP, Slot A: communication module, CANopen daisy chain RJ45, Slot A: communication module, CANopen SUB-D 9, Slot A: communication module, CANopen screw terminals, Slot A/slot B: digital and analog I/O extension module, Slot A/slot B: output relay extension module
Safety function	STO (safe torque off), level SIL 3 for <= 100 ms
EMC filter	Integrated conforming to IEC 61800-3, category C3, shielded cable with 150 m, Integrated conforming to IEC 61800-3, category C4, unshielded cable with 250 m
Discrete input number	8
Protection type	Motor: thermal protection, Motor: safe torque off, Motor: motor phase break, Drive: thermal protection, Drive: safe torque off, Drive: overheating, Drive: overcurrent (between output phases and earth), Drive: overload (output), Drive: short-circuit protection, Drive: motor phase break, Drive: overvoltage (DC bus), Drive: line supply overvoltage, Drive: line supply undervoltage, Drive: line supply phase loss, Drive: overspeed, Drive: break on the control circuit, Drive: short-circuit protection with semi-conductor fuse (main supply), Drive: fan monitoring
Discrete input type	DI1...DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm, DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V), STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2200 kOhm
Frequency resolution	Display unit: 0.1 Hz, Analog input: 0.012/50 Hz
Connector type	RJ45 (on the control block) for Modbus serial, RJ45 (on the control block) for Ethernet IP/Modbus TCP
Discrete input logic	Positive logic (source) (DI1...DI6), < 5 V (state 0), > 11 V (state 1), Negative logic (sink) (DI1...DI6), > 16 V (state 0), < 10 V (state 1), Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1), Positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1)
Physical interface	2-wire RS 485 for Modbus serial
Transmission frame	RTU for Modbus serial
Transmission rate	10/100 Mbit/s for Ethernet IP/Modbus TCP, 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
Exchange mode	Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Data format	8 bits, configurable odd, even or no parity for Modbus serial
Type of polarization	No impedance for Modbus serial
Analogue input number	3
Number of addresses	1…247 for Modbus serial
Supply	External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection, Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection, Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection
Analogue input type	AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits, AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits
Local signalling	LCD display unit front door operation function, status and configuration
Input compatibility	DI1...DI6: discrete input level 1 PLC conforming to IEC 61131-2, DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68, STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2
Analogue output number	2
Sampling duration	2 ms +/- 0.5 ms (DI1...DI4) - discrete input, 5 ms +/- 1 ms (DI5, DI6) - discrete input, 5 ms +/- 1 ms (AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms (AQ1, AQ2) - analog output
Analogue output type	Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits, Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits
Accuracy	+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input, +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
Linearity error	AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input, AQ1, AQ2: +/- 0.2 % for analog output
Relay output number	3
Refresh time	Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Isolation	Between power and control terminals
Relay output type	Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles, Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles, Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles
Maximum switching current	Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC, Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC, Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
Minimum switching current	Relay output R1, R2, R3: 5 mA at 24 V DC
Method of access	Slave Modbus TCP
Asynchronous motor control profile	Variable torque standard, Constant torque standard, Optimized torque mode
Synchronous motor control profile	Permanent magnet motor
Acceleration and deceleration ramps	S, U or customized, Linear adjustable separately from 0.01 to 9000 s
Motor slip compensation	Automatic whatever the load, Adjustable, Not available in permanent magnet motor law, Can be suppressed
Switching frequency	2...8 kHz adjustable with derating factor
Nominal switching frequency	2.5 kHz
Braking to standstill	By DC injection
Line current	1150 A at 480 V (normal duty), 912 A at 480 V (heavy duty)
Apparent power	956 kVA at 480 V (normal duty), 758 kVA at 480 V (heavy duty)
Maximum transient current	1562 A during 60 s per 10 min (normal duty), 1710 A during 60 s per 10 min (heavy duty)
Short-circuit protection	Upstream: 1600 A gG fuse (normal duty), Upstream: 1250 A gG fuse (heavy duty), Internal: 400 A 5 aR fuse
Electrical connection	Removable screw terminals, clamping capacity: 0.5...1.5 mm² for control, M12 bar for main supply, M12 bar for motor
cable entry	Bottom

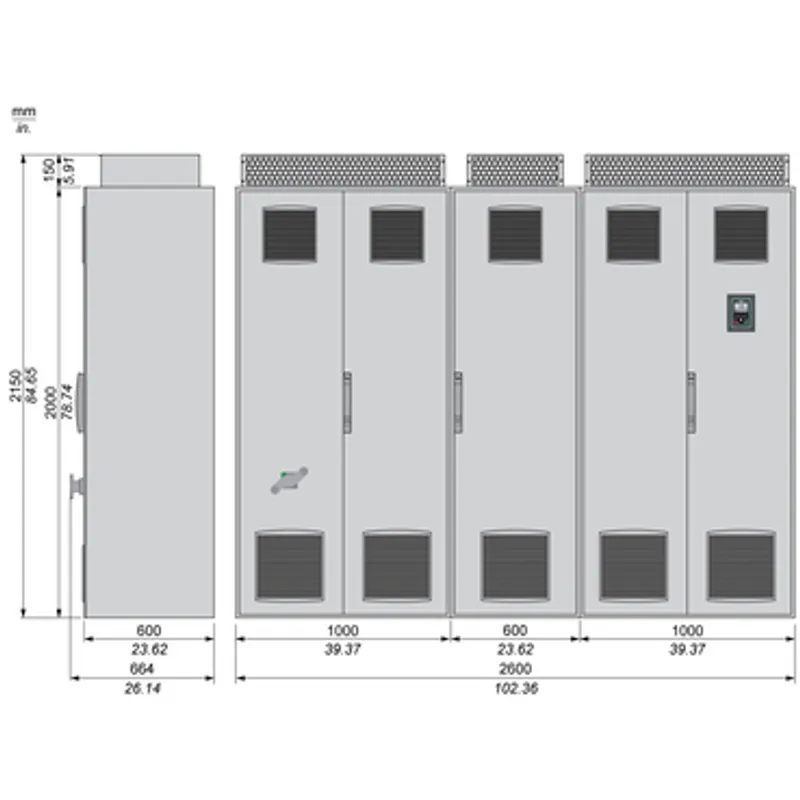

Width	2600 mm
Height	2150 mm
Depth	664 mm
Net weight	1950 kg
Insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
Pollution degree	2 conforming to IEC 61800-5-1
Vibration resistance	1.5 mm peak to peak (f= 3…10 Hz) conforming to IEC 60068-2-6, 0.6 gn (f= 10…200 Hz) conforming to IEC 60068-2-6, 3M3 conforming to IEC 60721-3-3
Shock resistance	4 gn for 11 ms conforming to IEC 60068-2-27, 3M2 conforming to IEC 60721-3-3
Relative humidity	5…95 % without condensation conforming to IEC 60068-2-3
Operating altitude	< 1000 m without derating, 1000...2000 m with current derating 1 % per 100 m, 2000...3800 m with current derating 1 % per 100 m for TT earthing system, 2000...3800 m with current derating 1 % per 100 m for TN earthing system, 2000...3800 m with current derating 1 % per 100 m for IT earthing system, 3800...4800 m with current derating 1 % per 100 m for TT earthing system, 3800...4800 m with current derating 1 % per 100 m for TN earthing system
Environmental characteristic	Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3, Dust pollution resistance class 3S3 conforming to IEC 60721-3-3, Humidity resistant class 3K3 conforming to IEC 60721-3-3
Product certifications	ATEX, C-Tick, EAC
Operating position	Vertical +/- 10 degree
Marking	CE
Standards	IEC 60204-1, IEC 61800-2, IEC 61800-3, IEC 61800-5-1
Maximum THDI	<5 % full load conforming to IEEE 519
Assembly style	In floor-standing enclosure low harmonic version
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Overvoltage category	III
Ambient air temperature for operation	-10…0 °C without derating (with option enclosure heating), 0…40 °C without derating, 40…50 °C with derating factor
Ambient air temperature for storage	-25…70 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	236 cm
Package 1 Width	280 cm
Package 1 Length	90 cm
Package 1 Weight	2030 kg
Warranty (in months)	18
