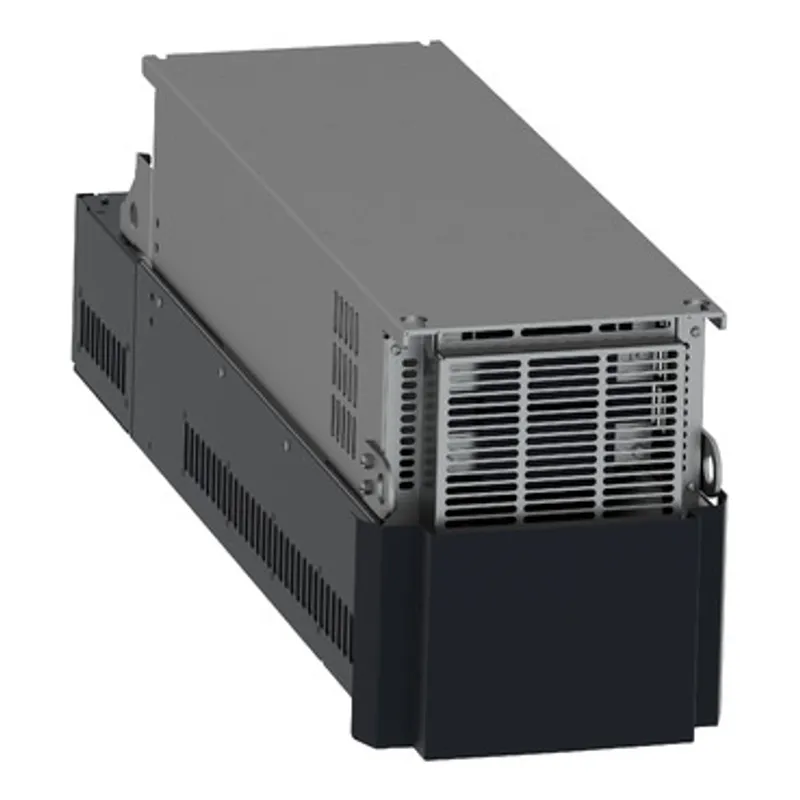

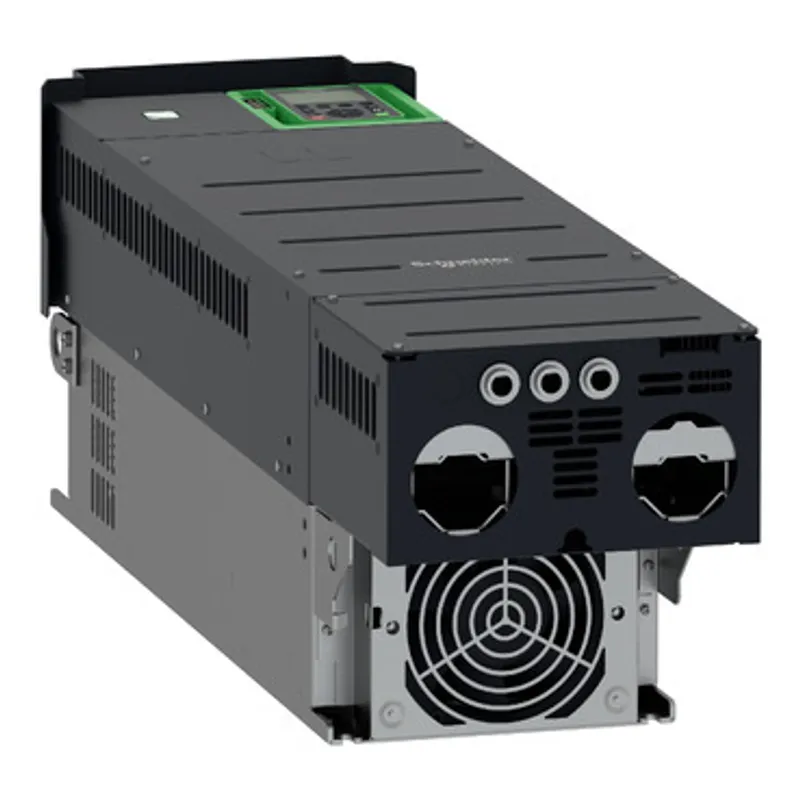

variable speed drive, Altivar Process ATV600, ATV630, 30kW, 40hp, 200 to 240V, IP21, UL type 1

Name: variable speed drive, Altivar Process ATV600, ATV630, 30kW, 40hp, 200 to 240V, IP21, UL type 1
Brand: Schneider Electric
SKU: ATV630D30M3

MPN: ATV630D30M3 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Altivar Process ATV600
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	56.6 kg

Shipping & availability

When can ATV630D30M3 be shipped?

ATV630D30M3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ATV630D30M3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ATV630D30M3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATV630D30M3, subject to availability and destination.

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 30kW / 40hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 22kW / 30hp for applications requiring significant overload (up to 150%). It weighs 56.6kg and its dimensions are, 290mm wide, 922mm high, 323mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.

Specifications

Range of product	Altivar Process ATV600
Product specific application	Process and utilities
Product or component type	Variable speed drive
Variant	Standard version
Device short name	ATV630
Mounting mode	Wall mount
Communication port protocol	Modbus serial, Ethernet, Modbus TCP
[Us] rated supply voltage	200...240 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	123.0 A
IP degree of protection	IP21 conforming to IEC 61800-5-1, IP21 conforming to IEC 60529
Product destination	Asynchronous motors, Synchronous motors
EMC filter	Without EMC filter
Degree of protection	UL type 1 conforming to UL 508C
Type of cooling	Forced convection
Supply frequency	50...60 Hz - 5...5 %
Motor power kW	30 kW (normal duty), 22 kW (heavy duty)
Motor power hp	40 hp normal duty, 30 hp heavy duty
Line current	104.7 A at 200 V (normal duty), 88.6 A at 240 V (normal duty), 78.3 A at 200 V (heavy duty), 67.1 A at 240 V (heavy duty)
Continuous output current	123 A at 2.5 kHz for normal duty, 92.6 A at 2.5 kHz for heavy duty
Speed drive output frequency	0.1…500 Hz
Safety function	STO (safe torque off) SIL 3
Option card	Slot A: communication module, Profibus DP V1, Slot A: communication module, PROFINET, Slot A: communication module, DeviceNet, Slot A: communication module, Modbus TCP/EtherNet/IP, Slot A: communication module, CANopen daisy chain RJ45, Slot A: communication module, CANopen SUB-D 9, Slot A: communication module, CANopen screw terminals, Slot A/slot B: digital and analog I/O extension module, Slot A/slot B: output relay extension module, Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link, Communication module, BACnet MS/TP, Communication module, Ethernet Powerlink
Discrete input number	8
Discrete input type	DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
Discrete input logic	Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1), Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1)
Discrete output number	0
Discrete output type	Relay outputs R1A, R1B, R1C 250 V AC 3000 mA, Relay outputs R1A, R1B, R1C 30 V DC 3000 mA, Relay outputs R2A, R2C 250 V AC 5000 mA, Relay outputs R2A, R2C 30 V DC 5000 mA, Relay outputs R3A, R3C 250 V AC 5000 mA, Relay outputs R3A, R3C 30 V DC 5000 mA
Analogue input number	3
Analogue input type	AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits, AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits, AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits
Analogue output number	2
Analogue output type	Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits, Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits, Software-configurable current DQ-, DQ+: 30 V DC, Software-configurable current DQ-, DQ+: 100 mA
Relay output number	3
Relay output type	Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles, Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles, Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles
Maximum switching current	Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC, Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC, Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
Minimum switching current	Relay output R1, R2, R3: 5 mA at 24 V DC
Network number of phases	3 phases
Physical interface	Ethernet, 2-wire RS 485
Method of access	Slave Modbus TCP
Transmission rate	10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Transmission frame	RTU
Output voltage	<= power supply voltage
Permissible temporary current boost	1.1 x In during 60 s (normal duty), 1.5 x In during 60 s (heavy duty)
Data format	8 bits, configurable odd, even or no parity
Type of polarization	No impedance
Frequency resolution	Display unit: 0.1 Hz, Analog input: 0.012/50 Hz
Electrical connection	Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16, Line side: screw terminal 70...120 mm²/AWG 1/0...250 kcmil, Motor: screw terminal 70...120 mm²/AWG 2/0...250 kcmil
Connector type	RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP, RJ45 (on the remote graphic terminal) for Modbus serial
Exchange mode	Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Number of addresses	1…247 for Modbus serial
Supply	External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection, Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection, Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection
Local signalling	3 LEDs for local diagnostic, 3 LEDs (dual colour) for embedded communication status, 4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage
Input compatibility	DI1...DI6: discrete input level 1 PLC conforming to IEC 61131-2, DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68, STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2
Sampling duration	2 ms +/- 0.5 ms (DI1...DI4) - discrete input, 5 ms +/- 1 ms (DI5, DI6) - discrete input, 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms (AO1) - analog output
Accuracy	+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input, +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Linearity error	AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input, AO1, AO2: +/- 0.2 % for analog output
Refresh time	Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Isolation	Between power and control terminals
Discrete and process manufacturing	Building - HVAC compressor centrifugal, Food and beverage processing other application, Mining mineral and metal fan, Mining mineral and metal pump, Oil and gas fan, Water and waste water other application, Building - HVAC screw compressor, Food and beverage processing pump, Food and beverage processing fan, Food and beverage processing atomization, Oil and gas electro submersible pump (ESP), Oil and gas water injection pump, Oil and gas jet fuel pump, Oil and gas compressor for refinery, Water and waste water centrifuge pump, Water and waste water positive displacement pump, Water and waste water electro submersible pump (ESP), Water and waste water screw pump, Water and waste water lobe compressor, Water and waste water screw compressor, Water and waste water compressor centrifugal, Water and waste water fan, Water and waste water conveyor, Water and waste water mixer
Power range	30…50 kW at 200…240 V 3 phases
Enclosure mounting	Wall mounted
4 quadrant operation possible	False
Asynchronous motor control profile	Constant torque standard, Optimized torque mode, Variable torque standard
Synchronous motor control profile	Permanent magnet motor, Synchronous reluctance motor
Maximum output frequency	500 kHz
Acceleration and deceleration ramps	Linear adjustable separately from 0.01...9999 s
Motor slip compensation	Adjustable, Can be suppressed, Not available in permanent magnet motor law, Automatic whatever the load
Switching frequency	2.5...8 kHz with derating factor, 2...8 kHz adjustable
Nominal switching frequency	2.5 kHz
Braking to standstill	By DC injection
Brake chopper integrated	False
Maximum input current	104.7 A
Maximum output voltage	240.0 V
Apparent power	36.8 kVA at 240 V (normal duty), 27.9 kVA at 240 V (heavy duty)
Maximum transient current	135.3 A during 60 s (normal duty), 138.9 A during 60 s (heavy duty)
Network frequency	50...60 Hz
Prospective line Isc	50 kA
Base load current at high overload	92.6 A
Base load current at low overload	123.0 A
Power dissipation in W	Natural convection: 129 W at 200 V, switching frequency 2.5 kHz, Forced convection: 862 W at 200 V, switching frequency 2.5 kHz
With safety function Safely Limited Speed (SLS)	False
With safety function Safe brake management (SBC/SBT)	False
With safety function Safe Operating Stop (SOS)	False
With safety function Safe Position (SP)	False
With safety function Safe programmable logic	False
With safety function Safe Speed Monitor (SSM)	False
With safety function Safe Stop 1 (SS1)	False
With sft fct Safe Stop 2 (SS2)	False
With safety function Safe torque off (STO)	True
With safety function Safely Limited Position (SLP)	False
With safety function Safe Direction (SDI)	False
Protection type	Thermal protection: motor, Safe torque off: motor, Motor phase break: motor, Thermal protection: drive, Safe torque off: drive, Overheating: drive, Overcurrent between output phases and earth: drive, Overload of output voltage: drive, Short-circuit protection: drive, Motor phase break: drive, Overvoltages on the DC bus: drive, Line supply overvoltage: drive, Line supply undervoltage: drive, Line supply phase loss: drive, Overspeed: drive, Break on the control circuit: drive
Quantity per set	1
Width	290 mm
Height	922 mm
Depth	323 mm
Net weight	56.6 kg
Insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
Noise level	62.4 dB
Pollution degree	2
Vibration resistance	1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Relative humidity	5…95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for operation	-15…50 °C (without derating), 50…60 °C (with derating factor)
Operating altitude	<= 1000 m without derating, 1000...4800 m with current derating 1 % per 100 m
Operating position	Vertical +/- 10 degree
Product certifications	ATEX zone 2/22, DNV-GL, UL, TÜV, ATEX INERIS, CSA
Marking	CE
Standards	UL 508C, IEC 61800-3, IEC 61800-3 environment 1 category C2, EN/IEC 61800-3 environment 2 category C3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Maximum THDI	<48 % from 80...100 % of load conforming to IEC 61000-3-12
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3, Class 3S3 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Permitted relative humidity (during operation)	Class 3K5 according to EN 60721-3
Volume of cooling air	295 m3/h
Overvoltage category	III
Regulation loop	Adjustable PID regulator
Ambient air transport temperature	-40…70 °C
Ambient air temperature for storage	-40…70 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	59.000 cm
Package 1 Width	44.000 cm
Package 1 Length	111.000 cm
Package 1 Weight	63.000 kg
Warranty (in months)	18
