APC Replacement Battery Cartridge, VRLA, 9Ah, 48V DC, 2-year warranty
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | APC Replacement Battery Cartridges |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 10.1 kg |
Shipping & availability
When can APCRBCV209 be shipped?
APCRBCV209 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up APCRBCV209 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for APCRBCV209 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for APCRBCV209, subject to availability and destination.

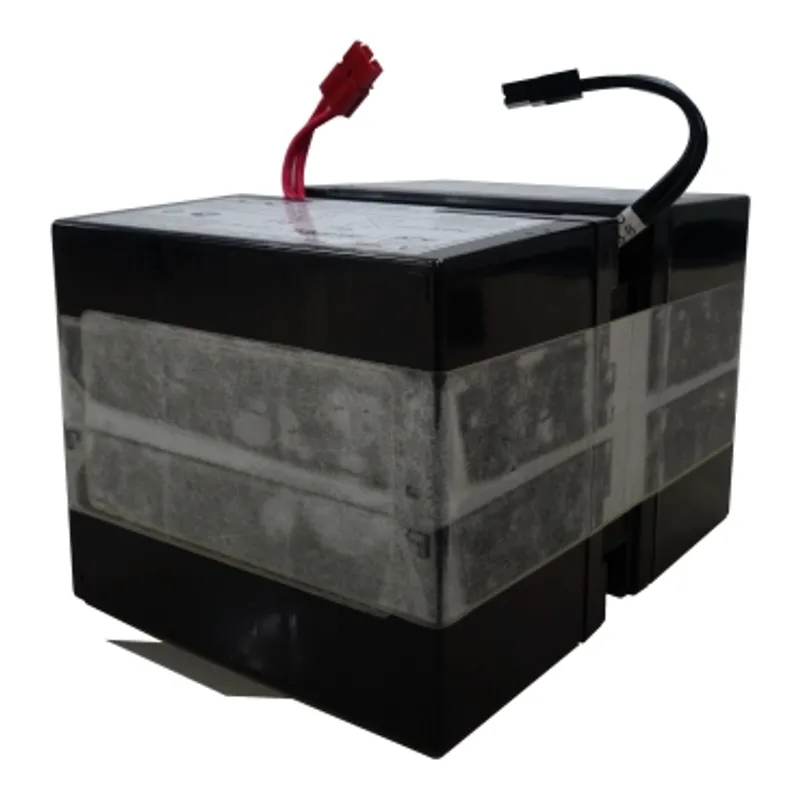

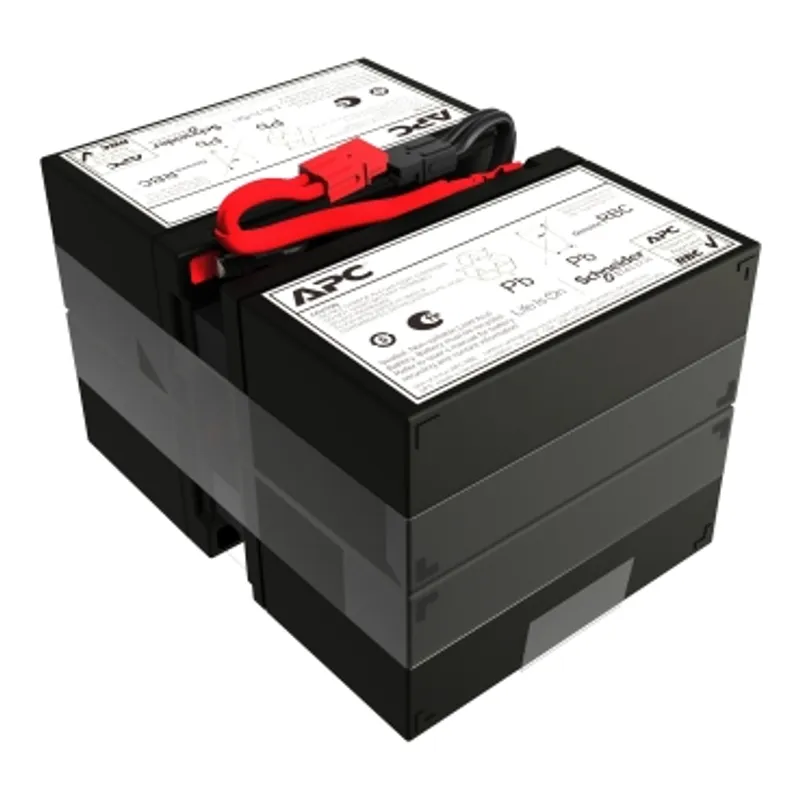

This is a APC Replacement Battery Cartridge designed for complete compatibility with APC Easy UPS. APCRBCV209 9Ah 48Vdc replaceable battery is tested and approved for restoring the Easy UPS performance to its original specifications. The tower replaceable battery module is made of four cells. It is a VRLA replacement battery with a 2-year warranty. This RBC is compatible with Easy UPS SMV/SMVS 3000VA tower models.
Specifications
Specifications
| Lead time | Usually in Stock |
| Product or component type | Replacement battery cartridge |
| Main Output Voltage | 48 V DC |
| Number of rack unit | 0U |
| Battery type | VRLA |
| Range of product | Replacement Battery Cartridges |
| Battery location | Internal battery |
| Number of battery blocks per string | 4 |
| Number of battery free slots | 0 |
| Number of battery filled slots | 0 |
| Battery voltage | 48 V |
| Number of battery replacement quantity | 1 |
| Height | 130 mm |
| Width | 151 mm |
| Depth | 209 mm |
| Net weight | 10.1 kg |
| Mounting mode | Not rack-mountable |
| USB compatible | No |
| Battery capacity | 9 Ah |
| Product certifications | CB |
| Ambient air temperature for operation | 0…40 °C |
| Operating altitude | 0...3000 m |
| Relative humidity | 0…95 % non-condensing |
| Ambient air temperature for storage | -15…40 °C |
| Storage altitude | 0…3000 m |
| Storage Relative Humidity | 10…95 % non-condensing |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.2 cm |
| Package 1 Width | 22.8 cm |
| Package 1 Length | 28.6 cm |
| Package 1 Weight | 11.5 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 57.5 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 146.5 kg |
| Warranty (in months) | 24 |
