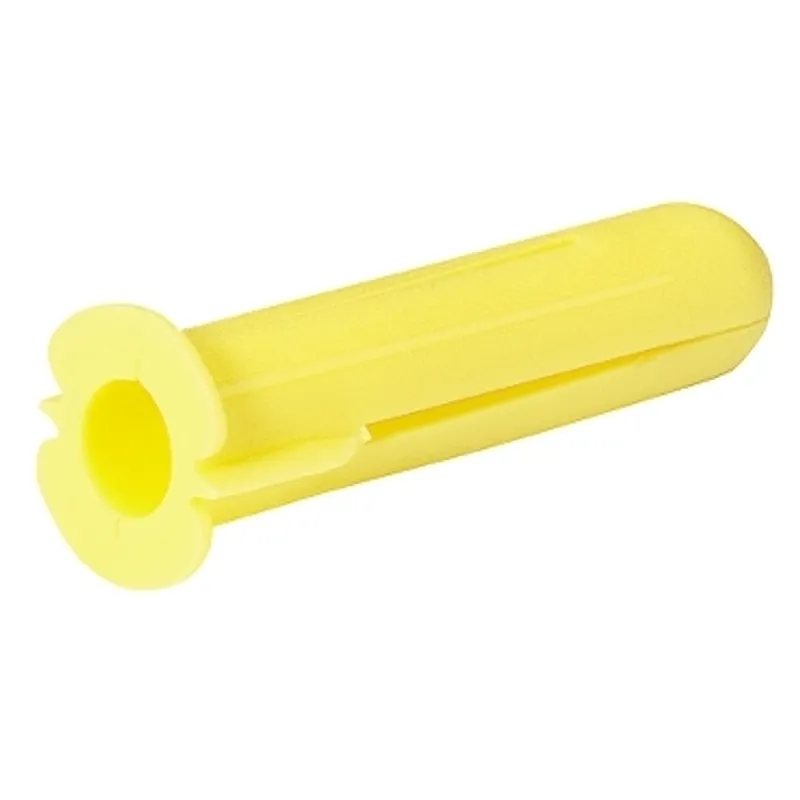

Thorsman - TP 1 - wall plug - without screw - set of 100
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cabling and fixing for demanding professionals |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0 kg |
Shipping & availability
When can 1001025 be shipped?
1001025 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1001025 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1001025 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1001025, subject to availability and destination.
Thorsman TP 1001025 (set of 100 pieces) is a wall plug for plasterboard, low density concrete, stone, bricks and blocks (most building materials) With a length of 22 mm, the plug is especially suitable for light-weight installations where shear loads are dominating For perfect wall fixing, use a wood screw with a diameter of 3.5 mm to 5 mm Material: Polyethylene (HD) Drill diameter: 5 mm in ALC concrete, 5.5 mm in brick, 5.5 mm in concrete For mounting where pull-out loads dominate, or by high temperatures, metal fixings are recommended TP has a smooth surface to get high friction against the wall of the hole Four slits spread the radial expansion in all dimensions The wall plug has a collar and wings to prevent the plug from rotating and disappearing into the hole TP has a unique Colour CodeTM to identify each plug size
Specifications
Specifications
| Range of product | Thorsman |
| Product or component type | Wall plug |
| Device short name | TP |
| Device application | Lightweight installation |
| Drilling diameter | 5.5 mm concrete, 5.5 mm brick, 5 mm ALC concrete |
| Minimum drilling depth | 25 mm |
| Screw diameter | 3.5…5 mm |
| Material | PEHD (polyethylene high density) |
| Practical load capacity | Shear: 50 kg for concrete C25 4.5), Pull-out load: 25 kg for concrete C25 6), Shear: 40 kg for solid brick 4.5), Pull-out load: 20 kg for solid brick 6), Shear: 10 kg for low density concrete 500 and expanded clay 4.5), Pull-out load: 4 kg for low density concrete 500 and expanded clay 6) |
| Colour tint | Yellow |
| Ambient air temperature for operation | -50…80 °C |
| Diameter | 5.5 mm |
| Length | 22 mm |
| Quantity per set | Set of 100 |
| Sale per indivisible quantity | 1 |
| Net weight | 0.00035 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.400 cm |
| Package 1 Width | 8.600 cm |
| Package 1 Length | 20.500 cm |
| Package 1 Weight | 1.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 9.000 cm |
| Package 2 Width | 6.000 cm |
| Package 2 Length | 4.000 cm |
| Package 2 Weight | 44.000 g |
| Warranty | 18 months |
