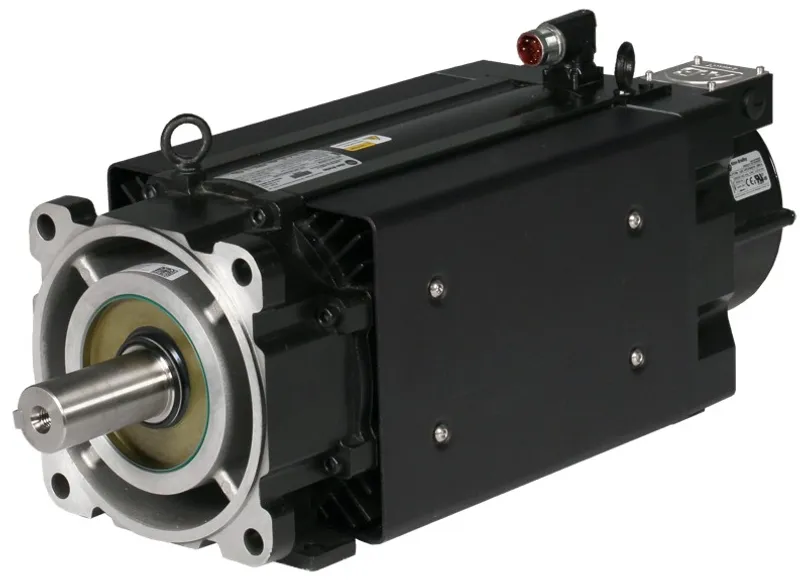

Rockwell Automation / Allen-Bradley VPC-B3003A-SK74FS

Name: Rockwell Automation / Allen-Bradley VPC-B3003A-SK74FS
Brand: Rockwell Automation / Allen-Bradley
SKU: VPC-B3003A-SK74FS

MPN: VPC-B3003A-SK74FS · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Kinetix VPC Continuous-duty Servo Motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can VPC-B3003A-SK74FS be shipped?

VPC-B3003A-SK74FS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VPC-B3003A-SK74FS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VPC-B3003A-SK74FS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VPC-B3003A-SK74FS, subject to availability and destination.

VPC Continuous Duty Servo Motor, (B) 400V AC, (300) 300mm Bolt Circle Frame Size, (3) Three Magnet Stacks, (A) Winding, 1500 RPM Rated Speed, (S) 21 bit Single-turn, 1024 sin/cos, absolute encoder (Hiperface), (K) Keyless Shaft, (7) Dual SpeedTec Right Angle DIN Connector, 180° rotatable, (4) 24V DC Holding Brake, (F) Forced ventilation, (S) Shaft Seal Standard (IP65)

Specifications

Bulletin Number	VPC Continuous Duty Servo Motor
Voltage Class	(B) 400V AC
Frame Size	(300) 300mm Bolt Circle Frame Size
Stack Length	(3) Three Magnet Stacks
Rated Speed	(A) Winding, 1500 RPM Rated Speed
Feedback	(S) 21 bit Single-turn, 1024 sin/cos, absolute encoder (Hiperface)
Shaft Extension	(K) Keyless Shaft
Connectors	(7) Dual SpeedTec Right Angle DIN Connector, 180° rotatable
Brake Option	(4) 24V DC Holding Brake
Cooling	(F) Forced ventilation
Factory Options	(S) Shaft Seal Standard (IP65)
Torque Rating	140.3/1242 Nm/LB.IN
