Pepperl Fuchs VMC-2+P/V2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Valve Connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VMC-2+P/V2 be shipped?
VMC-2+P/V2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VMC-2+P/V2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VMC-2+P/V2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VMC-2+P/V2, subject to availability and destination.

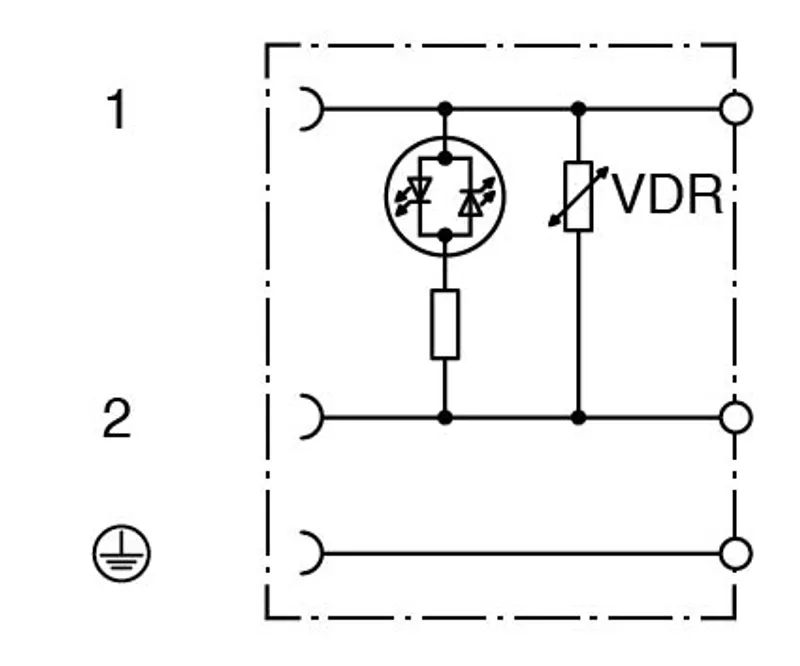

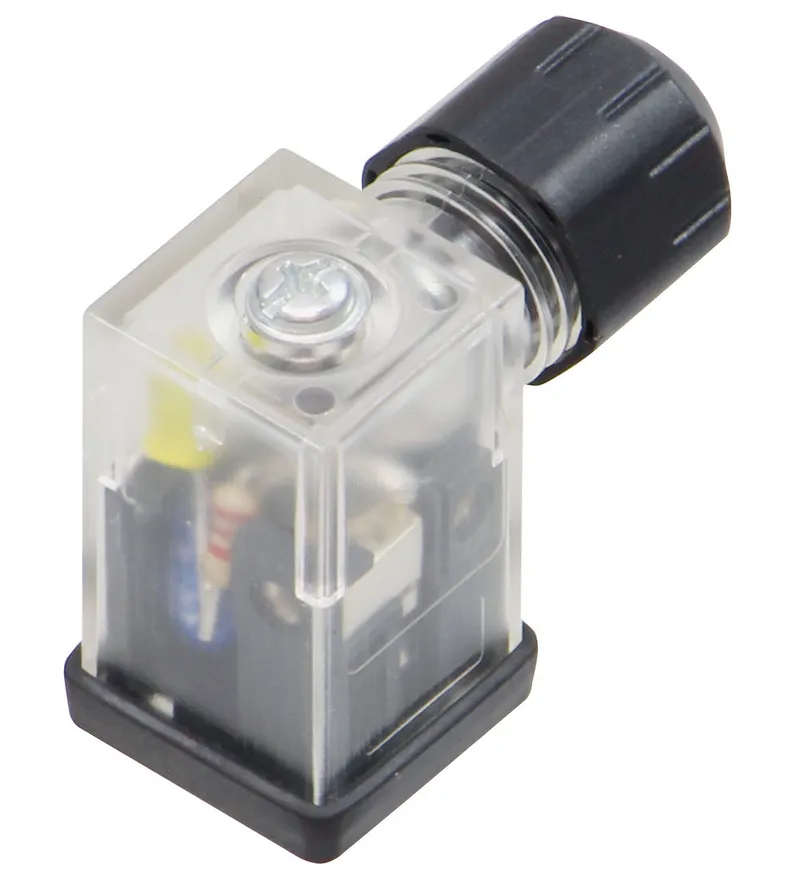

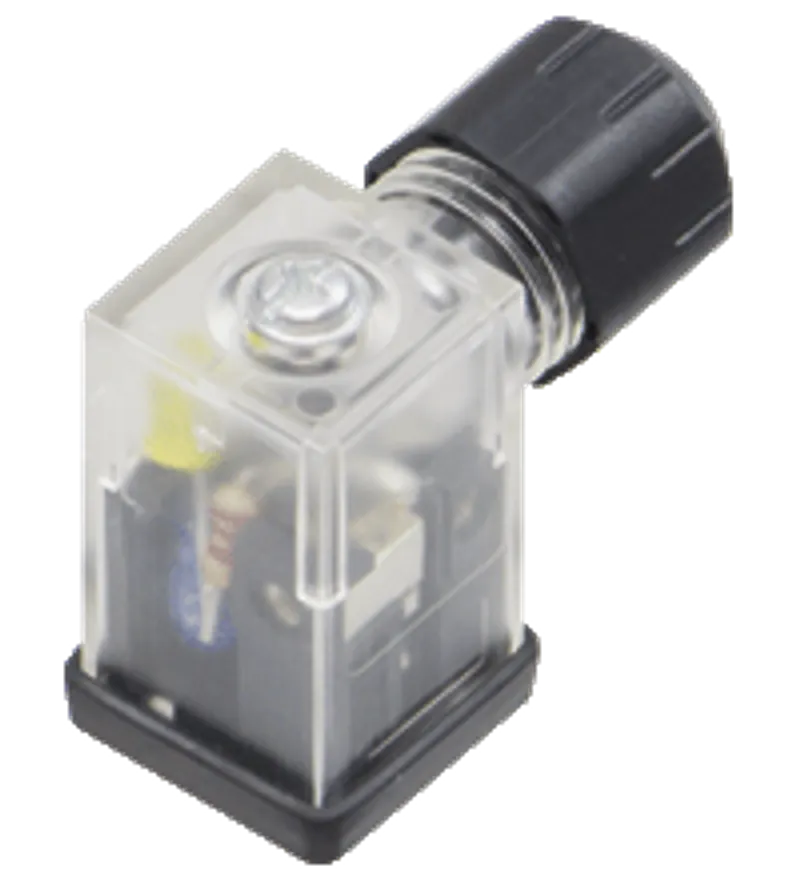

Valve connector, non pre-wired. Valve connector, Form C, Varistor, non pre-wired. Number of pins: 2 + PE. Connection 1: Valve connector DIN. Construction type 1: angled. LED yellow: Functional display. Operating voltage: 24 V AC/DC. Operating current: max. 10 A. Volume resistance: < 4 mω. Suppression: Varistor. Ambient temperature: -25 ... 90 °C (-13 ... 194 °F). Storage temperature: -40 ... 125 °C (-40 ... 257 °F). Degree of protection: IP67. Connection: Valve connector Form C screw terminals for max. 1.5 mm2 ; 16 AWG. Material: . Contact surfaceAgBodyPA, transparentSealNBR: . Contact surface: Ag. Body: PA, transparent. Seal: NBR. Cable: . Sheath diameter3 ... 5.5 mm: . Sheath diameter: 3 ... 5.5 mm. Mass: 15 g
Specifications
General specifications
| Number of pins | 2 + PE |
| Connection 1 | Valve connector DIN |
| Construction type 1 | angled |
Indicators/operating means
| LED yellow | Functional display |
Electrical specifications
| Operating voltage | 24 V AC/DC UB |
| Operating current | max. 10 A IB |
| Volume resistance | < 4 mω |
| Suppression | Varistor |
Ambient conditions
| Ambient temperature | -25 ... 90 °C (-13 ... 194 °F) |
| Storage temperature | -40 ... 125 °C (-40 ... 257 °F) |
Mechanical specifications
| Degree of protection | IP67 |

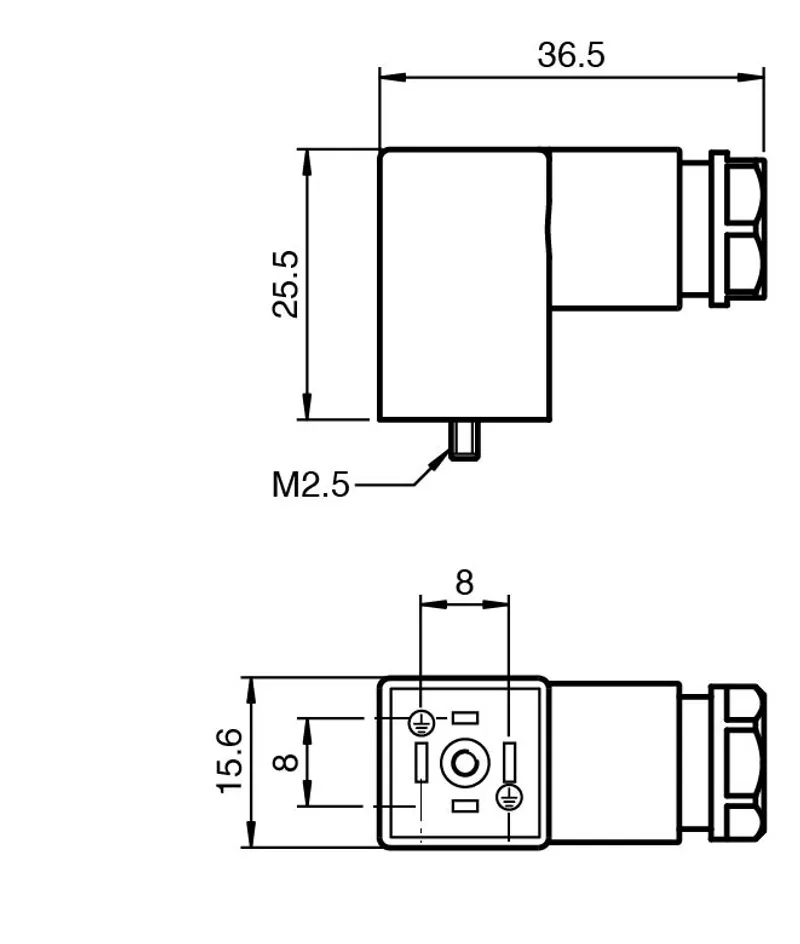

| Connection | Valve connector Form C screw terminals for max. 1.5 mm2 ; 16 AWG |
| Material | |
| Contact surfaceAgBodyPA, transparentSealNBR | Contact surface |
| Contact surface | Ag |
| Body | PA, transparent |
| Seal | NBR |
| Cable | |
| Sheath diameter3 ... 5.5 mm | Sheath diameter |
| Sheath diameter | 3 ... 5.5 mm |
| Mass | 15 g |
