Pepperl Fuchs V1-8A-E2-V112
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Passive Splitters |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1-8A-E2-V112 be shipped?
V1-8A-E2-V112 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1-8A-E2-V112 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1-8A-E2-V112 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1-8A-E2-V112, subject to availability and destination.

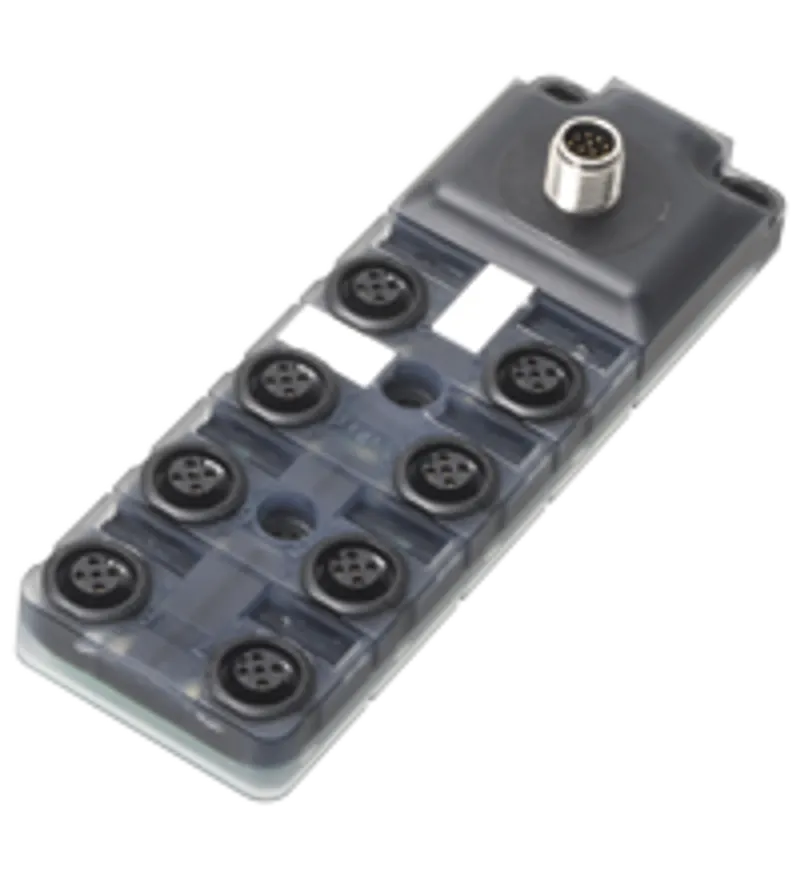

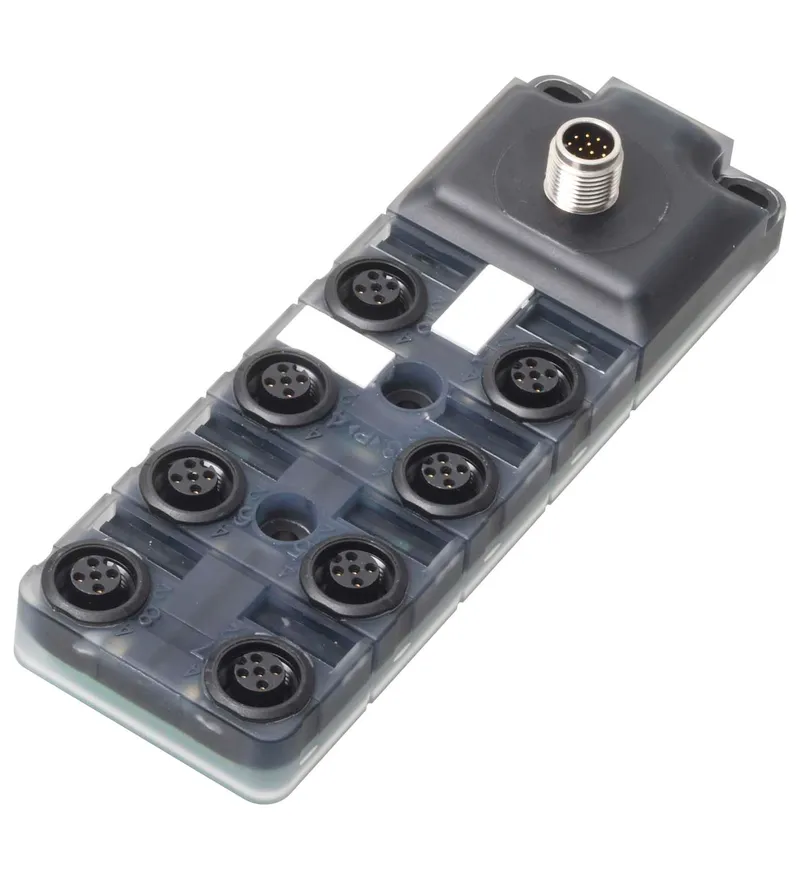

Splitter boxes. 8-way passive distributor with M12 plug, 12-pin. Connector 1: . ConnectionsocketConstruction type8x M12Lockingscrew connectionNumber of pins5CodingA-coded: . Connection: socket. Construction type: 8x M12. Locking: screw connection. Number of pins: 5. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM12Lockingscrew connectionNumber of pins12CodingA-coded: . Connection: plug. Construction type: M12. Locking: screw connection. Number of pins: 12. Coding: A-coded. UL File Number: E223772. LED green: supply voltage each module. LED yellow: I/O status indication. Operating voltage: 24 V DC. Operating current: max. 1.5 A per contact. Current loading capacity: ≤ 1.5 A per contact 1.5 A Total current. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP65 / IP67. Material: . HousingPlastic ABS, flame resistant: . Housing: Plastic ABS, flame resistant. Mass: approx. 150 g
Specifications
General specifications
| Connector 1 | |
| ConnectionsocketConstruction type8x M12Lockingscrew connectionNumber of pins5CodingA-coded | Connection |
| Connection | socket |
| Construction type | 8x M12 |
| Locking | screw connection |
| Number of pins | 5 |
| Coding | A-coded |
| Connector 2 | |
| ConnectionplugConstruction typeM12Lockingscrew connectionNumber of pins12CodingA-coded | Connection |
| Connection | plug |
| Construction type | M12 |
| Locking | screw connection |
| Number of pins | 12 |
| Coding | A-coded |
| UL File Number | E223772 |
Indicators/operating means
| LED green | supply voltage each module |
| LED yellow | I/O status indication |
Electrical specifications
| Operating voltage | 24 V DC UB |
| Operating current | max. 1.5 A per contact IB |
| Current loading capacity | ≤ 1.5 A per contact 1.5 A Total current |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
Ambient conditions
| Ambient temperature | -20 ... 70 °C (-4 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP65 / IP67 |
| Material | |
| HousingPlastic ABS, flame resistant | Housing |
| Housing | Plastic ABS, flame resistant |
| Mass | approx. 150 g |
