Pepperl Fuchs ST 128
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ST 128 be shipped?
ST 128 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ST 128 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ST 128 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ST 128, subject to availability and destination.

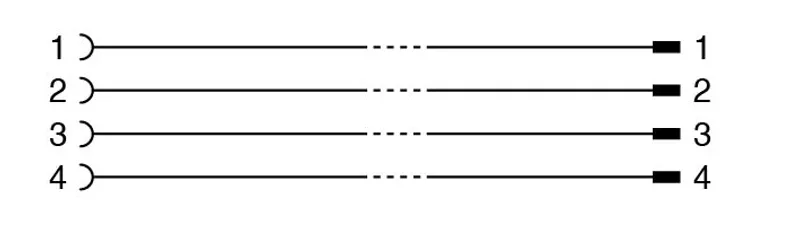

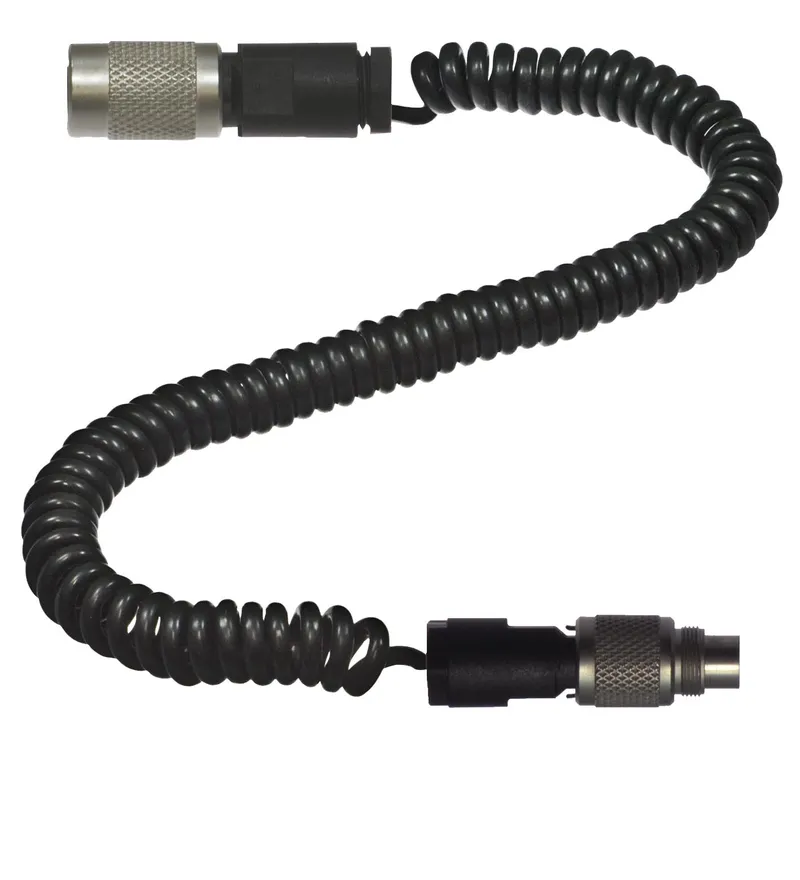

Connection cable. Double-ended cordset, M9 to M9, PUR cable, 4-pin. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M9. Connection 2: plug. Construction type 2: straight. Threading 2: M9. Operating voltage: max. 125 V DC. Operating current: max. 3 A. Volume resistance: < 3 mΩ. Ambient temperature: Body: -40 ... 85 °C (-40 ... 185 °F) Cable: -25 ... 70 °C (-13 ... 158 °F). Pollution degree: 1. Degree of protection: IP40. Cable code: Li 12Y 11Y 4 x 0.14. Material: . ContactsCuSnContact surfaceAuBodyPA , blackCore insulationTPE-E: . Contacts: CuSn. Contact surface: Au. Body: PA , black. Core insulation: TPE-E. Cable: . Sheath diameter∅ 4 mmColorblackCores4 x 0.14 mm2Conductor construction18 x 0.1 mm ∅LengthL0.75 ... 3 m: . Sheath diameter: ∅ 4 mm. Color: black. Cores: 4 x 0.14 mm2. Conductor construction: 18 x 0.1 mm ∅. Length: 0.75 ... 3 m. Mass: 121.8 g
Specifications
General specifications

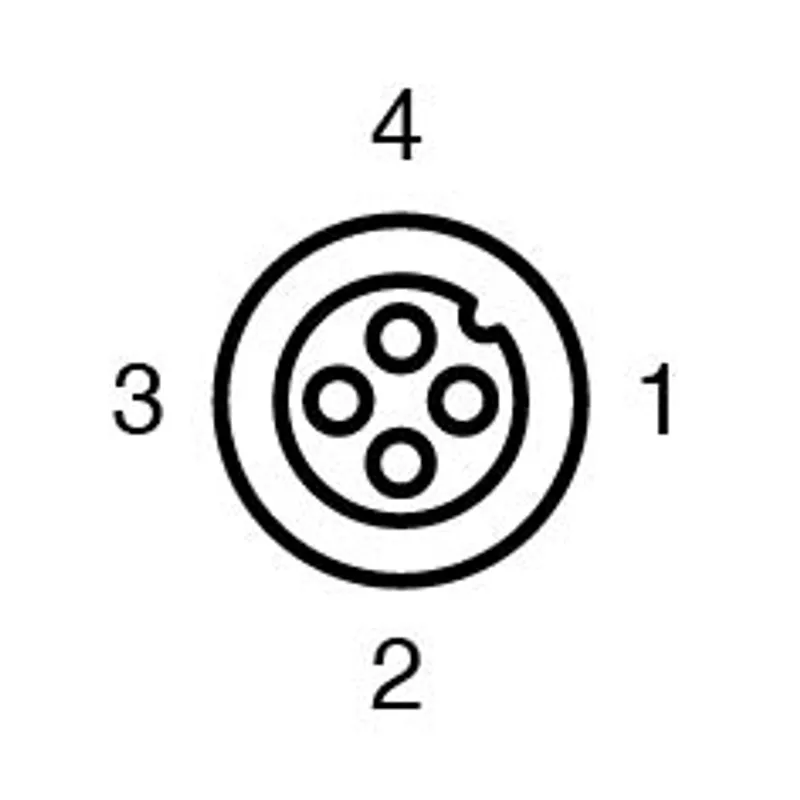

| Number of pins | 4 |
| Connection 1 | socket |
| Construction type 1 | straight |
| Threading 1 | M9 |
| Connection 2 | plug |
| Construction type 2 | straight |
| Threading 2 | M9 |
Electrical specifications
| Operating voltage | max. 125 V DC UB |
| Operating current | max. 3 A IB |
| Volume resistance | < 3 mΩ |
Ambient conditions
| Ambient temperature | Body: -40 ... 85 °C (-40 ... 185 °F) Cable: -25 ... 70 °C (-13 ... 158 °F) |
| Pollution degree | 1 |
Mechanical specifications
| Degree of protection | IP40 |
| Cable code | Li 12Y 11Y 4 x 0.14 |
| Material | |
| ContactsCuSnContact surfaceAuBodyPA , blackCore insulationTPE-E | Contacts |
| Contacts | CuSn |
| Contact surface | Au |
| Body | PA , black |
| Core insulation | TPE-E |
| Cable | |
| Sheath diameter∅ 4 mmColorblackCores4 x 0.14 mm2Conductor construction18 x 0.1 mm ∅LengthL0.75 ... 3 m | Sheath diameter |
| Sheath diameter | ∅ 4 mm |
| Color | black |
| Cores | 4 x 0.14 mm2 |
| Conductor construction | 18 x 0.1 mm ∅ |
| Length | 0.75 ... 3 m L |
| Mass | 121.8 g |
