Pepperl Fuchs ST 04
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor Testers and Tools |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ST 04 be shipped?
ST 04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ST 04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ST 04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ST 04, subject to availability and destination.

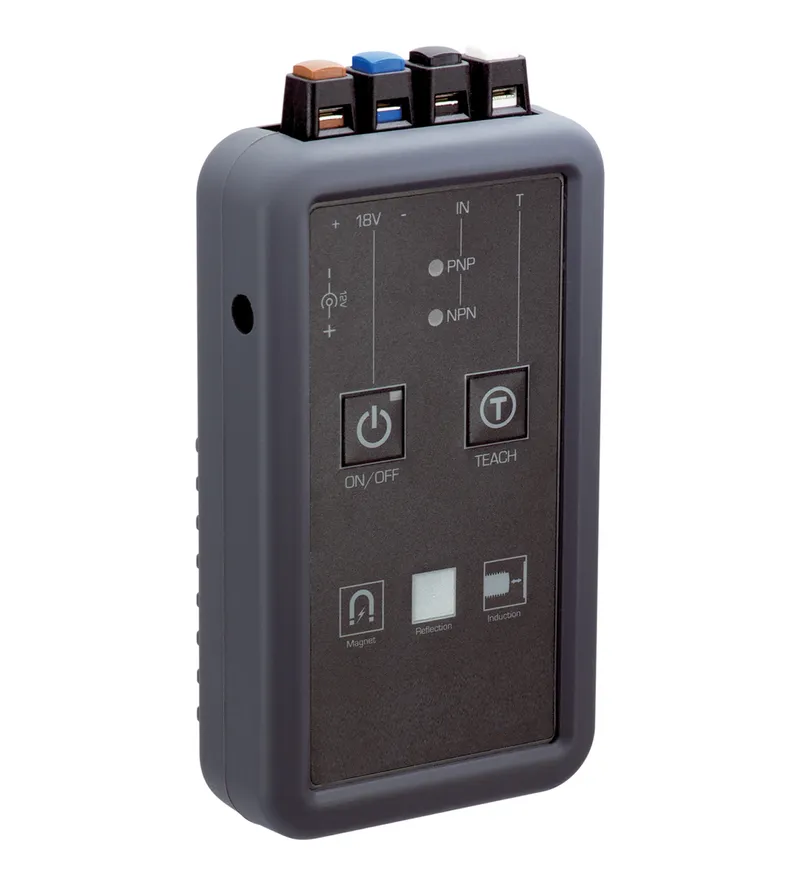

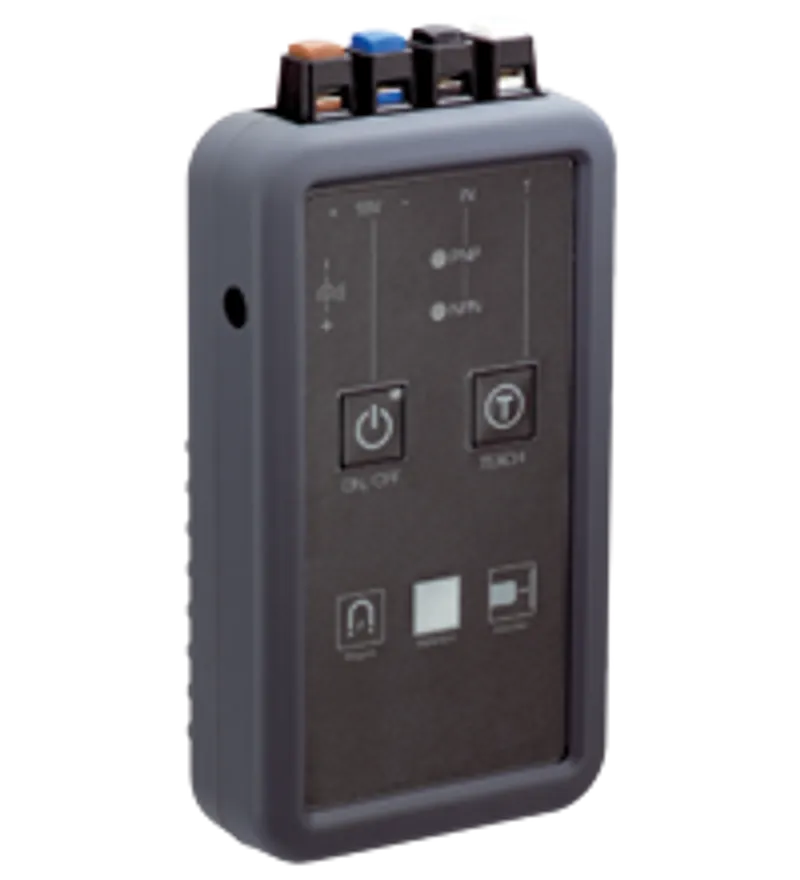

Sensor tester. Sensor tester, Two LEDs (NPN/PNP) for displaying the switching state, Test areas on the device: magnet, reflection, induction, Suitable for ultrasonic sensors, Usable for 3- and 4-wire sensors in NPN- and PNP-technique as well as with push-pull outputs, Easy connection due to quick-action clamp terminals. Control elements: membrane keys : ON / OFF TEACH. LED green: operating. LED yellow: switching state. Operating voltage: input voltage 4.5 V DC input voltage 12 V DC with Power supply output voltage 18 V DC. No-load supply current: 40 mA. Current loading capacity: max. 60 mA battery operated , 240 mA with Power supply. Degree of protection: EN 60529. Ambient temperature: -20 ... 40 °C (-4 ... 104 °F). Degree of protection: IP21. Connection: 4x quick-action clamp terminal brown L+ black IN white TEACH blue L-. Material: . Housingblack ABSProtective sleevesilicone: . Housing: black ABS. Protective sleeve: silicone. Mass: 394 g. Dimensions: . Height141 mmWidth82 mmDepth34 mm: . Height: 141 mm. Width: 82 mm. Depth: 34 mm. Note: suitable for PNP , NPN and sensors with Push-pull (4 in 1) output. Scope of delivery: 1x Sensor tester , 1x silicone protective sleeve. Optional accessories: Sensor connecting cables CBL-SET-ST 04 Power supply 12 V DC, barrel connector outer ∅ 3.5 mm, inner ∅ 1.5 mm. Necessary accessories: 3x battery size AA 1.5 V (not included with delivery)
Specifications
Indicators/operating means
| Control elements | membrane keys : ON / OFF TEACH |
| LED green | operating |
| LED yellow | switching state |
Electrical specifications
| Operating voltage | input voltage 4.5 V DC input voltage 12 V DC with Power supply output voltage 18 V DC UB |
| No-load supply current | 40 mA I0 |
| Current loading capacity | max. 60 mA battery operated , 240 mA with Power supply |
Conformity
| Degree of protection | EN 60529 |
Ambient conditions
| Ambient temperature | -20 ... 40 °C (-4 ... 104 °F) |
Mechanical specifications
| Degree of protection | IP21 |

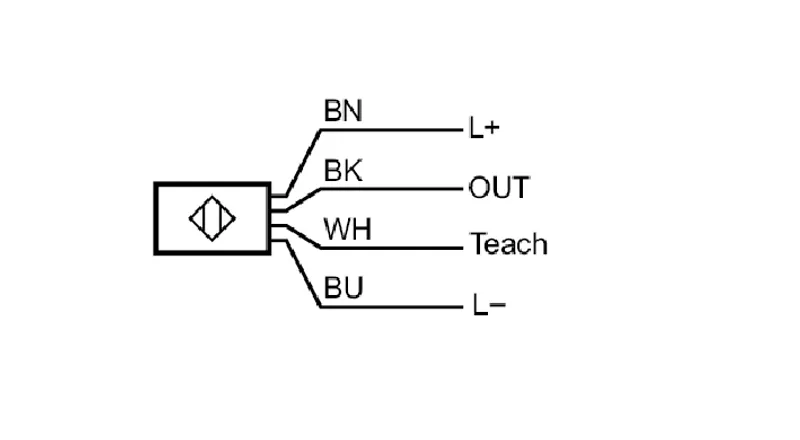

| Connection | 4x quick-action clamp terminal brown L+ black IN white TEACH blue L- |
| Material | |
| Housingblack ABSProtective sleevesilicone | Housing |
| Housing | black ABS |
| Protective sleeve | silicone |
| Mass | 394 g |
| Dimensions | |

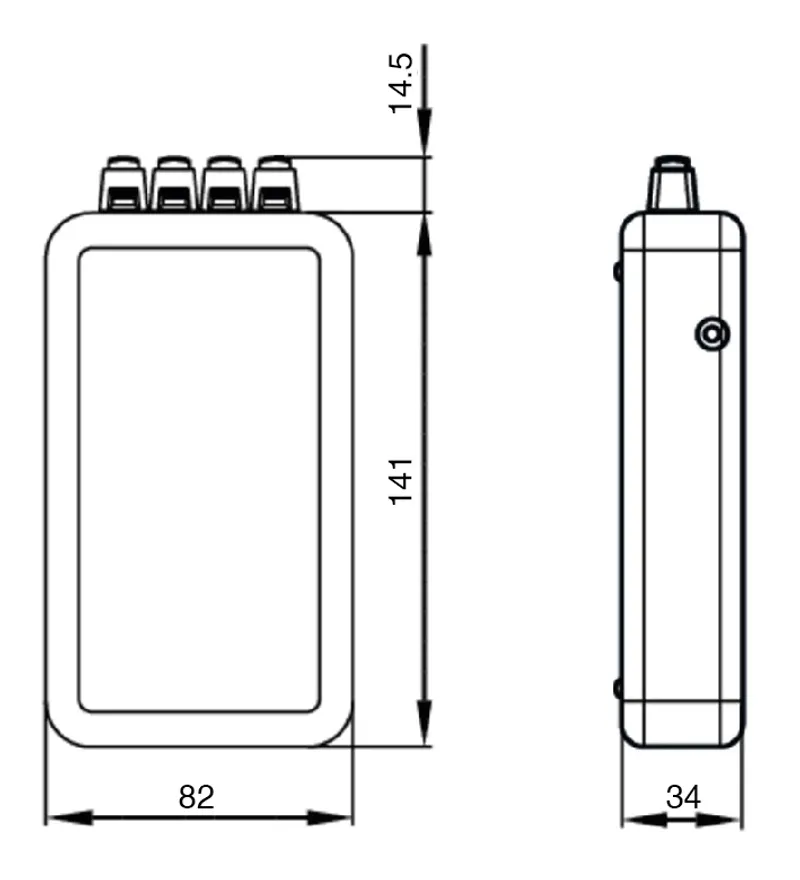

| Height141 mmWidth82 mmDepth34 mm | Height |
| Height | 141 mm |
| Width | 82 mm |
| Depth | 34 mm |
General information
| Note | suitable for PNP , NPN and sensors with Push-pull (4 in 1) output |
| Scope of delivery | 1x Sensor tester , 1x silicone protective sleeve |
Accessories
| Optional accessories | Sensor connecting cables CBL-SET-ST 04 Power supply 12 V DC, barrel connector outer ∅ 3.5 mm, inner ∅ 1.5 mm |
| Necessary accessories | 3x battery size AA 1.5 V (not included with delivery) |
