Pepperl Fuchs SPJB-**-FB*.***
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Passive Splitters |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SPJB-**-FB*.*** be shipped?
SPJB-**-FB*.*** is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SPJB-**-FB*.*** in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SPJB-**-FB*.*** and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SPJB-**-FB*.***, subject to availability and destination.

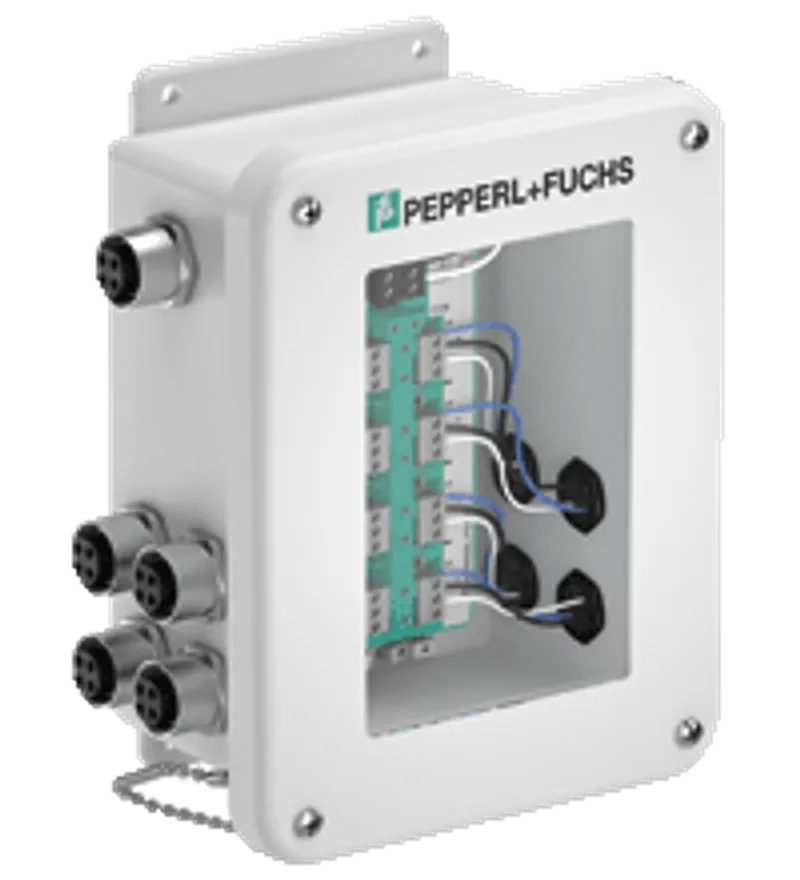

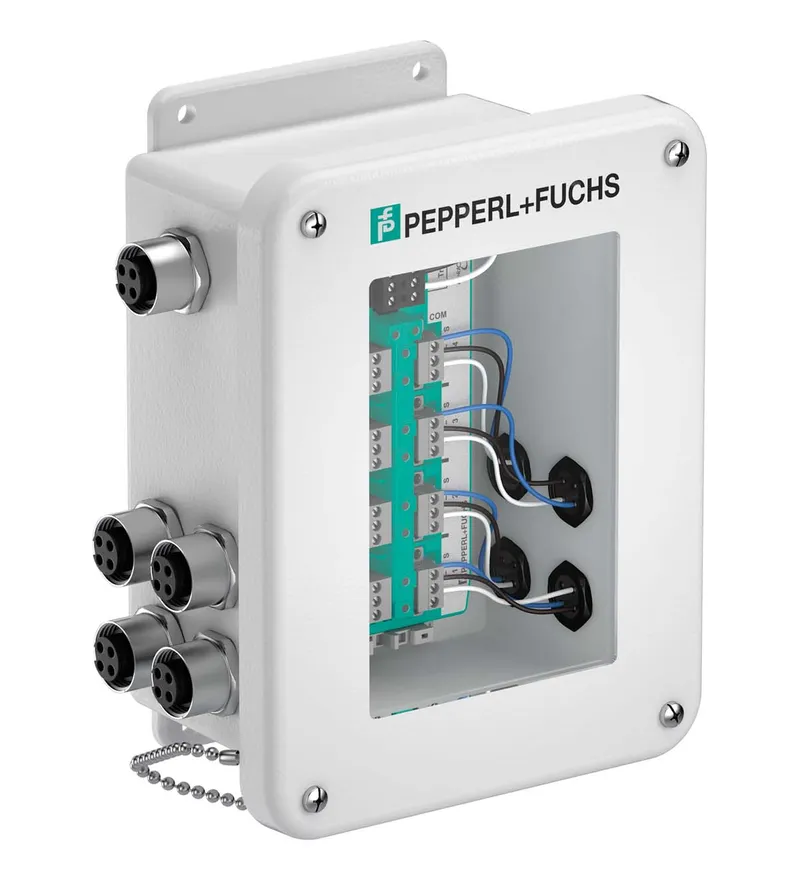

Segment Protector Junction Box, Polyester (GRP). Intrinsically safe (Ex ic)/non-incendive outputs, Glass fiber reinforced polyester, NEMA 4x, Configurable cable entries for trunk and spurs, Packaged solution, For FOUNDATION Fieldbus H1 and PROFIBUS PA, USA, Canada, Device coupler location: Division 2 - high-power trunk, Instrument location / spur protection: Division 2 - all relevant types of protection, Function: Device coupler, Design / Mounting: Outside installation. Design / Mounting: Outside installation. Installed components: Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet.. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 95 % , no moisture condensation. Enclosure cover: detachable cover with stainless steel safety chain. Degree of protection: NEMA 6P, NEMA 12. Cable entry: cable gland and stopping plug options see separate table. Material: . Housingpolyester , impact resistant, glass fiber reinforcedSealPolyurethane (PUR) , one-pieceMaterial thicknessenclosure body: 4 mmenclosure cover: 3 mm: . Housing: polyester , impact resistant, glass fiber reinforced. Seal: Polyurethane (PUR) , one-piece. Material thickness: enclosure body: 4 mmenclosure cover: 3 mm. Dimensions: (W x H x D) 191 x 244 x 121 mm. Mounting: Flanged mounting Ø8 mm holes
Specifications
General specifications
| Design / Mounting | Outside installation |
| Installed components | Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet. |
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % , no moisture condensation |
Mechanical specifications
| Enclosure cover | detachable cover with stainless steel safety chain |
| Degree of protection | NEMA 6P, NEMA 12 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material | |
| Housingpolyester , impact resistant, glass fiber reinforcedSealPolyurethane (PUR) , one-pieceMaterial thicknessenclosure body: 4 mmenclosure cover: 3 mm | Housing |
| Housing | polyester , impact resistant, glass fiber reinforced |
| Seal | Polyurethane (PUR) , one-piece |
| Material thickness | enclosure body: 4 mmenclosure cover: 3 mm |
| Dimensions | (W x H x D) 191 x 244 x 121 mm |
| Mounting | Flanged mounting Ø8 mm holes |
