Pepperl Fuchs SPJB-**-CS*.***
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Passive Splitters |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SPJB-**-CS*.*** be shipped?
SPJB-**-CS*.*** is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SPJB-**-CS*.*** in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SPJB-**-CS*.*** and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SPJB-**-CS*.***, subject to availability and destination.

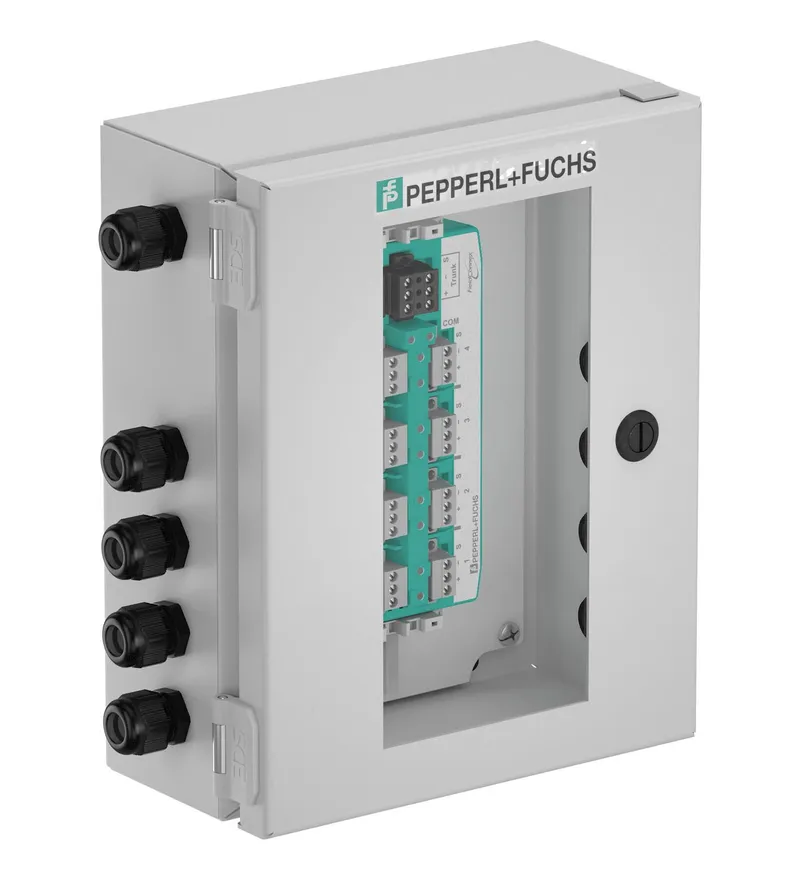

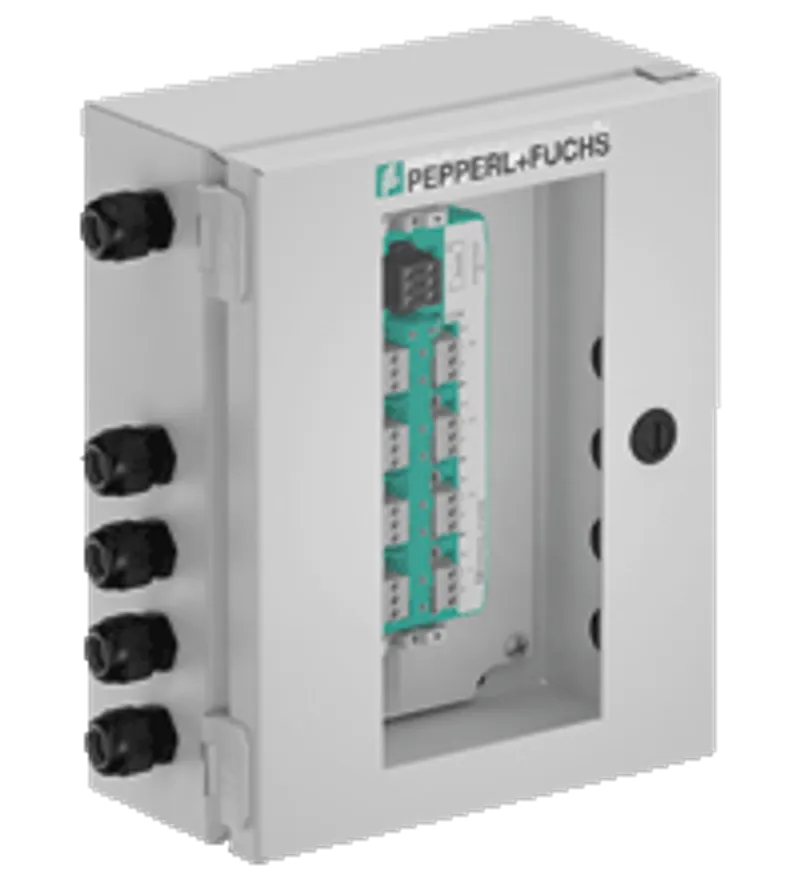

Segment Protector Junction Box, Carbon Steel. Intrinsically safe (Ex ic)/non-incendive outputs, Carbon steel, NEMA 4, Configurable cable entries for trunk and spurs, Packaged solution, For FOUNDATION Fieldbus H1 and PROFIBUS PA, USA, Canada, Device coupler location: Division 2 - high-power trunk, Instrument location / spur protection: Division 2 - all relevant types of protection, Function: Device coupler, Design / Mounting: Outside installation. Design / Mounting: Outside installation. Installed components: Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet.. Degree of protection: EN 60529. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 95 % , no moisture condensation. Enclosure cover: hinged door with cam lock. Degree of protection: IP66, NEMA 4, NEMA 4X, NEMA 12. Cable entry: cable gland and stopping plug options see separate table. Material: . HousingSteelSurfacegray paintSealoil-resistant, one pieceMaterial thicknessenclosure body, enclosure cover: 1.6 mm window: 6 mm: . Housing: Steel. Surface: gray paint. Seal: oil-resistant, one piece. Material thickness: enclosure body, enclosure cover: 1.6 mm window: 6 mm. Dimensions: (W x H x D) 203 x 254 x 102 mm window size: 197 x 95 mm. Mounting: thru-holes Ø6.4 mm. Grounding: grounding bolt on enclosure body and enclosure cover
Specifications
General specifications
| Design / Mounting | Outside installation |
| Installed components | Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet. |
Conformity
| Degree of protection | EN 60529 |
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % , no moisture condensation |
Mechanical specifications
| Enclosure cover | hinged door with cam lock |
| Degree of protection | IP66, NEMA 4, NEMA 4X, NEMA 12 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material | |
| HousingSteelSurfacegray paintSealoil-resistant, one pieceMaterial thicknessenclosure body, enclosure cover: 1.6 mm window: 6 mm | Housing |
| Housing | Steel |
| Surface | gray paint |
| Seal | oil-resistant, one piece |
| Material thickness | enclosure body, enclosure cover: 1.6 mm window: 6 mm |
| Dimensions | (W x H x D) 203 x 254 x 102 mm window size: 197 x 95 mm |
| Mounting | thru-holes Ø6.4 mm |
| Grounding | grounding bolt on enclosure body and enclosure cover |
