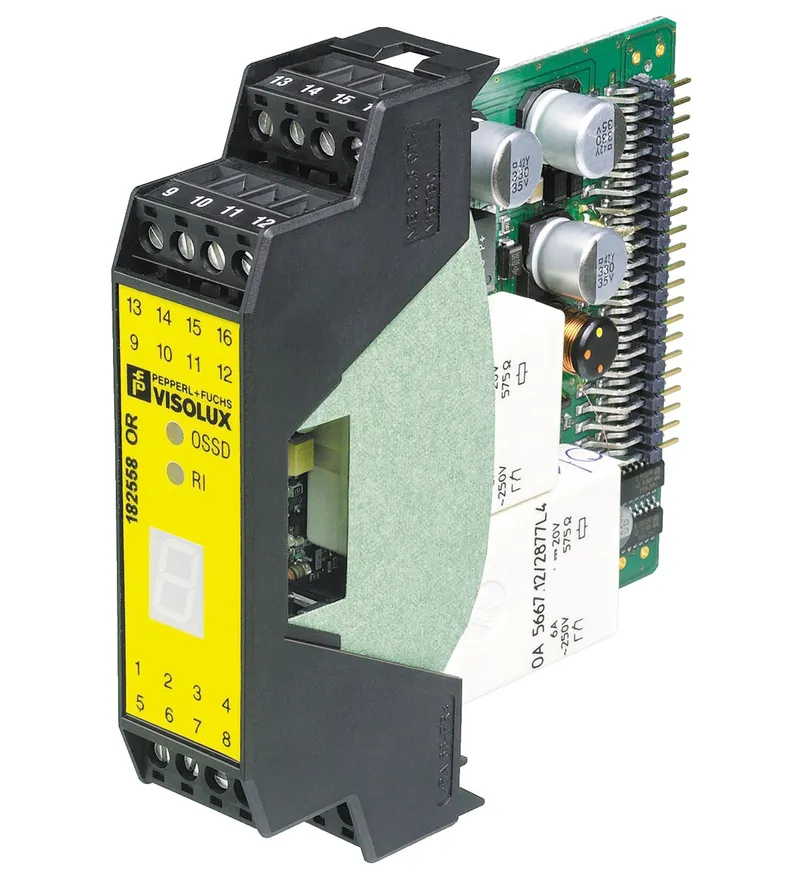

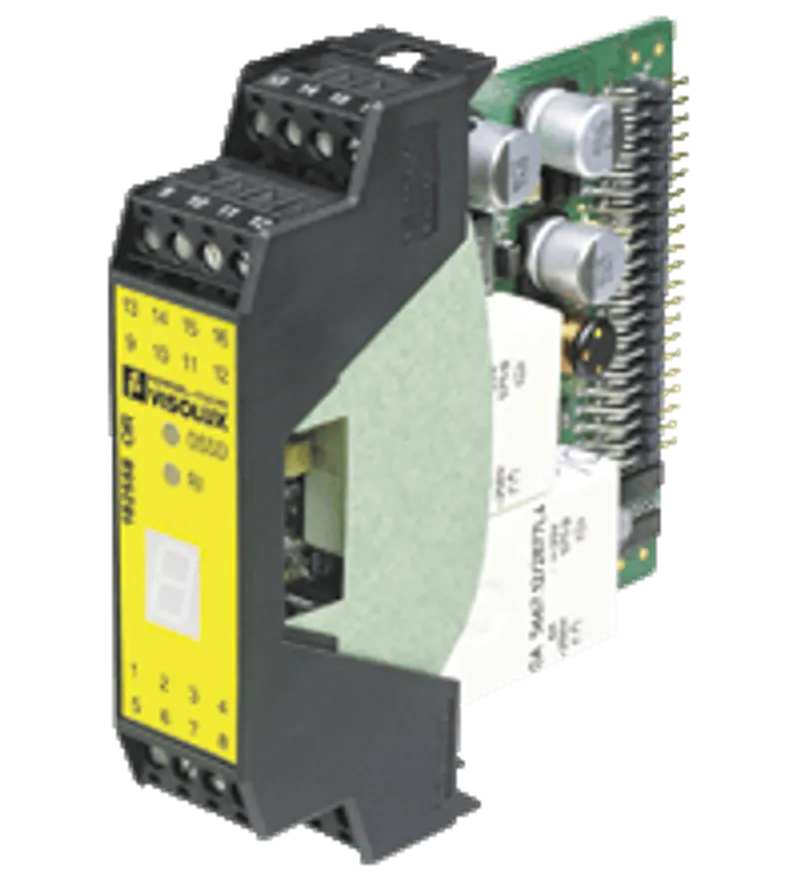

Pepperl Fuchs SB4 Module OR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Safety Control Units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SB4 Module OR be shipped?
SB4 Module OR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SB4 Module OR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SB4 Module OR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SB4 Module OR, subject to availability and destination.
Safety control unit module. OSSD-R/Supply-module, Safety outputs OSSD, external status displays OSSD, Start/Restart disable , Operating mode can be selected by means of DIP switches, Relay monitor, Screw terminals or spring terminals, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Operating voltage: 24 V DC ± 20 % , via SB4 Housing. Operating mode: Start/restart disable, relay monitor,. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. Mission Time (TM): 20 a. B10d: see instruction manuals. Type: 4. Diagnostics indicator: 7-segment display. Function indicator: LED red: OSSD OFFLED green: OSSD ON Yellow LED: start readiness. Control elements: DIP switch. Operating voltage: 24 V DC ± 20 % , via SB4 Housing. Activation current: approx. 7 mA. Activation time: 0.4 ... 1.2 s. Test input: Reset-input for system test. Safety output: 2 relay outputs, force-guided NO-contact. Signal output: Output for displaying the switching state of the OSSDs. Switching voltage: 10 V ... 250 V AC/DC. Switching current: min. 10 mA , max. 6 A AC/DC. Switching power: max. DC 24 VA , AC 230 VA. Functional safety: ISO 13849-1 ; EN 61508 part1-4. Product standard: EN 61496-1. CE conformity: CE. UL approval: cULus. TÜV approval: TÜV SÜD. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP20. Connection: screw terminals , lead cross section 0.2 ... 2 mm2 Option /165: Cage tension spring terminals , Cable cross-section 0.2 ... 1.5 mm2. Material: . HousingPolyamide (PA): . Housing: Polyamide (PA). Mass: approx. 150 g. Dimensions: . Height99 mmWidth22.6 mmDepth100.5 mm: . Height: 99 mm. Width: 22.6 mm. Depth: 100.5 mm. Ordering information: without Option /165 -> with screw terminalswith Option /165 -> spring clamp terminals
Specifications
General specifications
| Operating mode | Start/restart disable, relay monitor, |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 3 |
| Performance level (PL) | PL e |
| Category | Cat. 4 |
| Mission Time (TM) | 20 a |
| B10d | see instruction manuals |
| Type | 4 |
Indicators/operating means
| Diagnostics indicator | 7-segment display |
| Function indicator | LED red: OSSD OFFLED green: OSSD ON Yellow LED: start readiness |
| Control elements | DIP switch |
Electrical specifications
| Operating voltage | 24 V DC ± 20 % , via SB4 Housing UB |
Input
| Activation current | approx. 7 mA |
| Activation time | 0.4 ... 1.2 s |
| Test input | Reset-input for system test |
Output
| Safety output | 2 relay outputs, force-guided NO-contact |
| Signal output | Output for displaying the switching state of the OSSDs |
| Switching voltage | 10 V ... 250 V AC/DC |
| Switching current | min. 10 mA , max. 6 A AC/DC |
| Switching power | max. DC 24 VA , AC 230 VA |
Conformity
| Functional safety | ISO 13849-1 ; EN 61508 part1-4 |
| Product standard | EN 61496-1 |
Approvals and certificates
| CE conformity | CE |
| UL approval | cULus |
| TÜV approval | TÜV SÜD |
Ambient conditions
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | screw terminals , lead cross section 0.2 ... 2 mm2 Option /165: Cage tension spring terminals , Cable cross-section 0.2 ... 1.5 mm2 |
| Material | |
| HousingPolyamide (PA) | Housing |
| Housing | Polyamide (PA) |
| Mass | approx. 150 g |
| Dimensions | |
| Height99 mmWidth22.6 mmDepth100.5 mm | Height |
| Height | 99 mm |
| Width | 22.6 mm |
| Depth | 100.5 mm |
General information
| Ordering information | without Option /165 -> with screw terminalswith Option /165 -> spring clamp terminals |
