Pepperl Fuchs OBD2000-R202-E4
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can OBD2000-R202-E4 be shipped?
OBD2000-R202-E4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up OBD2000-R202-E4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for OBD2000-R202-E4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBD2000-R202-E4, subject to availability and destination.

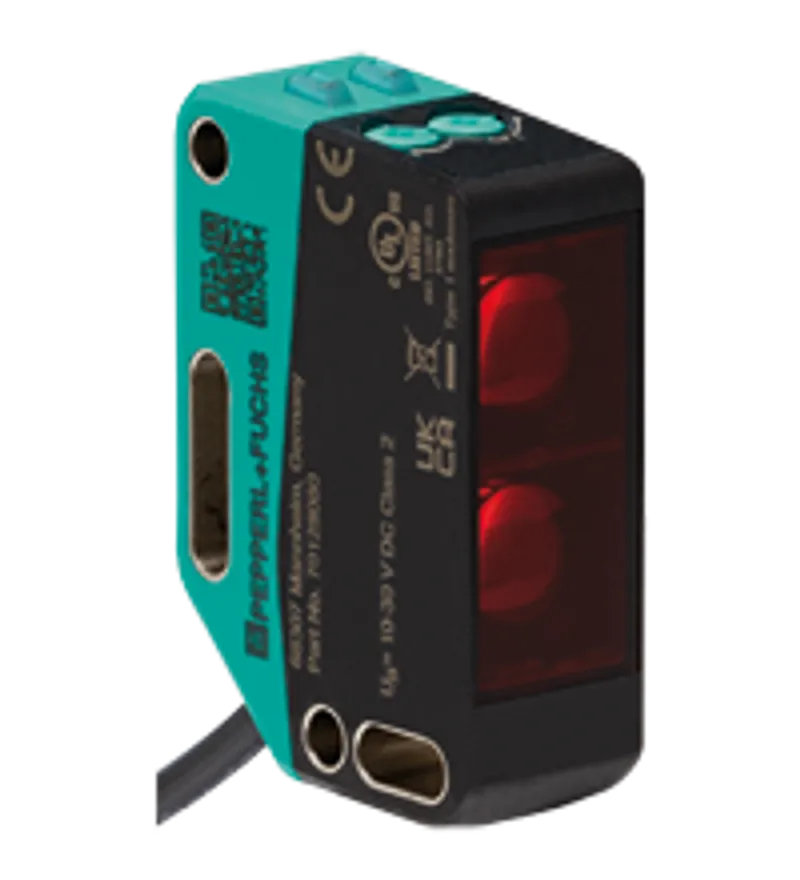

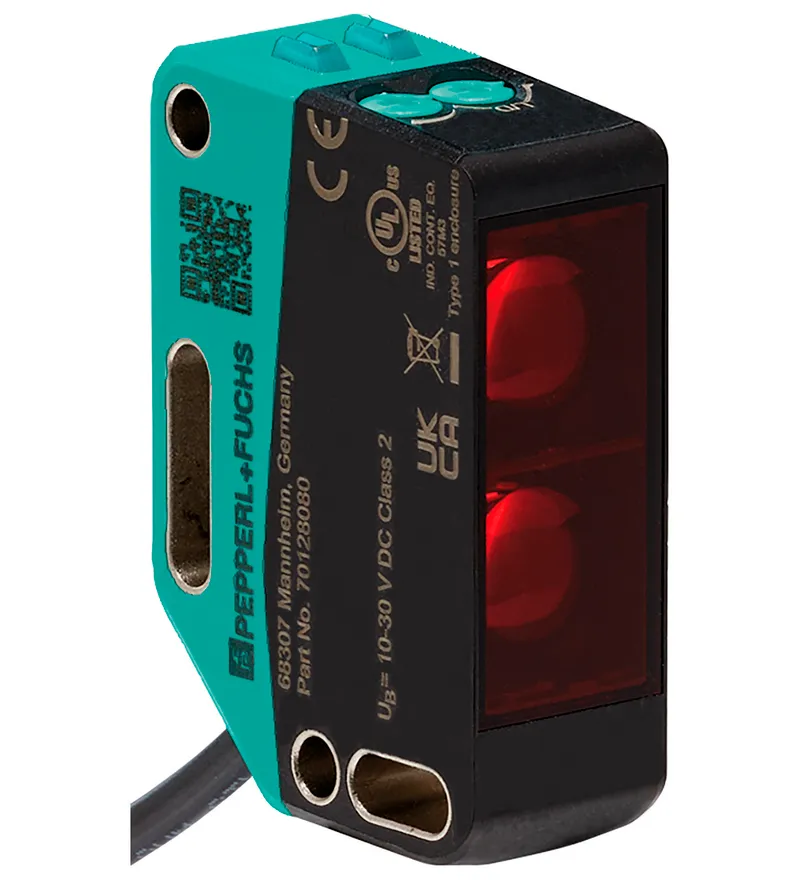

Diffuse mode sensor. Medium design with versatile mounting options, Degree of protection IP67, Mounting on full metal sockets, Very bright, highly visible light spot, Highly visible LEDs for Power ON and switching state. Detection range: 2 ... 2000 mm. Detection range min.: 100 ... 300 mm. Detection range max.: 2 ... 2000 mm. Adjustment range: 300 ... 2000 mm. Reference target: standard white, 100 mm x 100 mm. Light source: LED. Light type: modulated visible red light. LED risk group labelling: exempt group. Diameter of the light spot: approx. 60 mm at a distance of 2 m. Opening angle: 2 °. Ambient light limit: EN 60947-5-2 : 60000 Lux. MTTFd: 876 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:on - power onflashing (4 Hz) - short circuit. Function indicator: LED yellow:constantly on - object detectedconstantly off - object not detected Flashing (8 Hz) - fault detected, the outputs maintain the status. Control elements: Light-on/dark-on changeover switch. Control elements: Sensing range adjuster. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: < 30 mA at 24 V Operating voltage. Protection class: III. Switching type: The switching type of the sensor is adjustable. The default setting is: Q - BK: NPN normally open / light-on. Signal output: 1 NPN short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Usage category: DC-12 and DC-13. Voltage drop: ≤ 1.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F) , cable, fixed installation -20 ... 60 °C (-4 ... 140 °F) , movable cable not appropriate for conveyor chains. Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: approx. 100 g. Dimensions: . Height61.9 mmWidth20 mmDepth41.7 mm: . Height: 61.9 mm. Width: 20 mm. Depth: 41.7 mm. Cable length: 2 m
Specifications
General specifications
| Detection range | 2 ... 2000 mm |
| Detection range min. | 100 ... 300 mm |
| Detection range max. | 2 ... 2000 mm |
| Adjustment range | 300 ... 2000 mm |
| Reference target | standard white, 100 mm x 100 mm |
| Light source | LED |
| Light type | modulated visible red light |
| LED risk group labelling | exempt group |
| Diameter of the light spot | approx. 60 mm at a distance of 2 m |
| Opening angle | 2 ° |
| Ambient light limit | EN 60947-5-2 : 60000 Lux |
Functional safety related parameters
| MTTFd | 876 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green:on - power onflashing (4 Hz) - short circuit |
| Function indicator | LED yellow:constantly on - object detectedconstantly off - object not detected Flashing (8 Hz) - fault detected, the outputs maintain the status |
| Control elements | Light-on/dark-on changeover switch |
| Control elements | Sensing range adjuster |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 30 mA at 24 V Operating voltage I0 |
| Protection class | III |
Output
| Switching type | The switching type of the sensor is adjustable. The default setting is: Q - BK: NPN normally open / light-on |
| Signal output | 1 NPN short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Usage category | DC-12 and DC-13 |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 1000 Hz f |
| Response time | 0.5 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) , cable, fixed installation -20 ... 60 °C (-4 ... 140 °F) , movable cable not appropriate for conveyor chains |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Material | |
| HousingPC (Polycarbonate)Optical facePMMA | Housing |
| Housing | PC (Polycarbonate) |
| Optical face | PMMA |
| Mass | approx. 100 g |

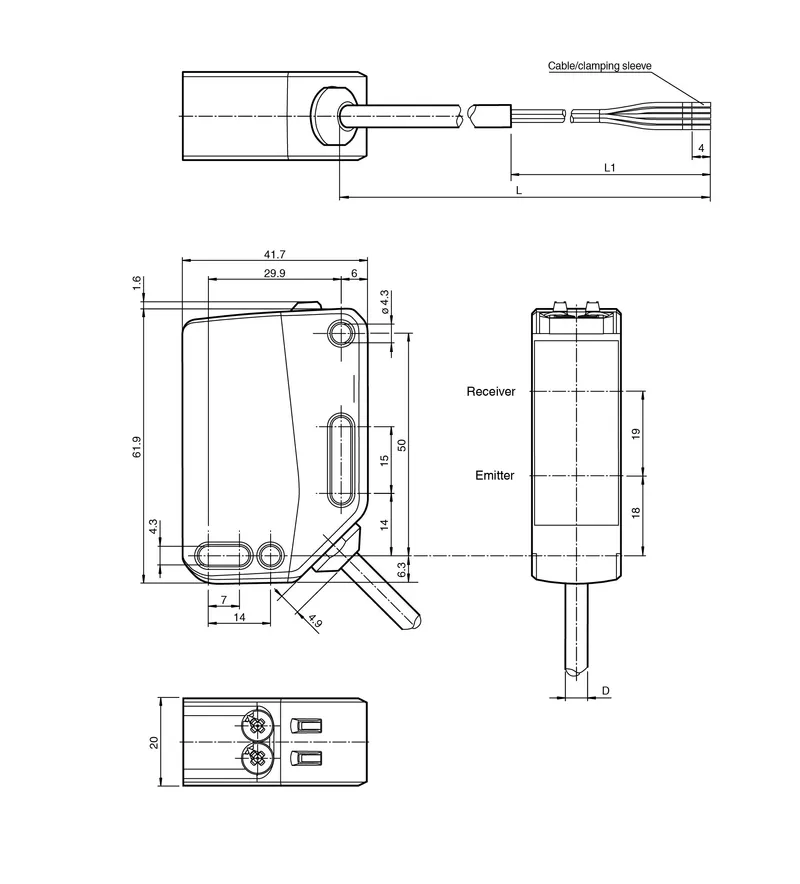

| Dimensions | |
| Height61.9 mmWidth20 mmDepth41.7 mm | Height |
| Height | 61.9 mm |
| Width | 20 mm |
| Depth | 41.7 mm |
| Cable length | 2 m |
