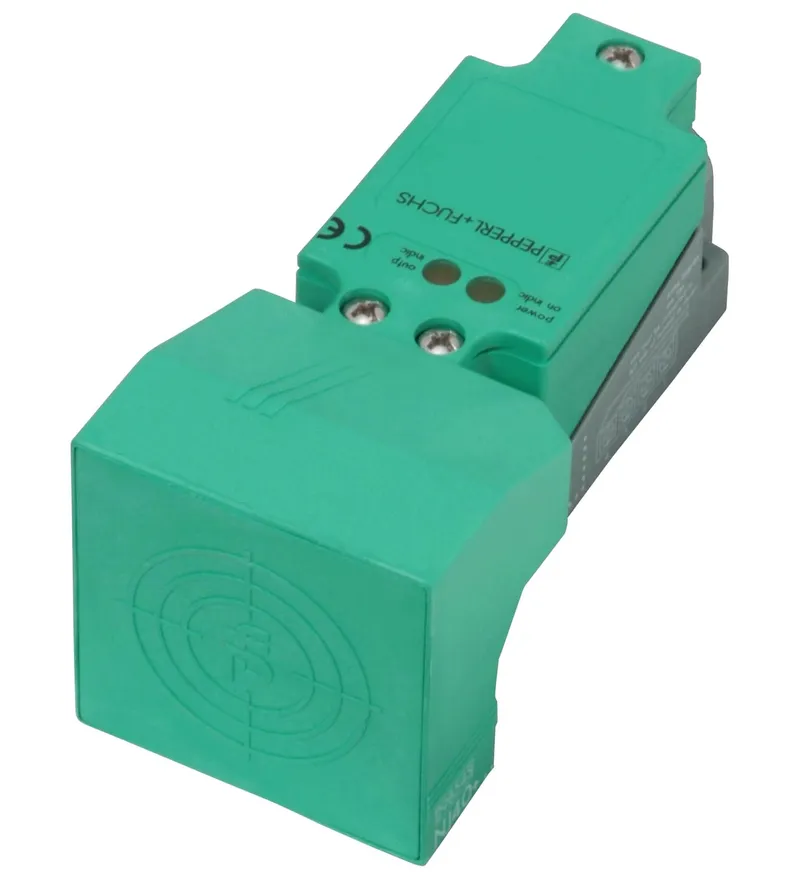

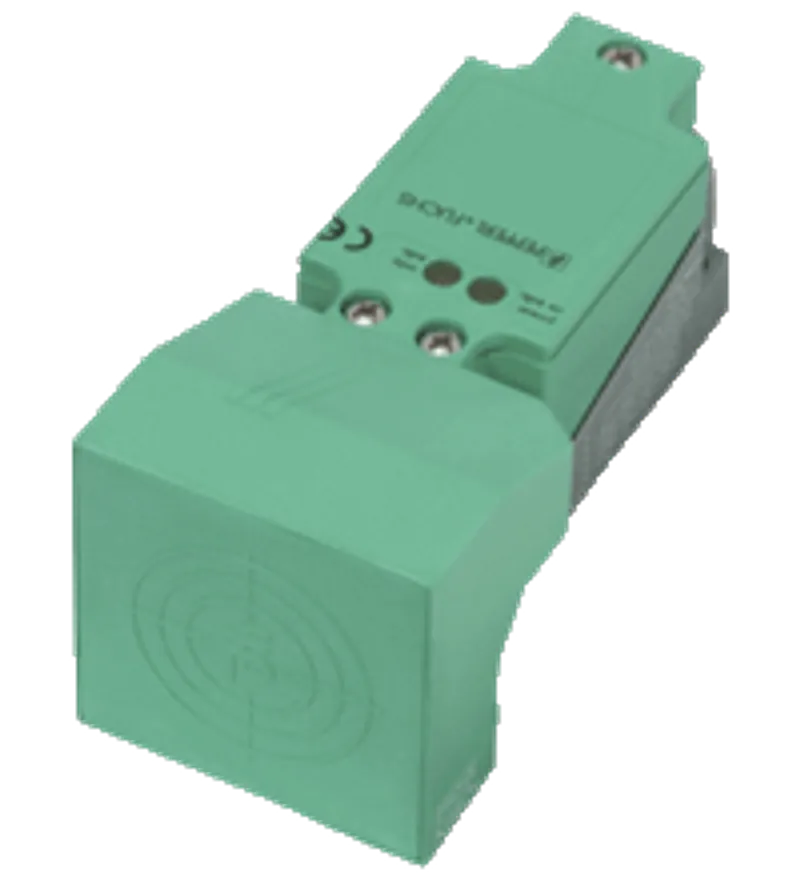

Pepperl Fuchs NJ40+U4+E
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ40+U4+E be shipped?
NJ40+U4+E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ40+U4+E in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ40+U4+E and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ40+U4+E, subject to availability and destination.
Inductive sensor. Switching function: Normally open (NO), Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: <i>VariKont</i> <sup>®</sup>, Series: <i>VariKont</i> <sup>®</sup>, Type of voltage: DC, Connection type: screw terminals, Housing material: PBT/metal, Degree of protection: IP68. Switching function: Normally open (NO). Output type: NPN. Rated operating distance: 40 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 32.4 mm. Reduction factor rAl: 0.5. Reduction factor rCu: 0.45. Reduction factor r304: 0.8. Output type: 3-wire. Operating voltage: 10 ... 60 V. Switching frequency: 0 ... 100 Hz. Hysteresis: 1 ... 10 % typ. 5 %. Reverse polarity protection: yes. Short-circuit protection: yes. Voltage drop: ≤ 2.8 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 100 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. Standards: IEC / EN 60947-5-2:2004. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: screw terminals. Information for connection: A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 %. Core cross section: up to 2.5 mm2. Minimum core cross-sectionwithout wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2Maximum core cross-sectionwithout wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2: . Minimum core cross-section: without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2. Maximum core cross-section: without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2. Housing material: PBT/metal. Sensing face: PBT. Degree of protection: IP68. Dimensions: . Height55 mmWidth55 mmLength128 mm: . Height: 55 mm. Width: 55 mm. Length: 128 mm
Specifications
General specifications
| Switching function | Normally open (NO) |
| Output type | NPN |
| Rated operating distance | 40 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 32.4 mm sa |
| Reduction factor rAl | 0.5 |
| Reduction factor rCu | 0.45 |
| Reduction factor r304 | 0.8 |
| Output type | 3-wire |
Nominal ratings
| Operating voltage | 10 ... 60 V UB |
| Switching frequency | 0 ... 100 Hz f |
| Hysteresis | 1 ... 10 % typ. 5 % H |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Voltage drop | ≤ 2.8 V Ud |
| Operating current | 0 ... 200 mA IL |
| No-load supply current | ≤ 10 mA I0 |
| Time delay before availability | ≤ 100 ms tv |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
Standard conformity
| Standards | IEC / EN 60947-5-2:2004 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA |
| CCC approval | Certified by China Compulsory Certification (CCC) |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | screw terminals |
| Information for connection | A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % |
| Core cross section | up to 2.5 mm2 |
| Minimum core cross-sectionwithout wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2Maximum core cross-sectionwithout wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2 | Minimum core cross-section |
| Minimum core cross-section | without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2 |
| Maximum core cross-section | without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2 |
| Housing material | PBT/metal |
| Sensing face | PBT |
| Degree of protection | IP68 |

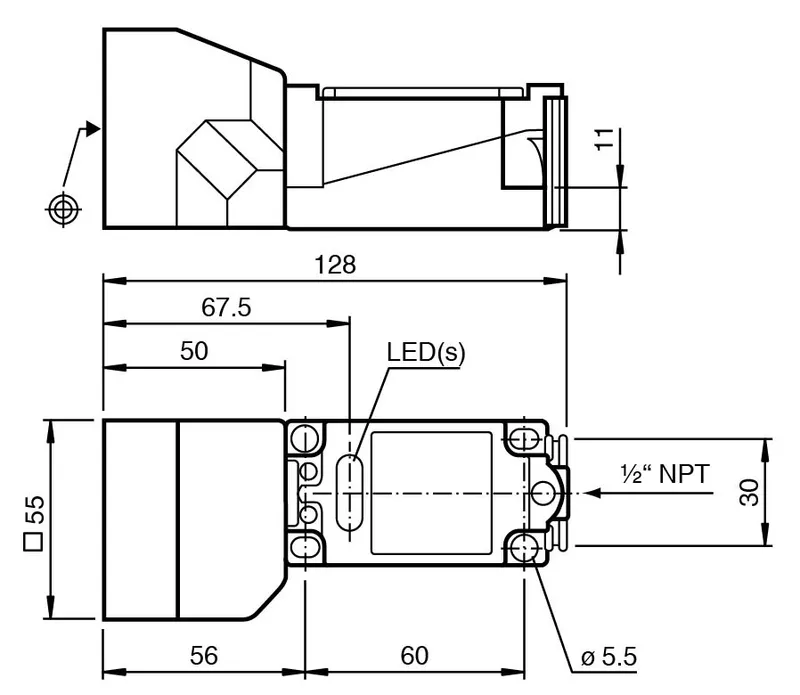

| Dimensions | |
| Height55 mmWidth55 mmLength128 mm | Height |
| Height | 55 mm |
| Width | 55 mm |
| Length | 128 mm |
