Pepperl Fuchs MPT32HD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can MPT32HD be shipped?
MPT32HD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MPT32HD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MPT32HD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MPT32HD, subject to availability and destination.
Photoelectric base modul, Accessories. Photoelectric Sensors; MP Series Modular, Harsh duty, Withstands 1200 psi washdown. Marking: CE. Operating voltage: 10 ... 30 V DC. Operating current: 250 mA max. Voltage drop: ≤ 1 V DC. Current consumption: ≤ 25 mA. Response time: ≤ 10 µs. Output type: DC. Output type: 1 PNP. Standards: EN 60947-5-2. Approvals: CE, cULus. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -55 ... 85 °C (-67 ... 185 °F). Relative humidity: 95% RH (non-condensing). Shock resistance: 50G. Vibration resistance: 10G, 10 ... 500 Hz. Degree of protection: IP69K. Connection: 2-meter PVC cable. Material: . HousingGlass-filled Polysulfone: . Housing: Glass-filled Polysulfone. Dimensions: . Height55 mmWidth39.6 mmDepth39.6 mm: . Height: 55 mm. Width: 39.6 mm. Depth: 39.6 mm
Specifications
General specifications
| Marking | CE |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Operating current | 250 mA max IB |
Output
| Voltage drop | ≤ 1 V DC Ud |
| Current consumption | ≤ 25 mA |
| Response time | ≤ 10 µs |

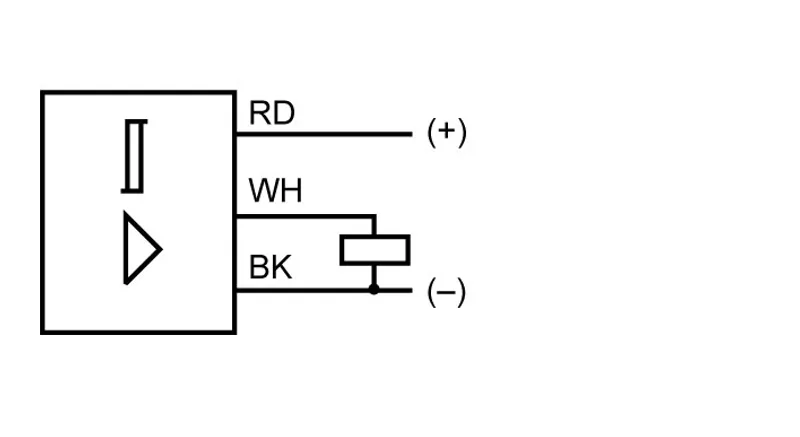

Output 1
| Output type | DC |
Output 2
| Output type | 1 PNP |
Standard conformity
| Standards | EN 60947-5-2 |
Approvals and certificates
| Approvals | CE, cULus |
Ambient conditions
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Storage temperature | -55 ... 85 °C (-67 ... 185 °F) |
| Relative humidity | 95% RH (non-condensing) |
| Shock resistance | 50G |
| Vibration resistance | 10G, 10 ... 500 Hz |
Mechanical specifications
| Degree of protection | IP69K |
| Connection | 2-meter PVC cable |
| Material | |
| HousingGlass-filled Polysulfone | Housing |
| Housing | Glass-filled Polysulfone |

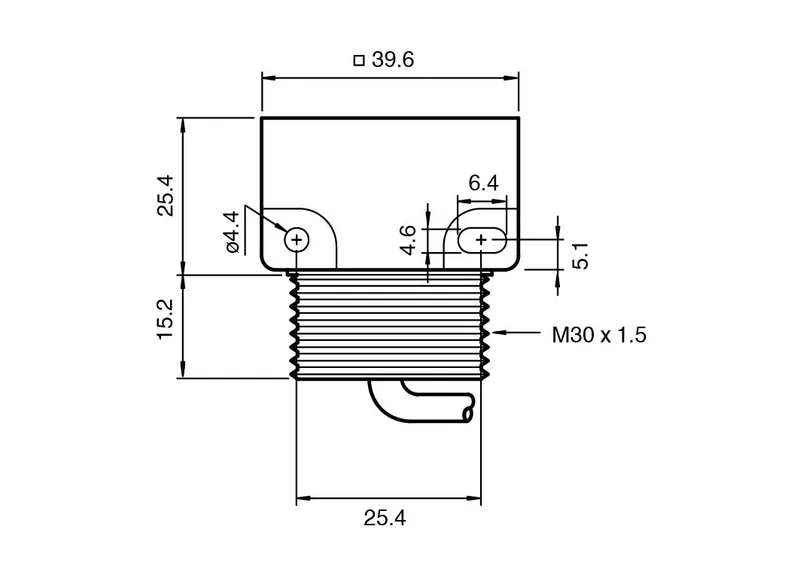

| Dimensions | |
| Height55 mmWidth39.6 mmDepth39.6 mm | Height |
| Height | 55 mm |
| Width | 39.6 mm |
| Depth | 39.6 mm |
