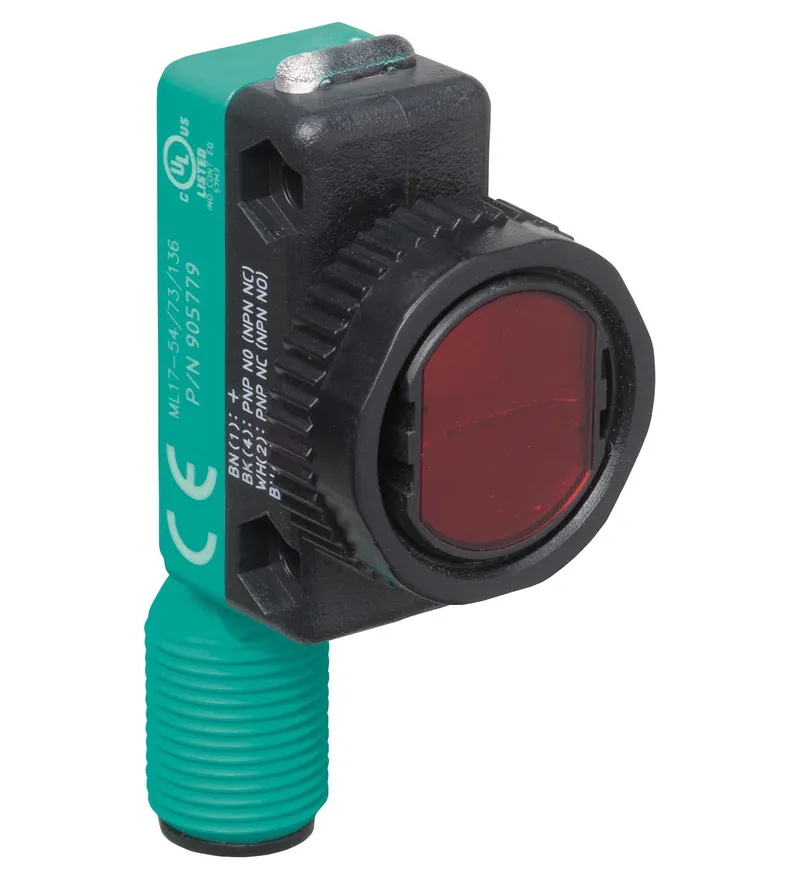

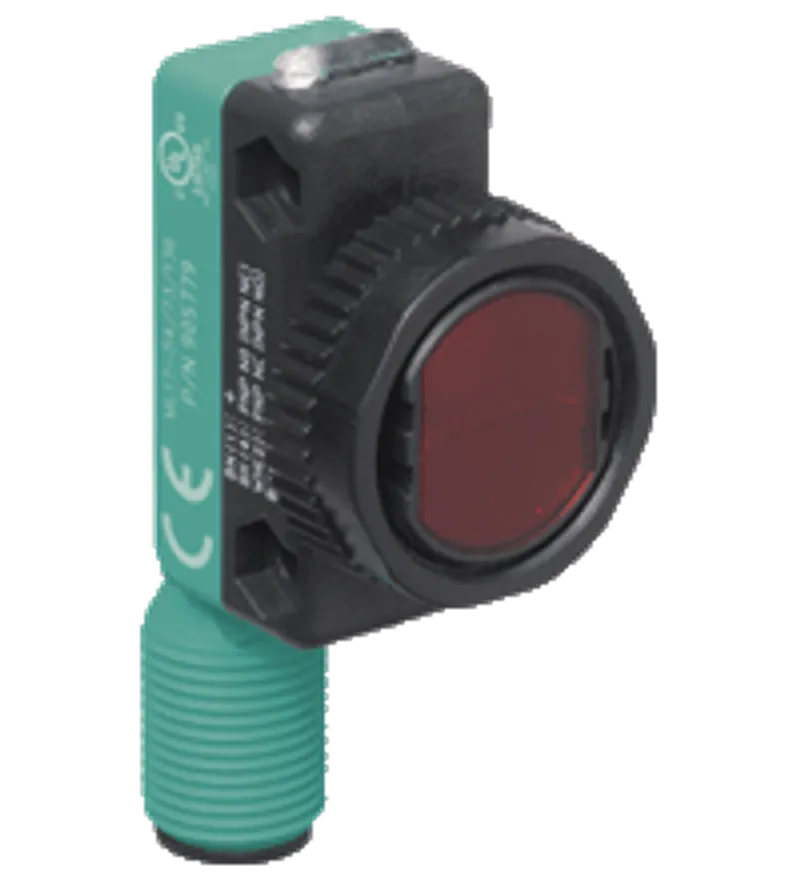

Pepperl Fuchs MD17/73
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thru-Beam Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can MD17/73 be shipped?
MD17/73 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MD17/73 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MD17/73 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MD17/73, subject to availability and destination.
Thru-beam sensor emitter. Emitter, Compact, versatile housing, 360° high visibility LEDs, M12 male connector. Emitter: MD17/73. Receiver: MV17/73/136. Effective detection range: 0 ... 15 m. Threshold detection range: 20 m. Reference target: receiver. Light source: IRED. Light type: Infrared LED. Ambient light limit: ≤ 10000 Lux. Operation indicator: LED green. Function indicator: . Operating voltage: 10 ... 30 V DC , class 2. Ripple: max. 10 %. No-load supply current: < 25 mA. Operating current: . Protection class: . Time delay before availability: ≤ 200 ms. Switching type: . Signal output: . Product standard: EN 60947-5-2 IEC 60947-5-2. CE conformity: CE. EAC conformity: TR CU 020/2011. UL approval: cULus. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP67. Connection: M12 x 1 connector , 4-pin. Material: . HousingABSOptical faceAcrylic: . Housing: ABS. Optical face: Acrylic. Mass: approx. 9 g. Dimensions: . Height34.5 mmWidth15 mmLength29.3 mm: . Height: 34.5 mm. Width: 15 mm. Length: 29.3 mm
Specifications
System components
| Emitter | MD17/73 |
| Receiver | MV17/73/136 |
General specifications
| Effective detection range | 0 ... 15 m |
| Threshold detection range | 20 m |
| Reference target | receiver |
| Light source | IRED |
| Light type | Infrared LED |
| Ambient light limit | ≤ 10000 Lux |
Indicators/operating means
| Operation indicator | LED green |
| Function indicator |
Electrical specifications
| Operating voltage | 10 ... 30 V DC , class 2 UB |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA I0 |
| Operating current | IB |
| Protection class | |
| Time delay before availability | ≤ 200 ms tv |
Output
| Switching type | |
| Signal output |
Conformity
| Product standard | EN 60947-5-2 IEC 60947-5-2 |
Approvals and certificates
| CE conformity | CE |
| EAC conformity | TR CU 020/2011 |
| UL approval | cULus |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 |

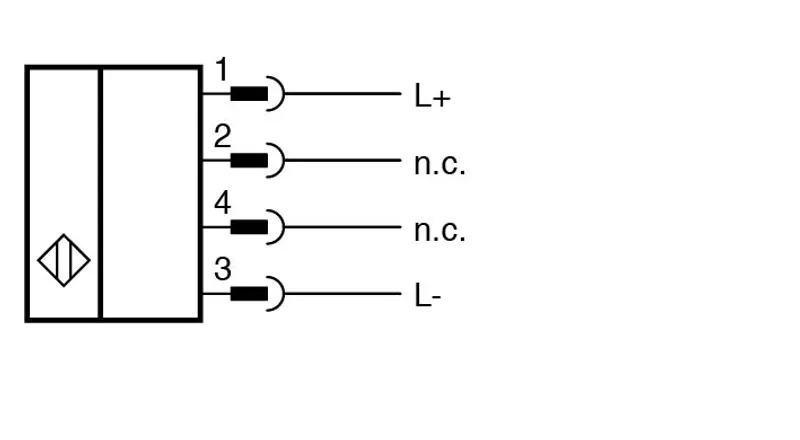

| Connection | M12 x 1 connector , 4-pin |
| Material | |
| HousingABSOptical faceAcrylic | Housing |
| Housing | ABS |
| Optical face | Acrylic |
| Mass | approx. 9 g |

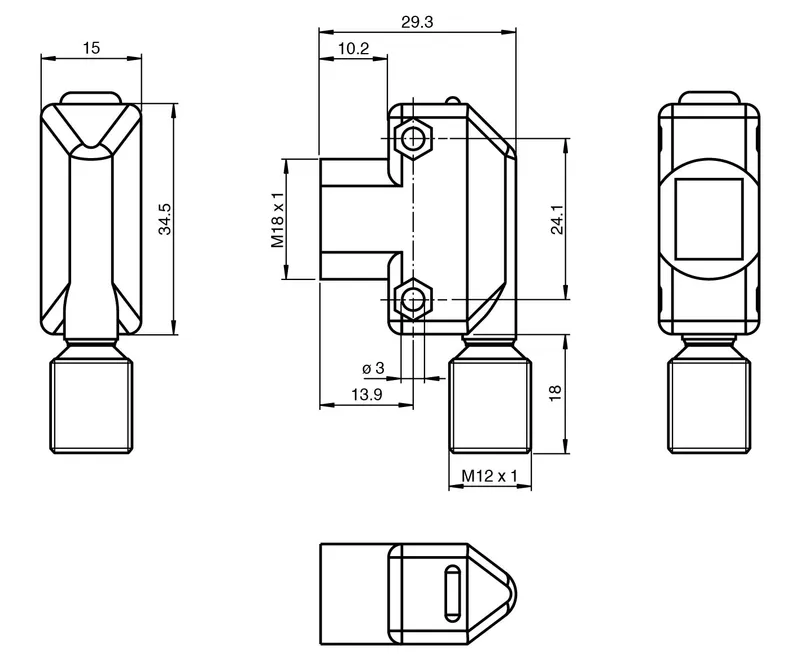

| Dimensions | |
| Height34.5 mmWidth15 mmLength29.3 mm | Height |
| Height | 34.5 mm |
| Width | 15 mm |
| Length | 29.3 mm |
