Pepperl Fuchs LB9140A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LB9140A be shipped?
LB9140A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB9140A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB9140A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9140A, subject to availability and destination.

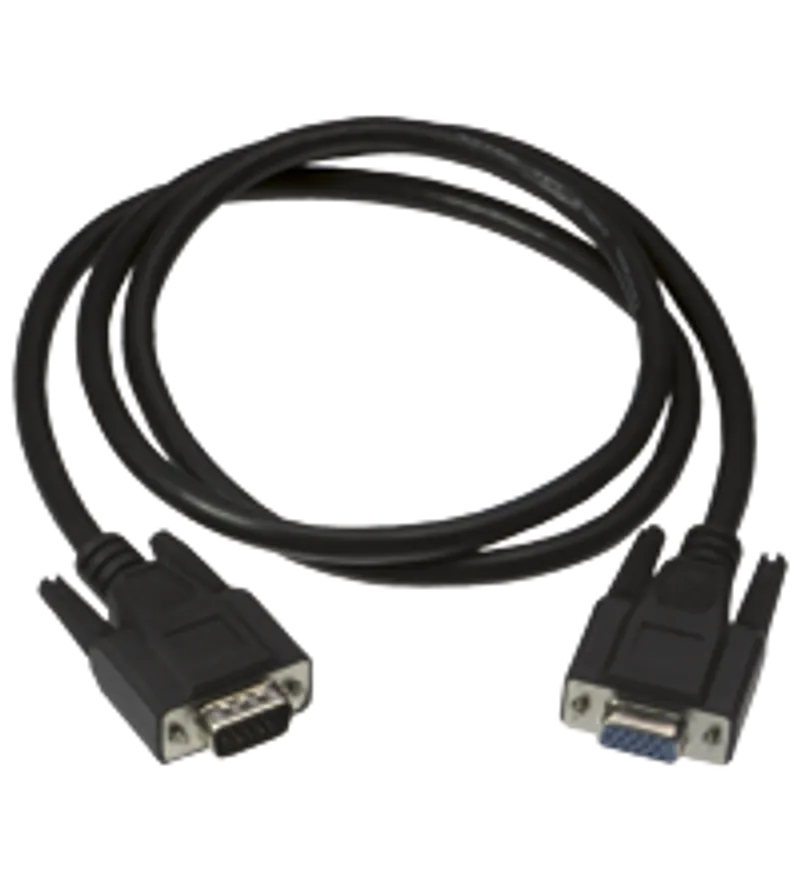

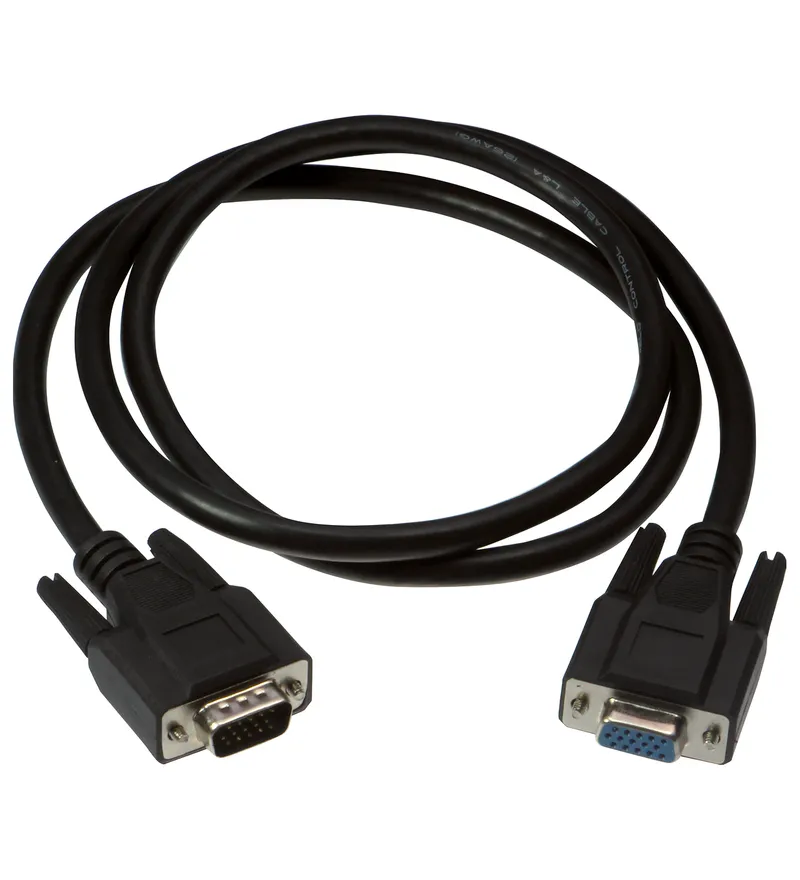

LB Backplane Connection Cable. Connection of base and extension backplanes, For LB system. Rated voltage: max. 30 V. Rated current: max. 1.5 A. Lead resistance: < 150 mΩ / m. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F) , fixed installation. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection: 15-pin sub-D connector (plug) , black 15-pin sub-D connector (socket) , black. Material: . ConnectorSub-D connector (plug) : PVC Sub-D connector (socket) : PVCSheathingPVCCore insulationPVC: . Connector: Sub-D connector (plug) : PVC Sub-D connector (socket) : PVC. Sheathing: PVC. Core insulation: PVC. Cable: LiYCY. Diameter7.7 mmBending radiusmin. 6 x external diameter, fixed installationColorblackCores8P x 26 AWG , twisted pairsConductor constructionstranded wire , fine-strandShieldtinned copper braidingLengthL100 cm: . Diameter: 7.7 mm. Bending radius: min. 6 x external diameter, fixed installation. Color: black. Cores: 8P x 26 AWG , twisted pairs. Conductor construction: stranded wire , fine-strand. Shield: tinned copper braiding. Length: 100 cm. Mass: 135 g. Flammability: according to VW-1
Specifications
Electrical specifications
| Rated voltage | max. 30 V Ur |
| Rated current | max. 1.5 A Ir |
| Lead resistance | < 150 mΩ / m |
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) , fixed installation |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications

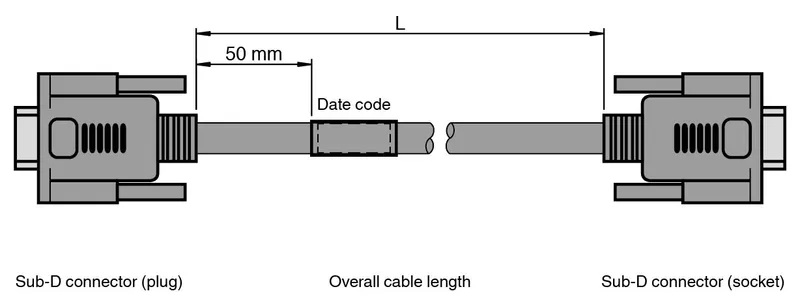

| Connection | 15-pin sub-D connector (plug) , black 15-pin sub-D connector (socket) , black |
| Material | |
| ConnectorSub-D connector (plug) : PVC Sub-D connector (socket) : PVCSheathingPVCCore insulationPVC | Connector |
| Connector | Sub-D connector (plug) : PVC Sub-D connector (socket) : PVC |
| Sheathing | PVC |
| Core insulation | PVC |
| Cable | LiYCY |
| Diameter7.7 mmBending radiusmin. 6 x external diameter, fixed installationColorblackCores8P x 26 AWG , twisted pairsConductor constructionstranded wire , fine-strandShieldtinned copper braidingLengthL100 cm | Diameter |
| Diameter | 7.7 mm |
| Bending radius | min. 6 x external diameter, fixed installation |
| Color | black |
| Cores | 8P x 26 AWG , twisted pairs |
| Conductor construction | stranded wire , fine-strand |
| Shield | tinned copper braiding |
| Length | 100 cm L |
| Mass | 135 g |
| Flammability | according to VW-1 |
