Pepperl Fuchs KCD2-R
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Signal Converters |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can KCD2-R be shipped?
KCD2-R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up KCD2-R in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for KCD2-R and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KCD2-R, subject to availability and destination.

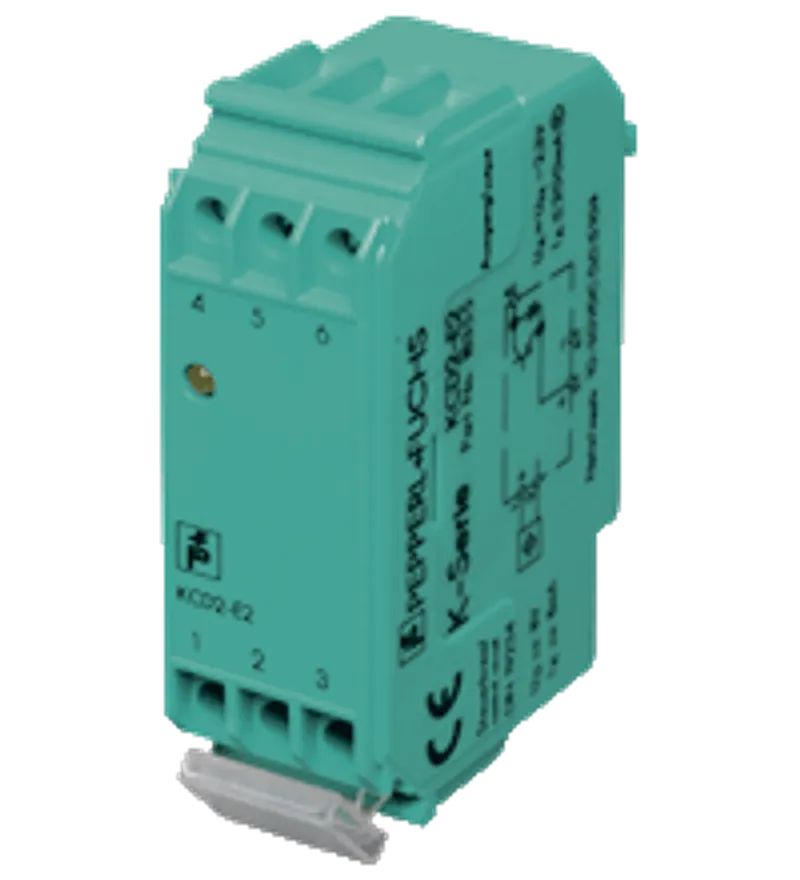

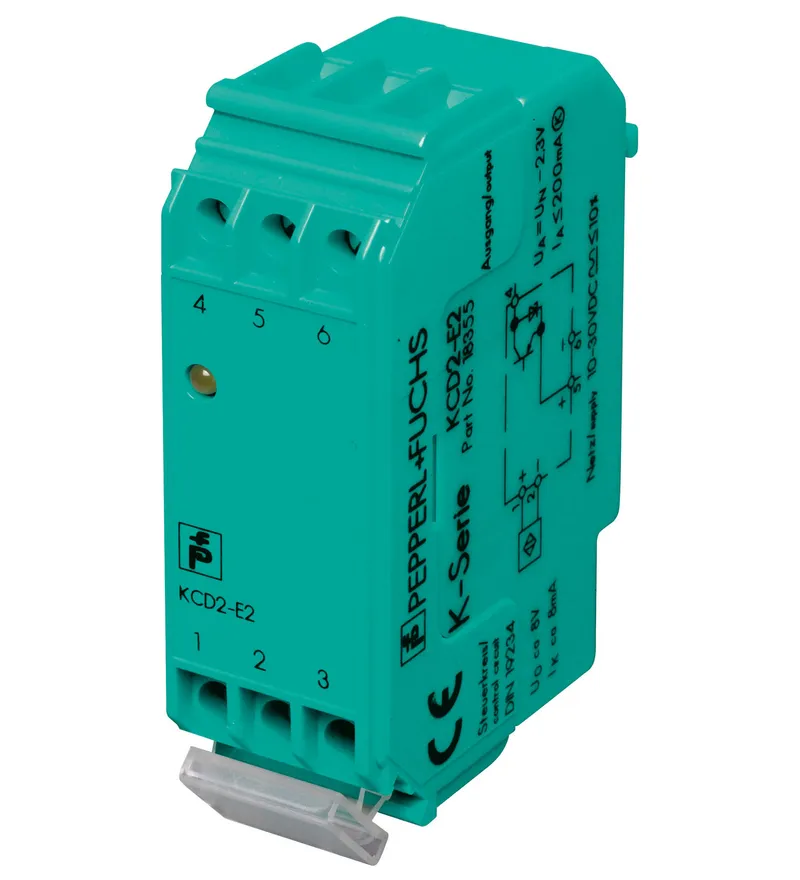

Sensor output interface terminal. Relay output with 1 pole, yellow LED indicates switching state, Free-wheeling diode, Compact terminal housing, Clips onto standard 35 mm rail to DIN EN 50 022, Degree of protection IP20, Operating voltage: 24 V DC ± 15 %, Connectable sensor types: PNP or NPN 3-wire sensors, Relay: 1 changeover contact. MTTFd: 19699 a. LED yellow: switch output. Operating voltage: 24 V DC ± 15 %. Ripple: ≤ 10 %. Operating current: 16 mA. Connection: terminals 2+, 3-. Connectable sensor types: PNP or NPN 3-wire sensors. Switching frequency: ≤ 10 Hz. Relay: 1 changeover contact. Contact loading: 30 V DC/2 A resistive load. Delay: Pull-in: approx. 6 ms Drop-out: approx. 2 ms. Mechanical life: ≥108 switching cycles. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Degree of protection: EN 60529:2000. Noise immunity: EN 61326-1:2013. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Connection: self-opening apparatus connection terminals, max. core cross-section 0.34 ... 2.5 mm2. Mass: 60 g. Dimensions: 20 mm x 60 mm x 40 mm
Specifications
Functional safety related parameters
| MTTFd | 19699 a |
Indicators/operating means
| LED yellow | switch output |
Electrical specifications
| Operating voltage | 24 V DC ± 15 % UB |
| Ripple | ≤ 10 % |
| Operating current | 16 mA IB |
Input
| Connection | terminals 2+, 3- |
| Connectable sensor types | PNP or NPN 3-wire sensors |
Output
| Switching frequency | ≤ 10 Hz f |
| Relay | 1 changeover contact |
| Contact loading | 30 V DC/2 A resistive load |
| Delay | Pull-in: approx. 6 ms Drop-out: approx. 2 ms |
| Mechanical life | ≥108 switching cycles |
Directive conformity
| Electromagnetic compatibility | |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EU |
| Directive 2014/30/EU | EN 61326-1:2013 |
Standard conformity
| Degree of protection | EN 60529:2000 |
| Noise immunity | EN 61326-1:2013 |
Ambient conditions
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | self-opening apparatus connection terminals, max. core cross-section 0.34 ... 2.5 mm2 |
| Mass | 60 g |
| Dimensions | 20 mm x 60 mm x 40 mm |
