Pepperl Fuchs FB6305*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | FB (Zone 1) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FB6305* be shipped?
FB6305* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FB6305* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FB6305* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FB6305*, subject to availability and destination.

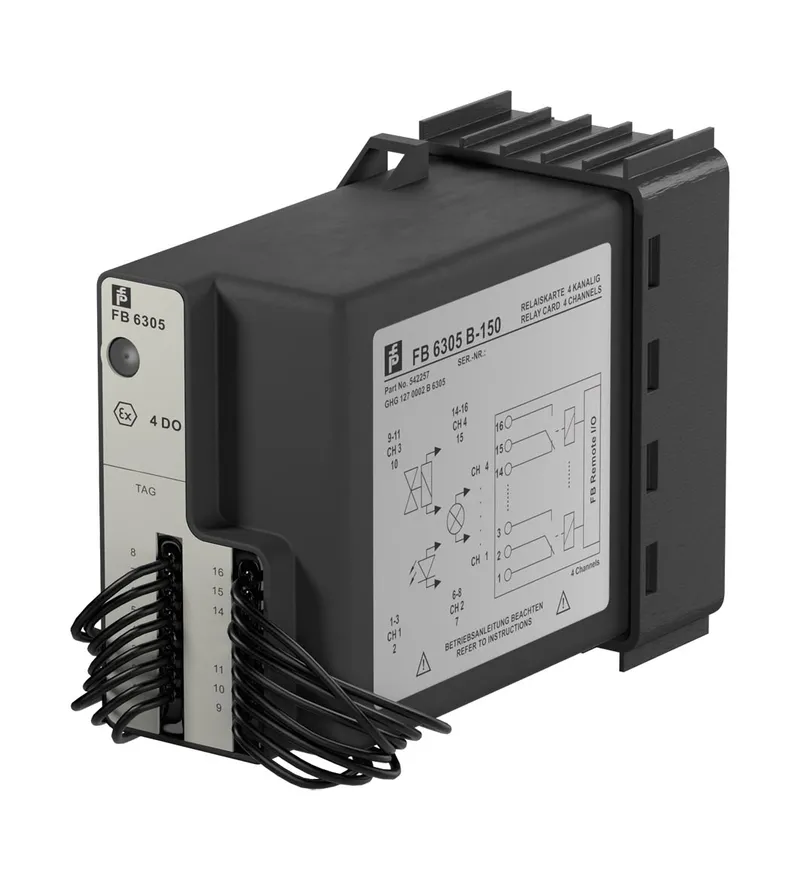

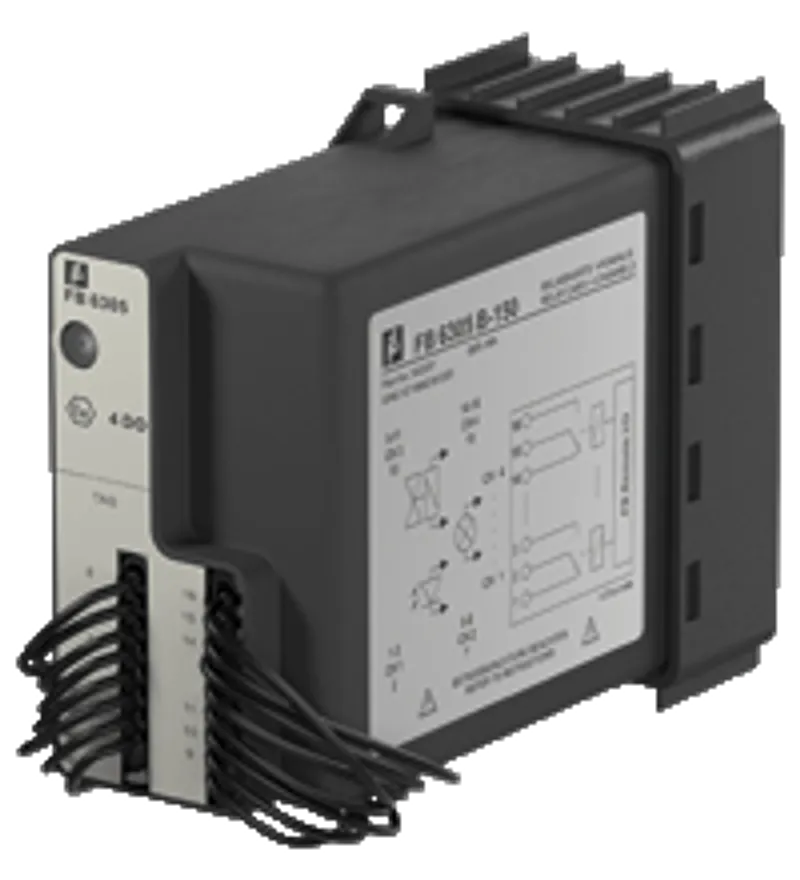

Relay output. 4-channel, Outputs wired to Ex e terminals, Installation in suitable enclosures in Zone 1 or Zone 21, Positive or negative logic selectable. Connection: backplane bus. Rated voltage: 12 V DC , only in connection with the power supplies FB92**. Power consumption: 1.2 W. Connection: backplane bus. Interface: manufacturer-specific bus to standard com unit. Number of channels: 4. Connection: wire ends 1/9 (white), 2/10 (brown), 3/11 (green), 4/12 (yellow), 5/13 (grey), 6/14 (pink), 7/15 (blue), 8/16 (red). Minimum load: 1 V , 1 mA. Relay: . Switching voltageDC: 30 V , AC: 230 VSwitching current1 A DC / AC resistive loadSwitching power30 W , AC: 250 VAElectrical life0.1 mio. cycles: . Switching voltage: DC: 30 V , AC: 230 V. Switching current: 1 A DC / AC resistive load. Switching power: 30 W , AC: 250 VA. Electrical life: 0.1 mio. cycles. Response time: 20 ms (depending on bus cycle time). Contact Material: AgPd gold plated. Watchdog: within 0.5 s the device goes in safe state, e.g. after loss of communication. LED indicator: LED green: supply LED red: communication fault. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1: . Directive 2014/30/EU: EN 61326-1. Low voltage: . Directive 2006/95/ECEN 61010-1: . Directive 2006/95/EC: EN 61010-1. Electromagnetic compatibility: NE 21. Degree of protection: IEC 60529. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 95 % non-condensing. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 50 m/s2, number of shock directions 6, number of shocks per direction 100. Vibration resistance: frequency range 5 ... 500 Hz, amplitude 5 ... 13.2 Hz ± 1.5 mm, 13.2 ... 100 Hz 1g, sweep rate 1 octave/min, duration 10 sweeps 5 Hz - 100 Hz - 5 Hz. Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20 (module) , a separate housing is required acc. to the system description. Connection: wire ends or shielded cable tailwiring connection: separately covered Ex e terminals required. Mass: approx. 750 g. Dimensions: 57 x 107 x 132 mm (2.2 x 4.2 x 5.2 inch). EC-Type Examination Certificate: PTB 97 ATEX 1074 U. Group, category, type of protection II 2 G Ex d IIC Gb: . Group, category, type of protection: II 2 G Ex d IIC Gb. Galvanic isolation: . Output/power supply, internal bussafe electrical isolation acc. to EN 61010-1: . Output/power supply, internal bus: safe electrical isolation acc. to EN 61010-1. Directive conformity: . Directive 2014/34/EUEN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006: . Directive 2014/34/EU: EN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006. ATEX approval: BVS 11 ATEX E 093X. EAC approval: Russia: RU C-IT.MIII06.B.00129. Marine approval: . Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV: . Lloyd Register: 15/20021. DNV GL Marine: TAA0000034. American Bureau of Shipping: T1450280/UN. Bureau Veritas Marine: 22449/B0 BV
Specifications
Supply
| Connection | backplane bus |
| Rated voltage | 12 V DC , only in connection with the power supplies FB92** Ur |
| Power consumption | 1.2 W |
Internal bus
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
Output
| Number of channels | 4 |
| Connection | wire ends 1/9 (white), 2/10 (brown), 3/11 (green), 4/12 (yellow), 5/13 (grey), 6/14 (pink), 7/15 (blue), 8/16 (red) |
| Minimum load | 1 V , 1 mA |
| Relay | |
| Switching voltageDC: 30 V , AC: 230 VSwitching current1 A DC / AC resistive loadSwitching power30 W , AC: 250 VAElectrical life0.1 mio. cycles | Switching voltage |
| Switching voltage | DC: 30 V , AC: 230 V |
| Switching current | 1 A DC / AC resistive load |
| Switching power | 30 W , AC: 250 VA |
| Electrical life | 0.1 mio. cycles |
| Response time | 20 ms (depending on bus cycle time) |
| Contact Material | AgPd gold plated |
| Watchdog | within 0.5 s the device goes in safe state, e.g. after loss of communication |
Indicators/settings
| LED indicator | LED green: supply LED red: communication fault |
Directive conformity
| Electromagnetic compatibility | |
| Directive 2014/30/EUEN 61326-1 | Directive 2014/30/EU |
| Directive 2014/30/EU | EN 61326-1 |
| Low voltage | |
| Directive 2006/95/ECEN 61010-1 | Directive 2006/95/EC |
| Directive 2006/95/EC | EN 61010-1 |
Conformity
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 50 m/s2, number of shock directions 6, number of shocks per direction 100 |
| Vibration resistance | frequency range 5 ... 500 Hz, amplitude 5 ... 13.2 Hz ± 1.5 mm, 13.2 ... 100 Hz 1g, sweep rate 1 octave/min, duration 10 sweeps 5 Hz - 100 Hz - 5 Hz |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
Mechanical specifications
| Degree of protection | IP20 (module) , a separate housing is required acc. to the system description |
| Connection | wire ends or shielded cable tailwiring connection: separately covered Ex e terminals required |
| Mass | approx. 750 g |
| Dimensions | 57 x 107 x 132 mm (2.2 x 4.2 x 5.2 inch) |
Data for application in connection with hazardous areas
| EC-Type Examination Certificate | PTB 97 ATEX 1074 U |
| Group, category, type of protection II 2 G Ex d IIC Gb | Group, category, type of protection |
| Group, category, type of protection | II 2 G Ex d IIC Gb |
| Galvanic isolation | |
| Output/power supply, internal bussafe electrical isolation acc. to EN 61010-1 | Output/power supply, internal bus |
| Output/power supply, internal bus | safe electrical isolation acc. to EN 61010-1 |
| Directive conformity | |
| Directive 2014/34/EUEN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006 | Directive 2014/34/EU |
| Directive 2014/34/EU | EN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006 |
International approvals
| ATEX approval | BVS 11 ATEX E 093X |
| EAC approval | Russia: RU C-IT.MIII06.B.00129 |
| Marine approval | |
| Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV | Lloyd Register |
| Lloyd Register | 15/20021 |
| DNV GL Marine | TAA0000034 |
| American Bureau of Shipping | T1450280/UN |
| Bureau Veritas Marine | 22449/B0 BV |
