Pepperl Fuchs CON GL5
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CON GL5 be shipped?
CON GL5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CON GL5 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CON GL5 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CON GL5, subject to availability and destination.

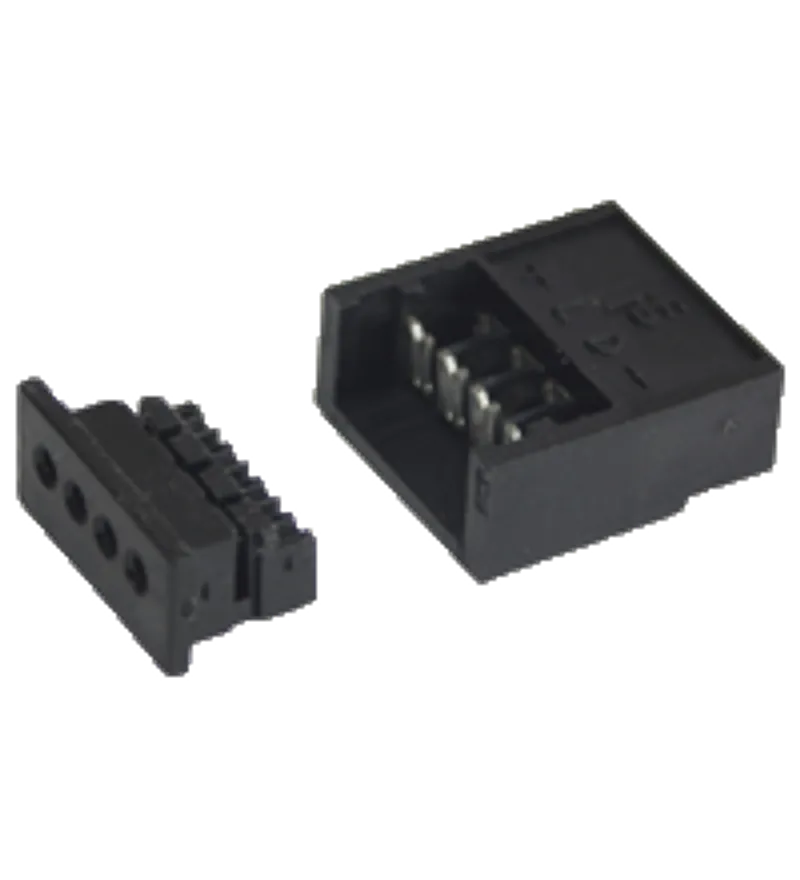

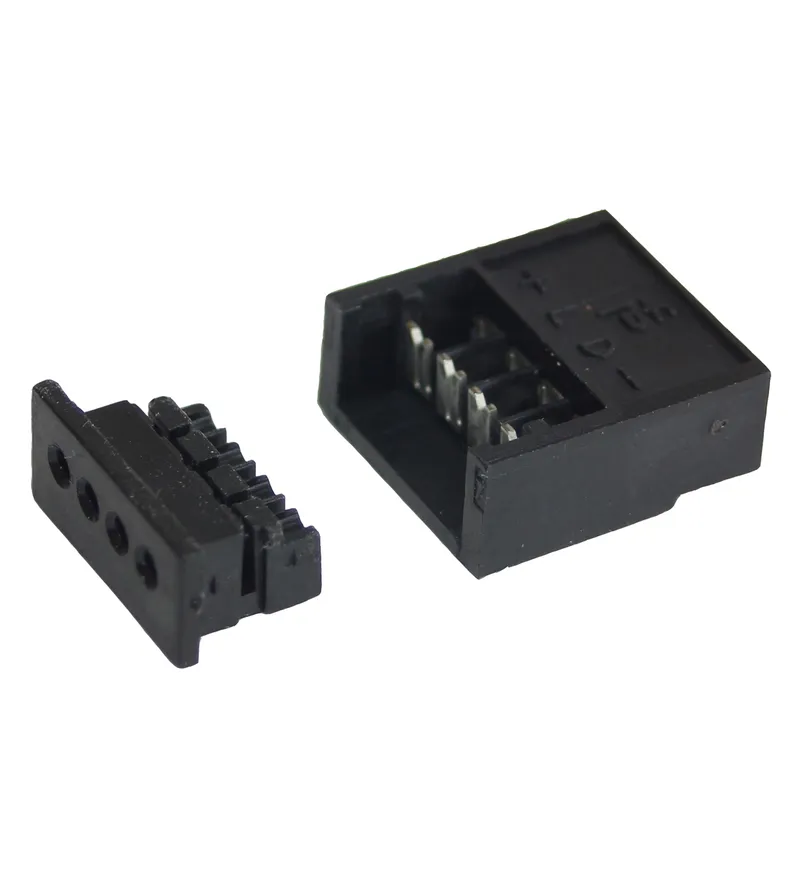

Connector. Connector for series GL5 slot sensors, Insulation displacement connection. Number of pins: 4. Construction type: Socket, straight. Nominal voltage: 60 V DC / 48 V AC. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP20. Connection: Socket, straight , 4-pin. Material: . BodyPBTCore insolationPVC: . Body: PBT. Core insolation: PVC. Single core: . Diameterconductor: Ø0.40 mm, core insulation: Ø0.70 mm conductor: Ø0.50 mm, core insulation: Ø1.00 mm conductor: Ø0.65 mm, core insulation: Ø1.15 mm (max. 1.25 mm)Core cross-section0.05 ... 0.14 mm2 , 30 ... 26 AWG: . Diameter: conductor: Ø0.40 mm, core insulation: Ø0.70 mm conductor: Ø0.50 mm, core insulation: Ø1.00 mm conductor: Ø0.65 mm, core insulation: Ø1.15 mm (max. 1.25 mm). Core cross-section: 0.05 ... 0.14 mm2 , 30 ... 26 AWG. Mass: 25 g
Specifications
General specifications
| Number of pins | 4 |
| Construction type | Socket, straight |
Electrical specifications
| Nominal voltage | 60 V DC / 48 V AC |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | Socket, straight , 4-pin |
| Material | |
| BodyPBTCore insolationPVC | Body |
| Body | PBT |
| Core insolation | PVC |
| Single core | |
| Diameterconductor: Ø0.40 mm, core insulation: Ø0.70 mm conductor: Ø0.50 mm, core insulation: Ø1.00 mm conductor: Ø0.65 mm, core insulation: Ø1.15 mm (max. 1.25 mm)Core cross-section0.05 ... 0.14 mm2 , 30 ... 26 AWG | Diameter |
| Diameter | conductor: Ø0.40 mm, core insulation: Ø0.70 mm conductor: Ø0.50 mm, core insulation: Ø1.00 mm conductor: Ø0.65 mm, core insulation: Ø1.15 mm (max. 1.25 mm) |
| Core cross-section | 0.05 ... 0.14 mm2 , 30 ... 26 AWG |
| Mass | 25 g |
