Pepperl Fuchs 41FY2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 41FY2 be shipped?
41FY2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 41FY2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 41FY2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 41FY2, subject to availability and destination.

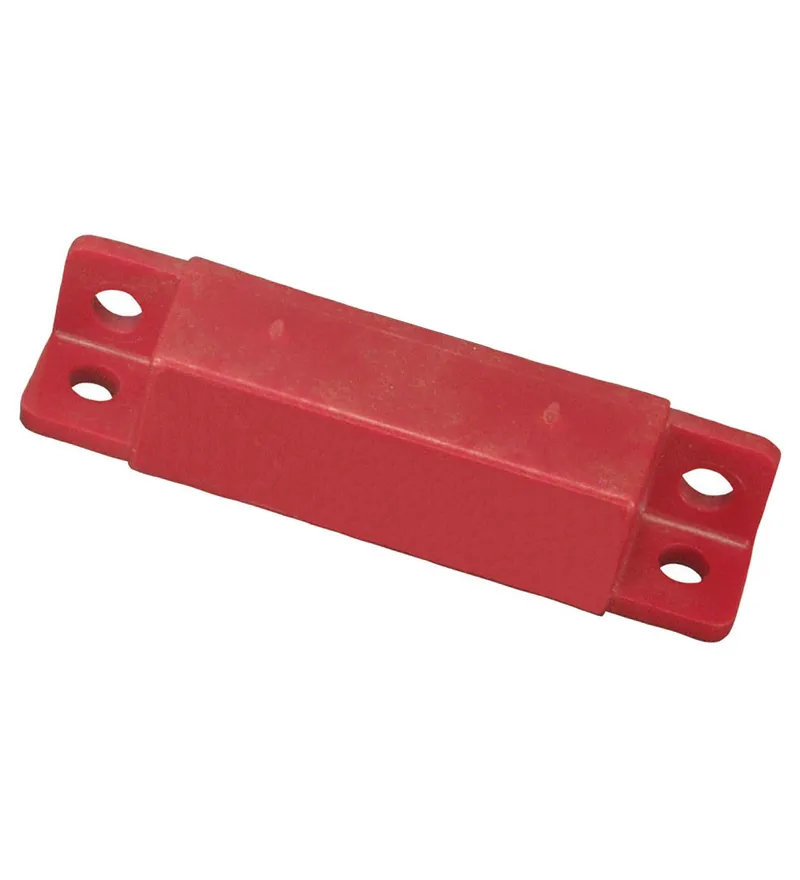

Magnetic Actuation. Rated operating distance: 8 ... 19 mm. Switching state indicator: NO contact. Standards: EN 60947-5-2. UL approval: cULus Listed Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Housing material: Polycarbonate. Sensing face: Polycarbonate. Degree of protection: IP67. Dimensions: . Width16 mmDepth16 mmLength74.2 mm: . Width: 16 mm. Depth: 16 mm. Length: 74.2 mm
Specifications
General specifications
| Rated operating distance | 8 ... 19 mm sn |
Nominal ratings
| Switching state indicator | NO contact |
Standard conformity
| Standards | EN 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA |
Ambient conditions
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) |
Mechanical specifications
| Housing material | Polycarbonate |
| Sensing face | Polycarbonate |
| Degree of protection | IP67 |

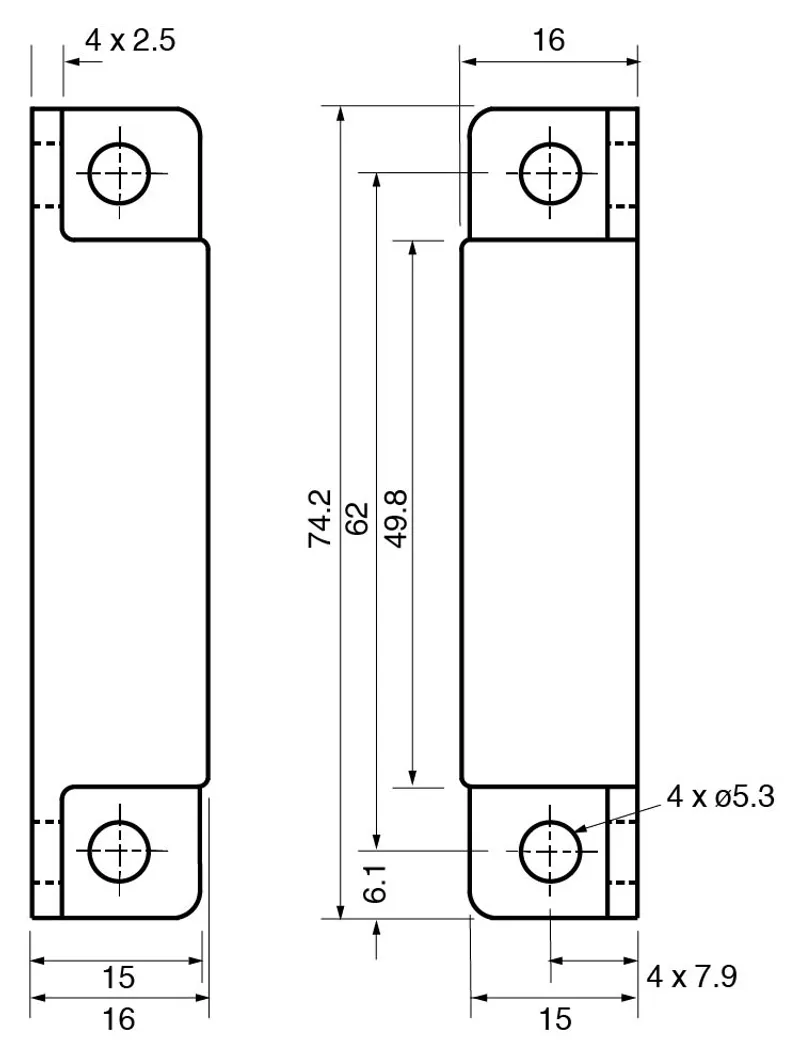

| Dimensions | |
| Width16 mmDepth16 mmLength74.2 mm | Width |
| Width | 16 mm |
| Depth | 16 mm |
| Length | 74.2 mm |
