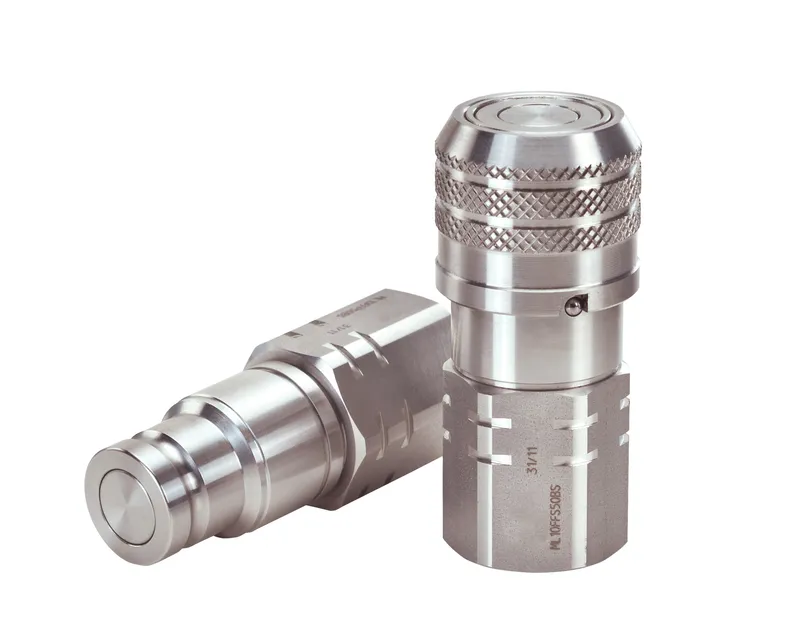

COUPLING,MLFF,F,1",316,-20NPT,FKM

Name: COUPLING,MLFF,F,1",316,-20NPT,FKM
Brand: Danfoss (Drives)
SKU: ML25FFS125143

MPN: ML25FFS125143 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ML25FFS125143 be shipped?

ML25FFS125143 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ML25FFS125143 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ML25FFS125143 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ML25FFS125143, subject to availability and destination.

Danfoss COUPLING,MLFF,F,1",316,-20NPT,FKM, manufacturer part number ML25FFS125143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146157898
Angle shape	Straight
Body size	1"
Brand	Danfoss
Compliances	PED 2014/68 EU Article 4.3, REACH
End size 1	-20
End Type 1	Female Pipe (NPT)
Hex size 1 IN	2.170
Item type	Female half
Latch type	Push to connect
Product length in	4.070
Product material	316 Stainless steel
Safety locking mechanism	Sleeve lock
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Thread size 1	1 1/4-11 1/2 NPTF
Torque lbs-ft	58.50
Valve type	2 way
Working pressure max psi	3625
Working temperature max F	392
Working temperature min F	-4
