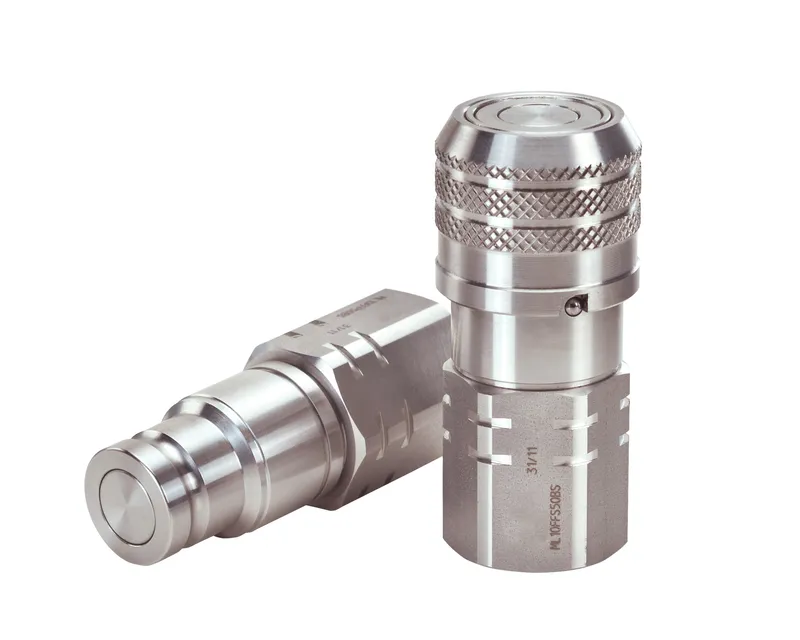

COUPLING,MLFF,F,3/4,316,-12BSP,FKM

Name: COUPLING,MLFF,F,3/4,316,-12BSP,FKM
Brand: Danfoss (Drives)
SKU: ML19FFS75BS143

MPN: ML19FFS75BS143 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ML19FFS75BS143 be shipped?

ML19FFS75BS143 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ML19FFS75BS143 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ML19FFS75BS143 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ML19FFS75BS143, subject to availability and destination.

COUPLING,MLFF,F,3/4,316,-12BSP,FKM - ML19FFS75BS143

Specifications

EAN/UPC	678146208446
Angle shape	Straight
Body size	3/4
Brand	Danfoss
Compliances	PED 2014/68 EU Article 4.3, REACH
End size 1	-12
End Type 1	Female BSPP port washer seal.
Hex size 1 IN	1.610
Item type	Female half
Latch type	Push to connect
Product material	316 Stainless steel
Safety locking mechanism	Sleeve lock
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Thread size 1	G 3/4
Torque lbs-ft	48.30
Valve type	2 way
Working pressure max psi	3625
Working temperature max F	392
Working temperature min F	-4
