HOSE-BOS,H285,-16,FOOD/BEV,SIL,200FT
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can H28516-200R be shipped?
H28516-200R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up H28516-200R in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for H28516-200R and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H28516-200R, subject to availability and destination.

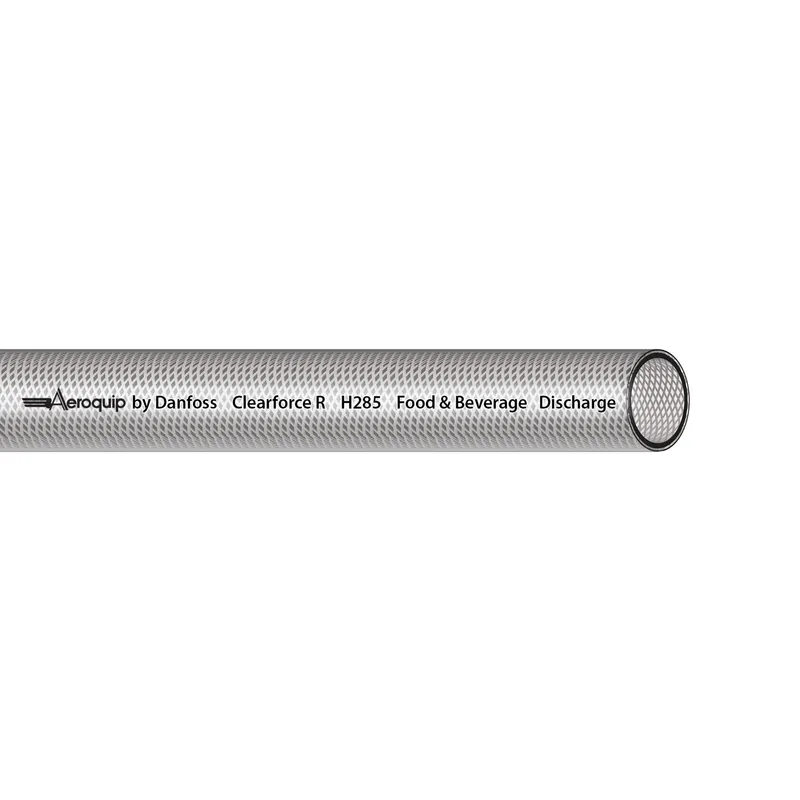

Danfoss HOSE-BOS,H285,-16,FOOD/BEV,SIL,200FT, manufacturer part number H28516-200R. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 725975738900 |
| Abrasion resistance | Premium |
| Application | Fertilizers and pesticides |
| Brand | Boston by Danfoss |
| Burst pressure (bar) | 34 |
| Burst pressure (psi) | 495 |
| Certifications | NSF-51 |
| Color | Silver |
| Compliances | FDA Approved |
| Conductivity | Non-conductive |
| Construction | 1 Ply braid |
| Cover material | Polyvinyl chloride (PVC) |
| Inside diameter (inch) | 1.00 |
| Inside diameter (mm) | 25.40 |
| Lay line style | Ink jet |
| Length (in) | 2400.00000 |
| Length (mm) | 60960.00000 |
| Outside diameter (inch) | 1.29 |
| Outside diameter (mm) | 32.80 |
| Package form | Reel |
| Product height in | 1.000 |
| Product height mm | 25.400 |
| Product width in | 1.000 |
| Product width mm | 25.400 mm |
| Qualified hose fittings | E Series |
| Reinforcement material | Fabric |
| Series | H285 Series |
| Size | -16 |
| Tube material | Polyvinyl chloride (PVC) |
| Working pressure max (bar) | 9 |
| Working pressure max (psi) | 131 |
| Working temperature max (C) | 66 |
| Working temperature max (F) | 150.0 |
