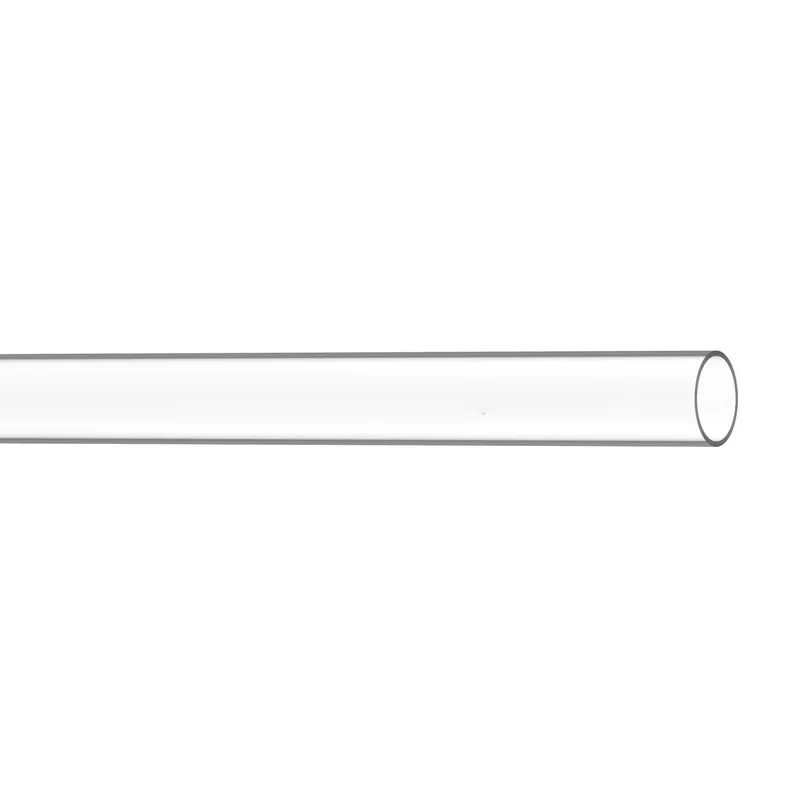

CLEARFORCE-NR PVC CLR 1-3/16-100
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can H160305-100 be shipped?
H160305-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up H160305-100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for H160305-100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H160305-100, subject to availability and destination.
Danfoss CLEARFORCE-NR PVC CLR 1-3/16-100, manufacturer part number H160305-100. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Abrasion resistance | Premium |
| Brand | Boston by Danfoss |
| Burst pressure (bar) | 11 |
| Burst pressure (psi) | 165 |
| Certifications | FDA Approved |
| Color | Clear |
| Compliances | NSF-51 |
| Construction | Extruded |
| Cover material | Polyvinyl chloride (PVC) |
| Fixed Length | 30.500 |
| Inside diameter (inch) | 0.19 |
| Inside diameter (mm) | 4.83 |
| Outside diameter (inch) | 0.31 |
| Outside diameter (mm) | 7.87 |
| Qualified hose fittings | Barbed inserts |
| Series | H160 Series |
| Size | -5 |
| Tube material | Polyvinyl chloride (PVC) |
| Working pressure max (bar) | 4 |
| Working pressure max (psi) | 55 |
| Working temperature max (C) | 66 |
| Working temperature max (F) | 150.0 |
| Working temperature min (C) | -9 |
| Working temperature min (F) | 15.0 |
