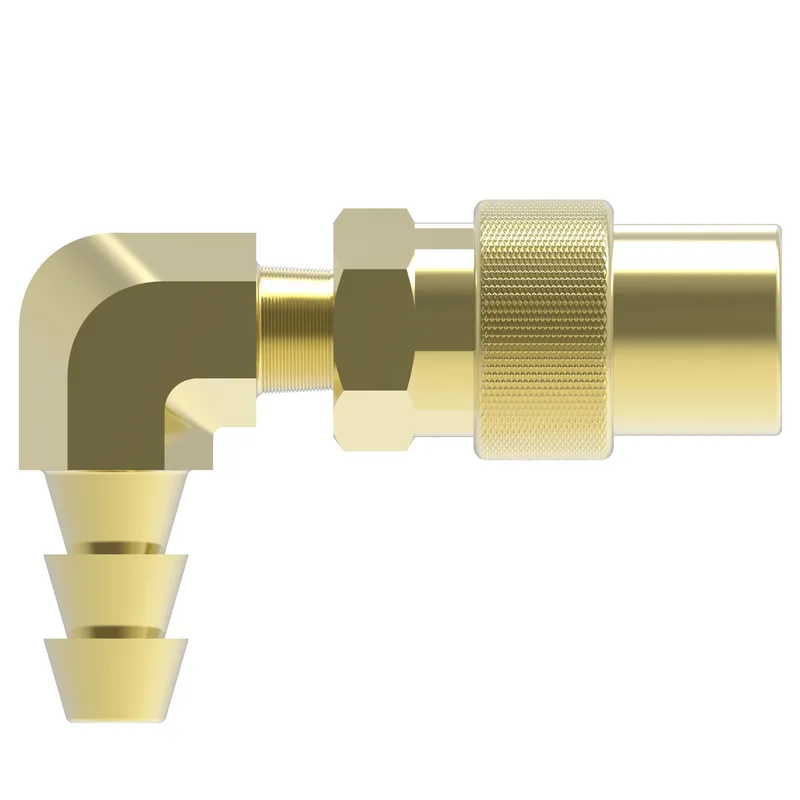

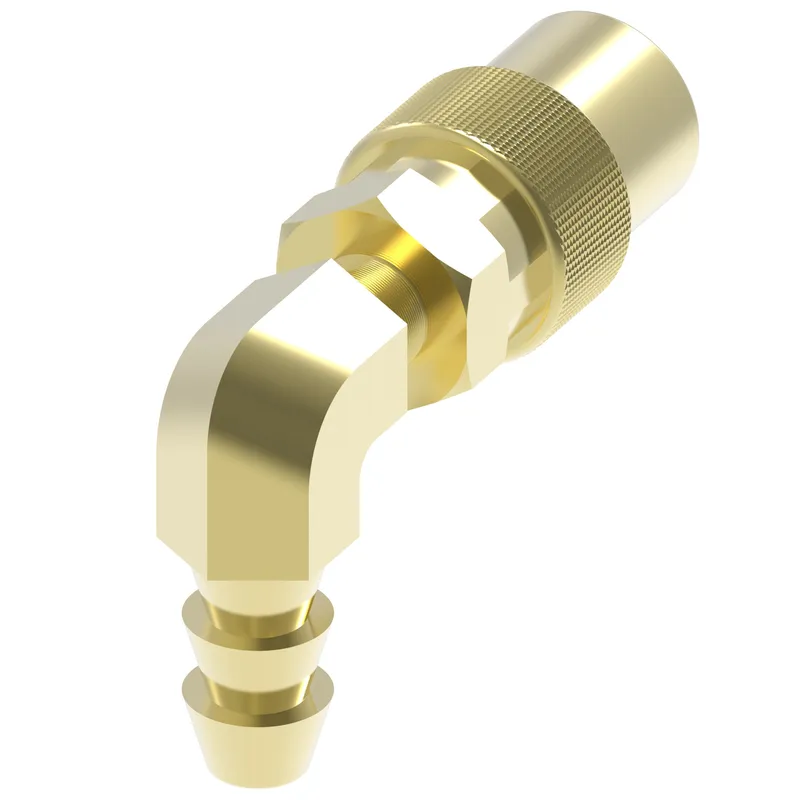

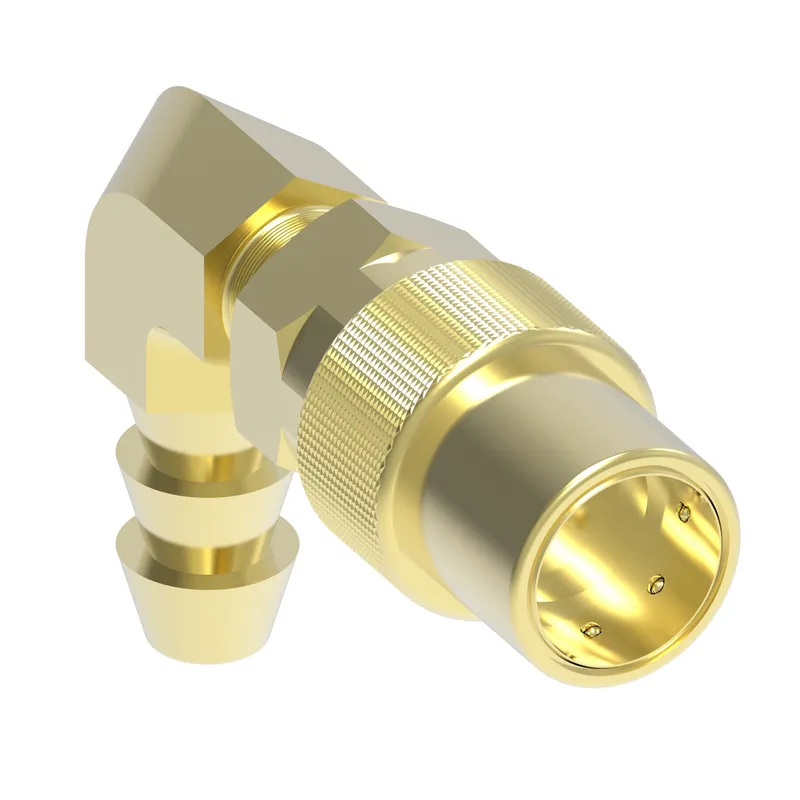

Cplng, FLO-TEMP SERIES Female

Name: Cplng, FLO-TEMP SERIES Female
Brand: Danfoss (Drives)
SKU: FTS214HP

MPN: FTS214HP · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FTS214HP be shipped?

FTS214HP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FTS214HP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FTS214HP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FTS214HP, subject to availability and destination.

Cplng, FLO-TEMP SERIES Female - FTS214HP

Specifications

EAN/UPC	678146032157
Angle shape	90 Degree
Body size	1/4
Brand	Danfoss
Burst pressure min bar	55
Burst pressure min psi	800
Connection style	Manual connect
End Type 1	Female Push to Connect
End Type 2	Line/hose/tube
Flow rate GPM	2.20
Flow rate LPM	8.33
Fluid compatibility	Gas, Oil, Water
Item type	Female half
Latch type	Push/pull
Product material	Brass
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	Straight thru
Working pressure max psi	200
Working pressure max BAR	14.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
