adapter, STC

Name: adapter, STC
Brand: Danfoss (Drives)
SKU: FF3286-1808S

MPN: FF3286-1808S · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FF3286-1808S be shipped?

FF3286-1808S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FF3286-1808S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FF3286-1808S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF3286-1808S, subject to availability and destination.

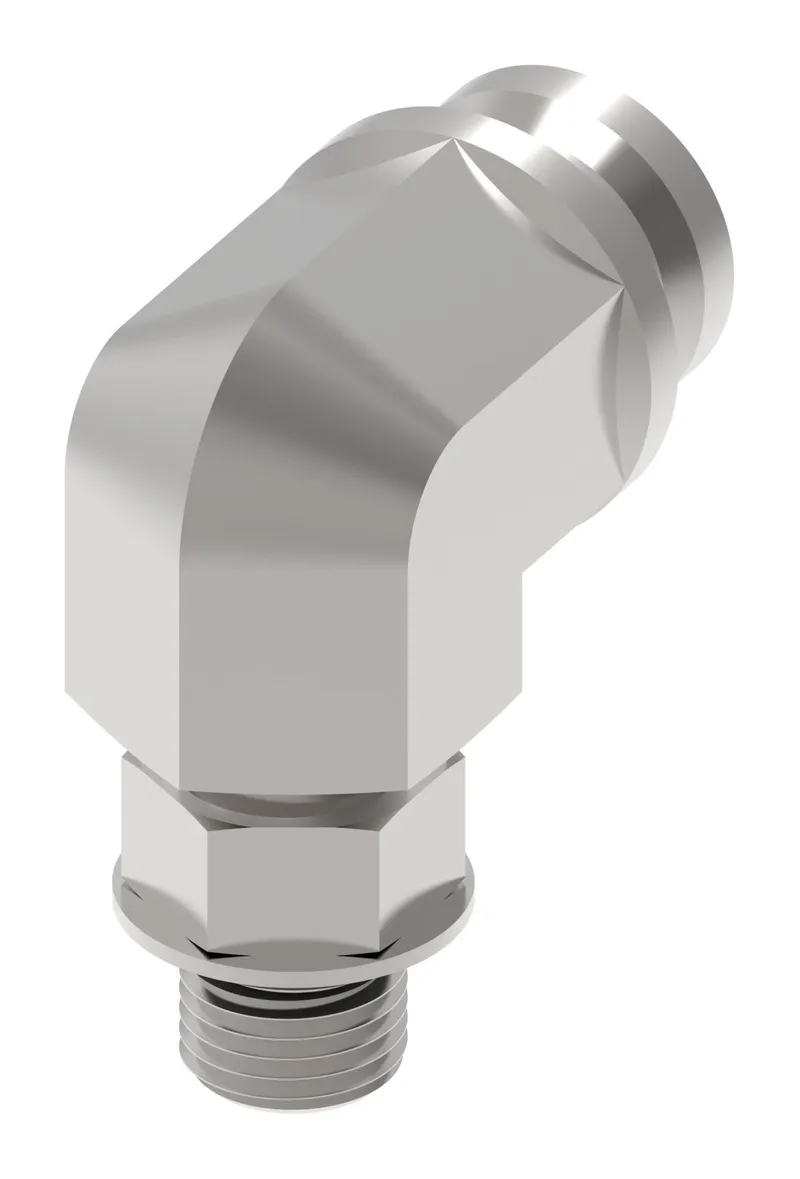

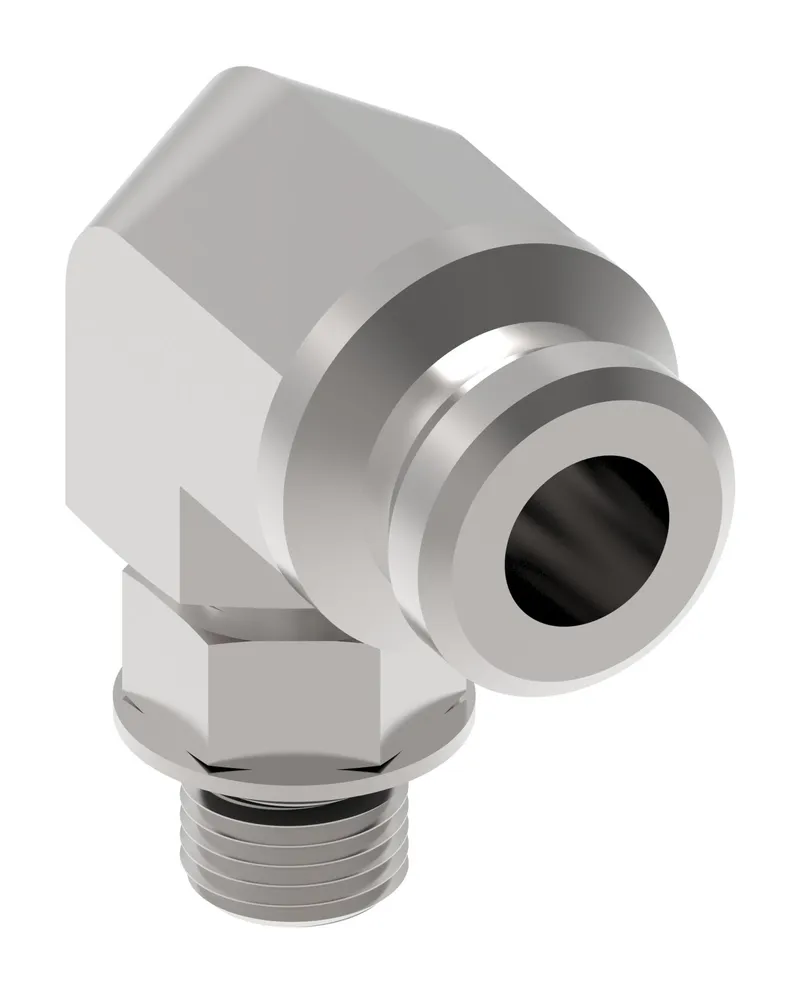

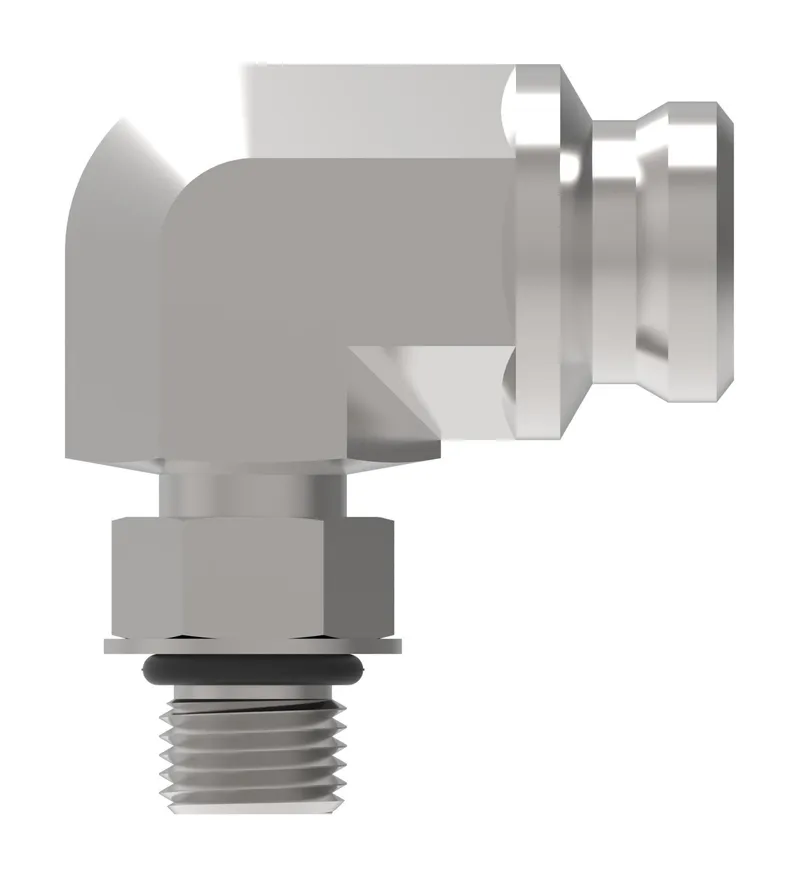

adapter, STC - FF3286-1808S

Specifications

EAN/UPC	678146109248
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Drop dimension IN	1.610
Drop dimension MM	40.90
End Type 1	Female ORFS swivel
End Type 2	Female STC connector
Finish plating	Dura-Kote
Hex size 1 IN	0.870
Hex size 1 MM	22.100
Hex size 2 IN	0.940
Hex size 2 MM	23.900
Product material	Carbon steel
Thread sealant	No
Thread size 1	M18x1.5
Tube outside diameter 1 IN	0.480
Tube outside diameter 1 MM	12.2
Tube outside diameter 2 IN	0.410
Tube outside diameter 2 MM	10.4
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65
